Аудио изход:
1 line out mini-jack (stereo) (Codec Plus), 1 RCA output for subwoofer (Quad Camera), 2 HDMI outputs, HDMI input #1 supports Audio Return Channel (ARC): Audio output to Quad Camera speakers

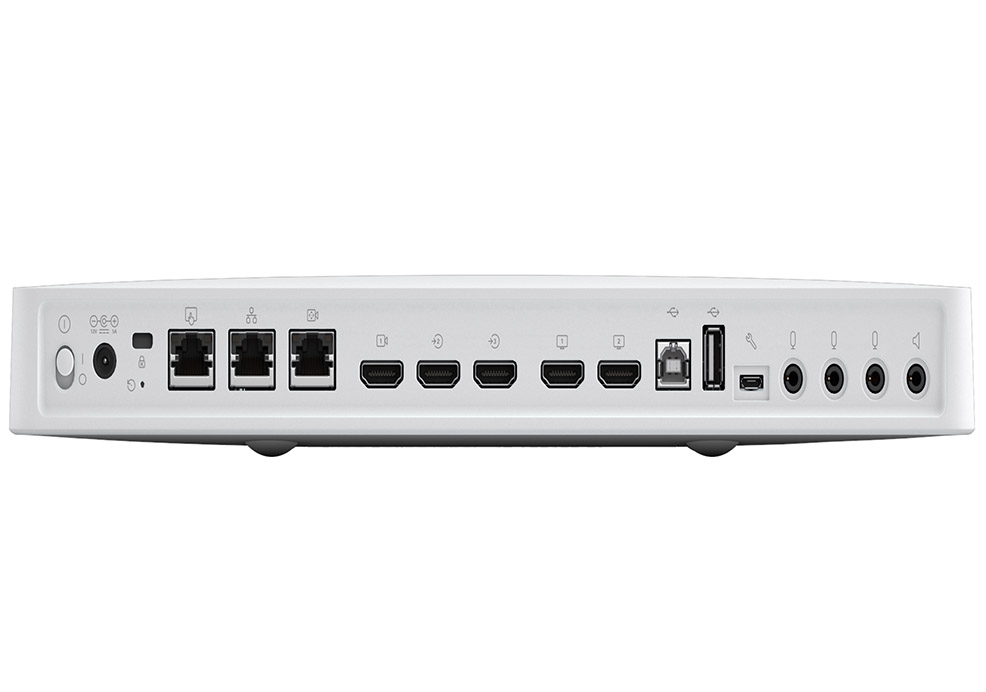

Мрежови интерфейси:
One Ethernet (RJ-45) 10/100/1000 for LAN One Ethernet (RJ-45) 10/100/1000 for direct pairing with camera One Ethernet (RJ-45) 10/100/1000 with Power over Ethernet (PoE) for direct pairing with Touch 10 Wi-Fi 802.11a/b/g/n/ac Bluetooth 4.0 LE
Консумация, W:
Average 20 W, peak 70W
Аудио вход:
3 x microphones (4-pin minijack), 2 x audio in from HDMI
Резолюция:
5120 x 2880 pixels
Мултисайт:
Adaptive SIP/H.323 MultiSite: 3-way resolution up to 1080p30 + content up to 4Kp5, 4-way resolution up to 720p30 + content up to 4Kp5 Full individual audio and video transcoding H.323/SIP/VoIP in the same conference
Протоколи:
H.323 SIP Cisco Spark

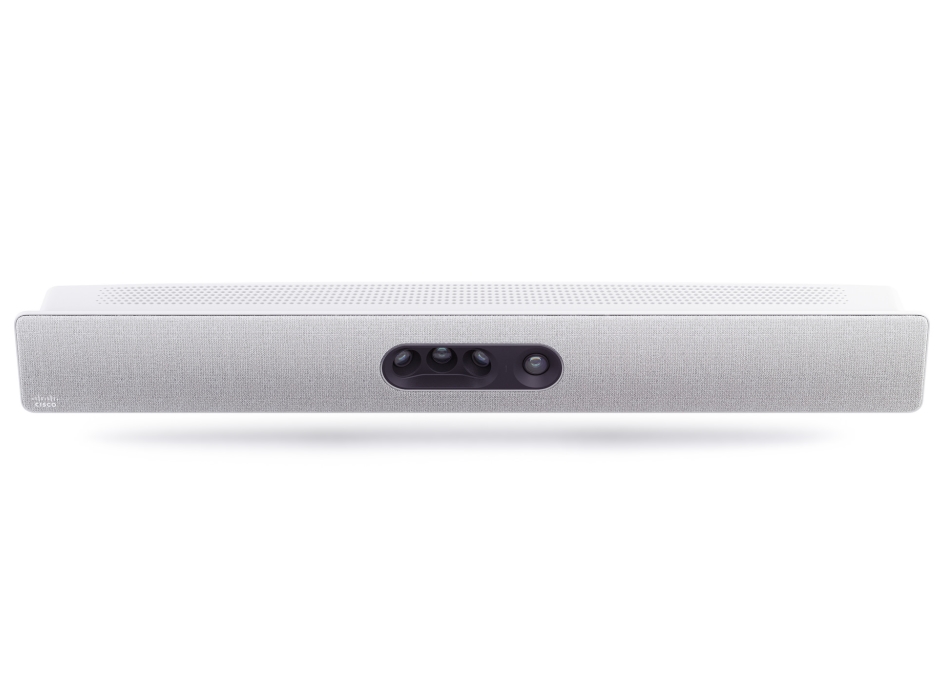

Камера:
5K Ultra HD camera 15.1 MP image sensor 1/1.7 CMOS 5x digital zoom f/2.0 aperture 83° horizontal field of view and 51.5° vertical field of view Auto focus, brightness, and white balance Focus distance 1 m to infinity Audio + face detect
Други интерфейси:
USB 2.0 port, microUSB, factory reset pinhole
Аудио стандарти:
G.711, G.722, G.722.1, G.729, AAC-LD, and Opus
Видео стандарти:
H.264, H.265
Размер на екрана, inch:
-
Размери (Ш, Д, В), cm:
95.0 х 10.3 х 12.0 (Quad Camera), 35.9 x 14.3 x 4.3 (Codec Plus)
