Разширителен слот:
4-slots (x16, x8, x16, x8) as standard NOTE: PCIe slots 5 – 8 require the second optional processor
Захранване:
1x 800W HPE FlexSlot Power Supply
Дисков контролер:
P408i-a NOTE: 8-Port Modular Smart Array. Supports SAS/SATA with performance RAID NOTE: Smart Storage battery included
Твърд диск, GB:
None ship as standard
Брой поддържани дискове:
8 SFF chassis with optional SFF HDD Cage Kit (874568-B21), upgradeable to 24 SFF
Порт за отдалечено управление:
HPE iLO Remote Management Network Port - 1 Gb Dedicated

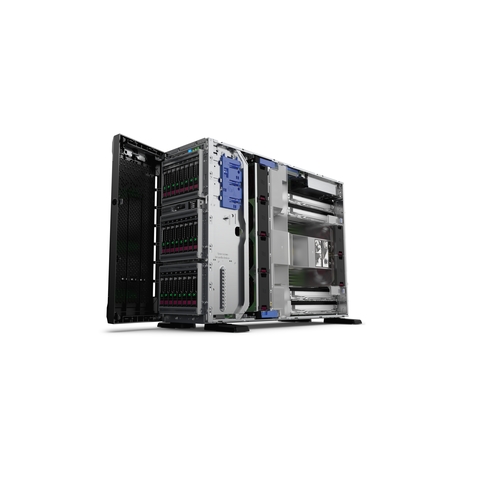

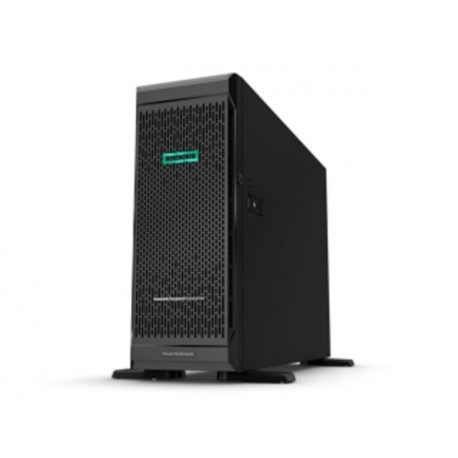

Форм-фактор:
4U Tower with rack conversion capability
Памет, GB:
16GB RDIMM SR 2933 MT/s (1x 16GB) NOTE: running at 2400 MT/s per processor support
Памет, слотове:
24 DIMM slots, DDR4 Smart Memory
Съвместими операционни системи:
Windows Server 2012 R2, Windows Server 2016, VMware ESXi 6.0 U3, VMware ESXi 6.5 and U1, Red Hat Enterprise Linux (RHEL) 6.9 and 7.3, SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2, Clear OS, Cent OS
Софтуер за управление:
HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced, and HPE OneView Advanced (require licenses)
Процесор:
Intel Xeon Silver 4210 (10C, 2.2GHz, 13.75MB Cache, 85W)
Интерфейс:
1 Serial, 1 VGA, 1 Display Port, Embedded Network Ports - 4 x 1 Gb ports, 1 Front iLO Service Port, 1 Micro SD (internal) slot, 6 USB 3.0/2.0: 2 front (USB 3.0), 2 rear (USB 3.0), 2 internal (1 x USB 3.0 & 1 x USB 2.0)
Мрежа:
Embedded 4-Port 1GbE HPE Ethernet 1Gb 4-port 369i Adapter NOTE: embedded 4x1GbE HPE Ethernet 1Gb 4-port 369i Adapter does not support speeds of 100MB/s and 10MB/s
