Комутатор Zyxel XGS3700-24HP, 24 port, Layer 2/3 G ... igabit Datacenter Switch, PoE, 4x 10G Виж още

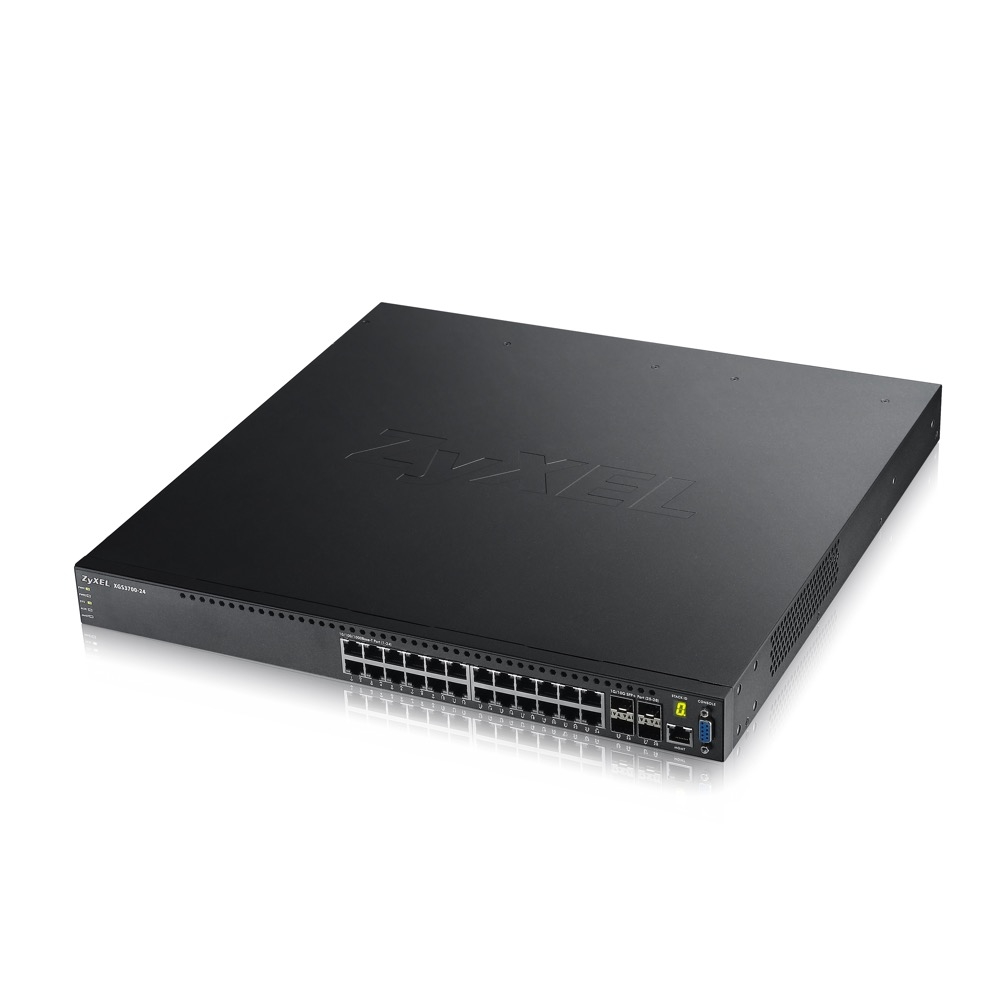

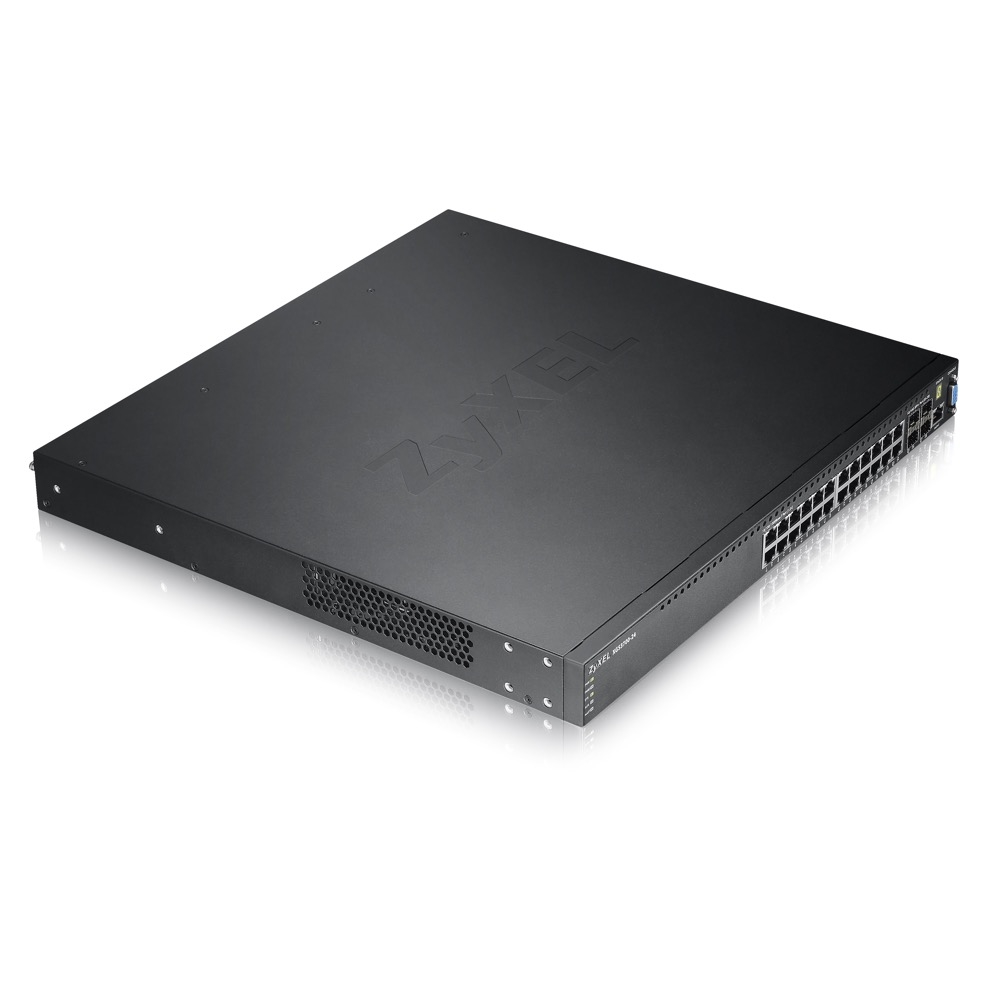

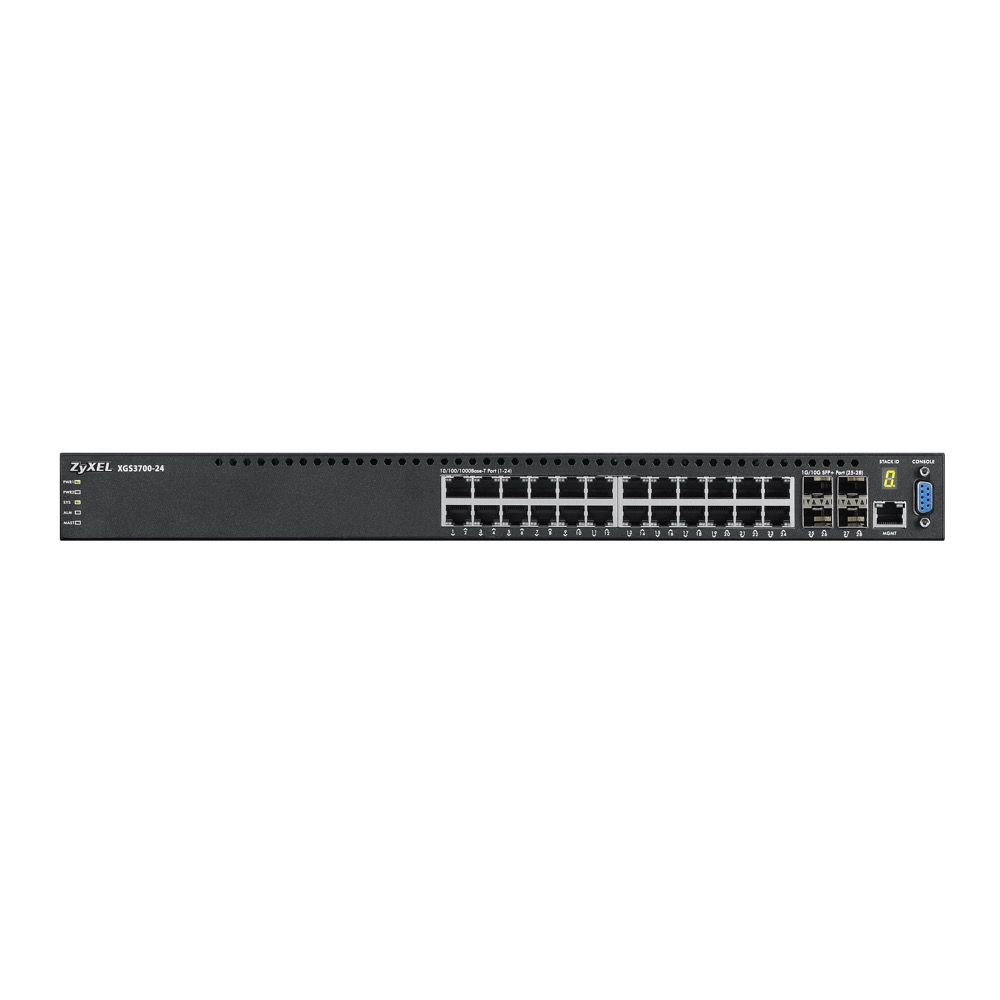

Name: Комутатор Zyxel XGS3700-24HP, 24 port, Layer 2/3 Gigabit Datacenter Switch, PoE, 4x 10G
Brand: ZyXEL
SKU: ZyXEL-XGS3700-24HP-ZZ0101F
Price: 2269.75000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: ZyXEL-XGS3700-24HP-ZZ0101F

komutator-zyxel-xgs3700-24hp-24-port-layer-2-3-g-zyxel-xgs3700-24hp-zz0101f

0 ревюта | 0 въпроса

Uplink портове 4x 10G SFP+
Сигурност 802.1X Port security MAC authentication Layer 2 MAC filtering Layer 3 IP filtering Layer 4 TCP/UDP socket filtering BPDU transparency Static MAC forwarding Multiple RADIUS servers Multiple TACACS+ servers SSH v1/v2 SSL
Захранване External (100 - 240 V AC, 50/60 Hz) Max. power consumptionL Single PSU: 57.8 W, Dual PSU: 70.3 W
Общ брой портове 28
Гаранция 99 месеца

Сравни

2723.70 лв.

(-17%)

1392.61 €

2269.75 лв.

1160.50 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

L2 мрежови стандарти:

IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3aq IEEE 802.3az IEEE 802.3x IEEE 802.3ad IEEE 802.3ah IEEE 802.1ag IEEE 802.1ab etc.

Памет (Flash, RAM):

32/512 MB (Flash/RAM), 2 MB Buffer

Uplink портове:

4x 10G SFP+

Капацитет за маршрутизиране/превключване, Gbps:

128 Gbps

Пропускателна способност, Mpps:

95 Mpps

L3 мрежови стандарти:

ICMP IGMP L3 forwarding table: Max. 1 K IPv4 entries Max. 512 IPv6 entries

Fans:

Свободни (10GB) слотове:

IPv6 functionality:

IPv6 over Ethernet (RFC 2464), IPv6 addressing architecture (RFC 4291), Dual stack (RFC 4213), ICMPv6 (RFC 4443), Path MTU (RFC 1981) Neighbor discovery (RFC 4861) DHCPv6 relay Default DHCP client mode

MAC адреси:

16 K

Сигурност:

802.1X Port security MAC authentication Layer 2 MAC filtering Layer 3 IP filtering Layer 4 TCP/UDP socket filtering BPDU transparency Static MAC forwarding Multiple RADIUS servers Multiple TACACS+ servers SSH v1/v2 SSL

Основни портове, тип:

24x 100/1000Base-T

VLAN (брой, стандарти):

802.1Q static VLANs/dynamic VLANs: 1 K/4 K Port-based VLAN Protocol-based VLAN Private VLAN IP subnet-based VLAN VLAN trunking VLAN translation VLAN ingress filtering 802.1ad VLAN stacking (Q-in-Q) LACP algorithm of source/destination IP GV

Суич, тип:

Fixed Port

Stackable:

Robust softwares include stacking, cross-stack LACP, ECMP and VRRP Physical stacking up to 8 units and 384 Gigabit ports through 2 standard 10G SFP+ ports 802.1ad VLAN stacking (Q-in-Q)

Захранване:

External (100 - 240 V AC, 50/60 Hz) Max. power consumptionL Single PSU: 57.8 W, Dual PSU: 70.3 W

Опция за монтаж:

Rackmount

Управление:

Web Management through Console, Telnet, SNMP Firmware upgrade by FTP iStacking CLI (Cisco-like) DHCP NTP Port mirroring sFlow Multiple logins supported Configure clone

Routing:

Static (64 Routing table, Policy-based route, IP port moving, Multiple default route)

Размери (Ш, Д, В), mm:

440 x 437 x 40

QoS:

8 hardware queues per port 802.1p queuing method: SPQ/WRR/ WFQ Storm control: Broadcast, multicast, unknown unicast (DLF) Rate limiting Bandwidth control 802.3x flow control 802.1p TRTCM DSCP

Общ брой портове:

Гаранция:

99 месеца

Power Over Ethernet (PoE):

PoE PoE power budget: 460W (Single PSU) / 1000W (Dual PSU)

Описание

Комутатор Zyxel XGS3700-24HP, 24 port, Layer 2/3 G

Виж повече caret
