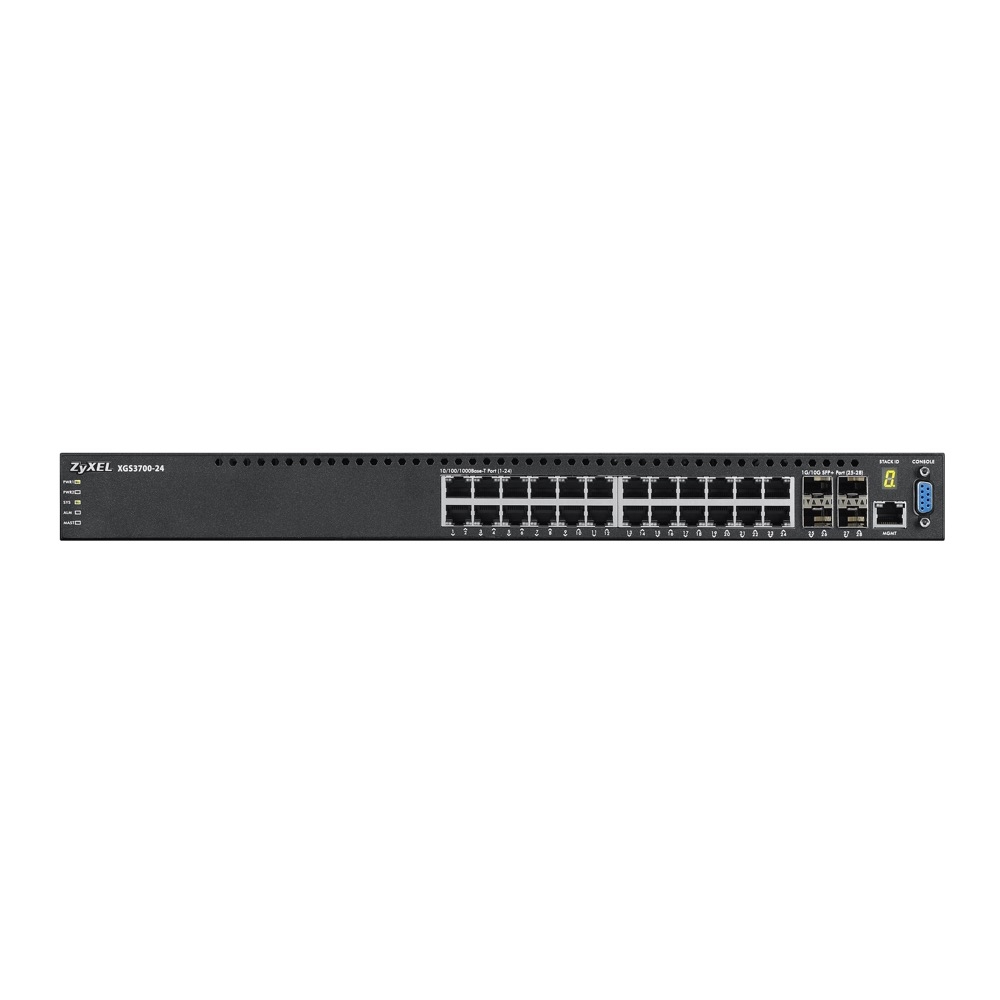

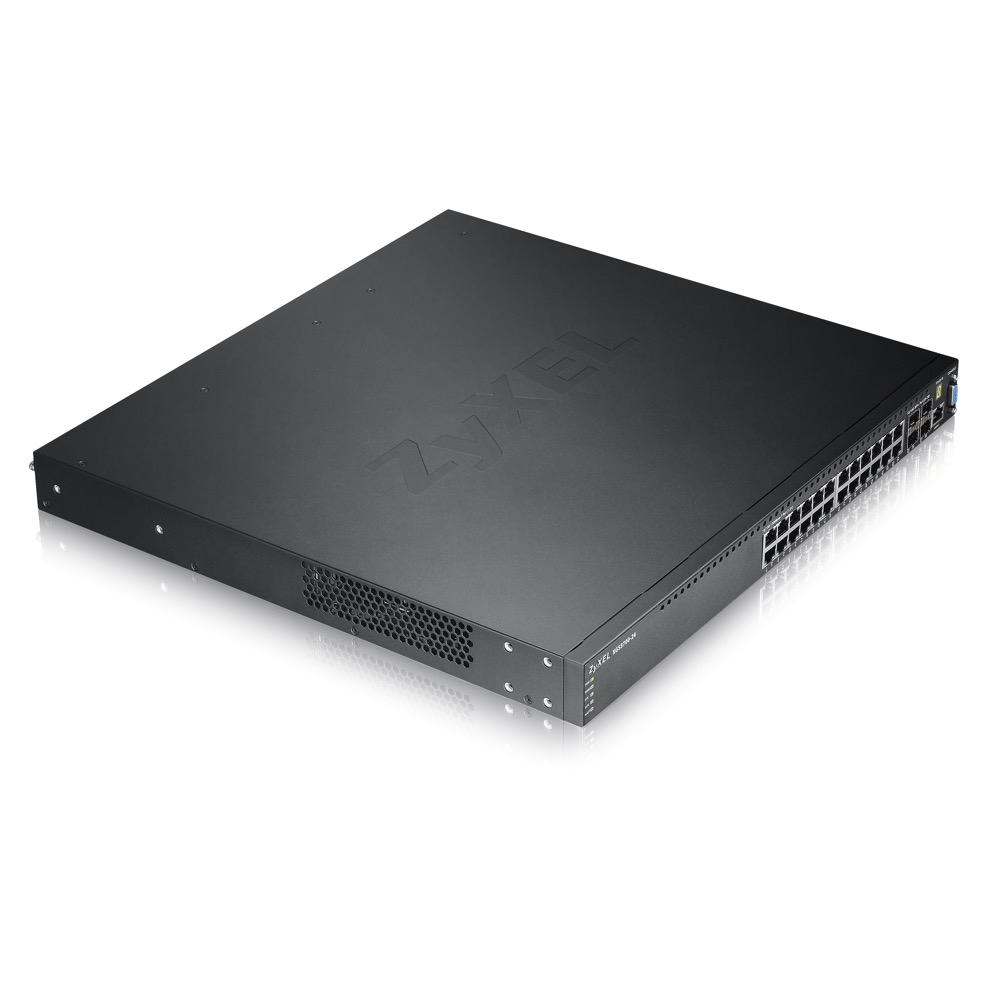

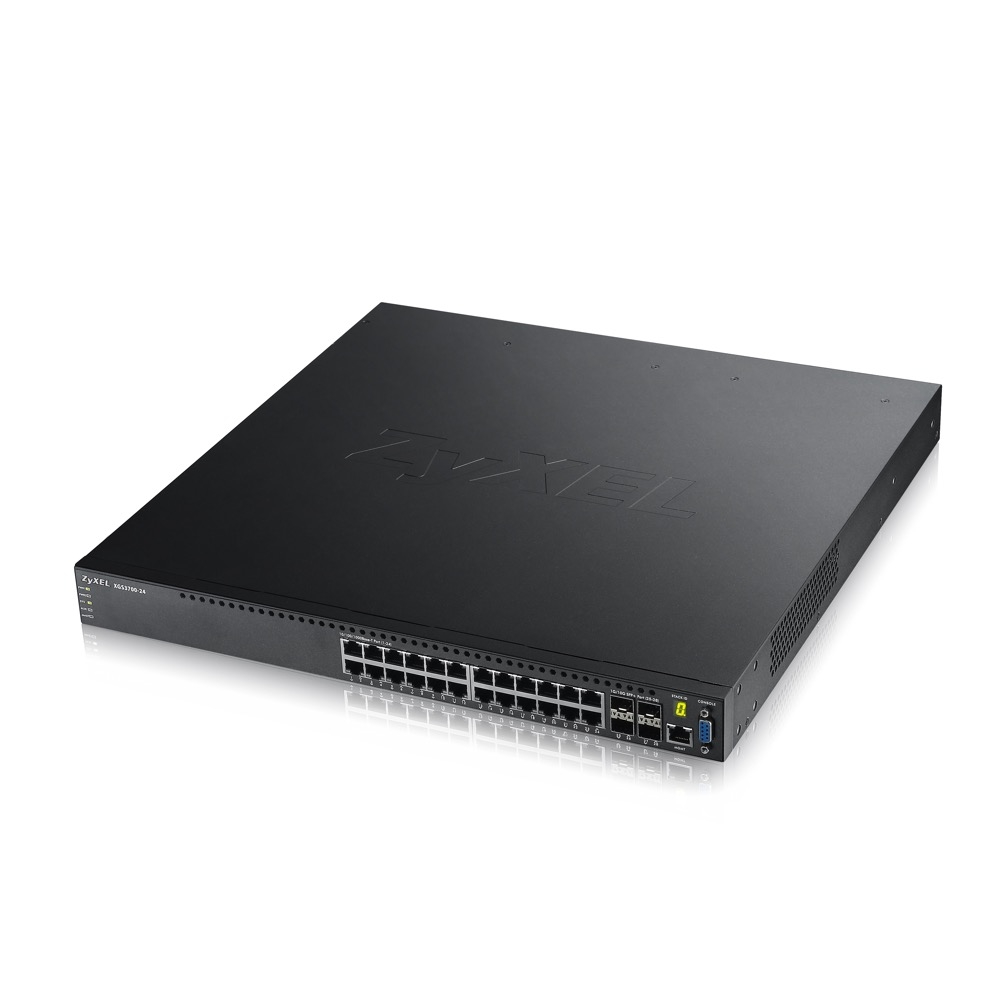

Name: Комутатор Zyxel XGS3700-24, 24 port Layer 2/3 Gigabit Datacenter Switch, 4x 10G
Brand: ZyXEL
SKU: ZyXEL-XGS3700-24-ZZ0101F
Price: 1922.16000000000008185452 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Power Over Ethernet (PoE):

Захранване:

External (100 - 240 V AC, 50/60 Hz) Max. power consumptionL Single PSU: 57.8 W, Dual PSU: 70.3 W

Основни портове, тип:

24x 100/1000Base-T

IPv6 functionality:

IPv6 over Ethernet (RFC 2464), IPv6 addressing architecture (RFC 4291), Dual stack (RFC 4213), ICMPv6 (RFC 4443), Path MTU (RFC 1981) Neighbor discovery (RFC 4861) DHCPv6 relay Default DHCP client mode

Памет (Flash, RAM):

32/512 MB (Flash/RAM), 2 MB Buffer

L3 мрежови стандарти:

ICMP IGMP L3 forwarding table: Max. 1 K IPv4 entries Max. 512 IPv6 entries

Размери (Ш, Д, В), mm:

440 x 437 x 40

L2 мрежови стандарти:

IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3aq IEEE 802.3az IEEE 802.3x IEEE 802.3ad IEEE 802.3ah IEEE 802.1ag IEEE 802.1ab etc.

Свободни (10GB) слотове:

Fans:

Uplink портове:

4x 10G SFP+

Управление:

Web Management through Console, Telnet, SNMP Firmware upgrade by FTP iStacking CLI (Cisco-like) DHCP NTP Port mirroring sFlow Multiple logins supported Configure clone

Суич, тип:

Fixed Port

MAC адреси:

16 K

Капацитет за маршрутизиране/превключване, Gbps:

128 Gbps

QoS:

8 hardware queues per port 802.1p queuing method: SPQ/WRR/ WFQ Storm control: Broadcast, multicast, unknown unicast (DLF) Rate limiting Bandwidth control 802.3x flow control 802.1p TRTCM DSCP

Опция за монтаж:

Rackmount

Общ брой портове:

VLAN (брой, стандарти):

802.1Q static VLANs/dynamic VLANs: 1 K/4 K Port-based VLAN Protocol-based VLAN Private VLAN IP subnet-based VLAN VLAN trunking VLAN translation VLAN ingress filtering 802.1ad VLAN stacking (Q-in-Q) LACP algorithm of source/destination IP GV

Stackable:

Robust softwares include stacking, cross-stack LACP, ECMP and VRRP Physical stacking up to 8 units and 384 Gigabit ports through 2 standard 10G SFP+ ports 802.1ad VLAN stacking (Q-in-Q)

Сигурност:

802.1X Port security MAC authentication Layer 2 MAC filtering Layer 3 IP filtering Layer 4 TCP/UDP socket filtering BPDU transparency Static MAC forwarding Multiple RADIUS servers Multiple TACACS+ servers SSH v1/v2 SSL

Routing:

Static (64 Routing table, Policy-based route, IP port moving, Multiple default route)

Пропускателна способност, Mpps:

95 Mpps

Гаранция:

99 месеца

Описание

Комутатор Zyxel XGS3700-24, 24 port Layer 2/3 Giga

Виж повече caret
