Комутатор HPE OfficeConnect 1950 24G 2SFP+ 2XGT Sw ... Виж още

Каталожен № на продукта: HPE-JG960A
komutator-hpe-officeconnect-1950-24g-2sfp-2xgt-sw-hpe-jg960a
komutator-hpe-officeconnect-1950-24g-2sfp-2xgt-sw-hpe-jg960a
0 ревюта | 0 въпроса

  • Основни портове, тип 24x10/100/1000Base-T
  • L3 мрежови стандарти Static IPv4/IPv6 routing: provides basic routing (supporting up to 512 static routes and 32 VLAN interface on aggregation model 32 static routes and 8 VLAN interfaces on access models) allows manual routing configuration
  • QoS Broadcast control, Rate limiting, Traffic prioritization (Recognizes both IEEE 802.1p and DSCP prioritization tagging. Packets are mapped to four hardware queues for more effective throughput), Powerful QoS feature (SP, WRR and SP+WRR queuing)
  • Сигурност Access Control Lists (ACLs) IEEE 802.1X and RADIUS network logins Port isolation ARP attack protection Automatic VLAN assignment STP BPDU port protection STP root guard Automatic denial-of-service protection Management password
  • Пропускателна способност, Mpps 95.2 Mpps

720.10 €
1408.39 лв.
Неналичен. Цената може да бъде различна, когато отново има наличност.
Добави в Любими
Поръчка по телефон Без формалности
komutator-hpe-officeconnect-1950-24g-2sfp-2xgt-sw-hpe-jg960a

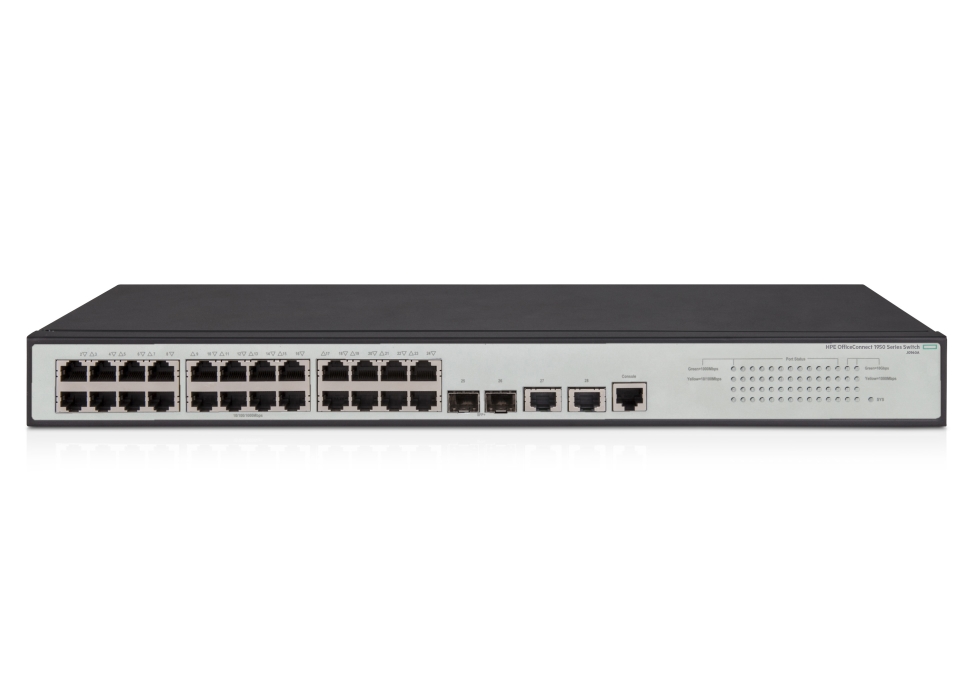

Комутатор HPE OfficeConnect 1950 24G 2SFP+ 2XGT Switch
720.10 € 1408.39 лв.
Характеристики Описание Ревюта Въпроси и отговори
Характеристики
Fans:
Low-speed fan: 19.0 dB, High-speed fan: 44.5 dB
Routing:
Layer 3 Lite
L2 мрежови стандарти:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3i, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az, IEEE 802.1s, IEEE 802.1w, IEEE 802.1D MAC Bridges, IEEE 802.1D STP, IEEE 802.1p, IEEE 802.1Q
Основни портове, тип:
24x10/100/1000Base-T
L3 мрежови стандарти:
Static IPv4/IPv6 routing: provides basic routing (supporting up to 512 static routes and 32 VLAN interface on aggregation model 32 static routes and 8 VLAN interfaces on access models) allows manual routing configuration
Опция за монтаж:
Desktop/Rackmount
QoS:
Broadcast control, Rate limiting, Traffic prioritization (Recognizes both IEEE 802.1p and DSCP prioritization tagging. Packets are mapped to four hardware queues for more effective throughput), Powerful QoS feature (SP, WRR and SP+WRR queuing)
Захранване:
AC voltage: 100-240 VAC Maximum power rating: 34 W
Памет (Flash, RAM):
Flash Memory: 128 MB RAM: 1 GB SDRAM
Сигурност:
Access Control Lists (ACLs) IEEE 802.1X and RADIUS network logins Port isolation ARP attack protection Automatic VLAN assignment STP BPDU port protection STP root guard Automatic denial-of-service protection Management password
IPv6 functionality:
IPv6 host, IPv6 routing, MLD snooping, IPv6 ACL/QoS
Stackable:
True stacking allows for redundancy while simplifying administration
Управление:
Intuitive Web browser-based management Secure Web-management sessions with HTTPS/SSL SNMPv1, v2c, and v3 Complete session logging Dual flash images Port mirroring RMON NTP IEEE 802.1AB Link Layer Discovery Protocol (LLDP) CLI Default DHCP c
Свободни (10GB) слотове:
No
Други:
1 RJ-45 console port to access limited CLI port
Суич, тип:
Fixed Port
Общ брой портове:
28
MAC адреси:
16384 MAC addres table size
Uplink портове:
2x10GE SFP, 2x10GBase-T
Power Over Ethernet (PoE):
No
Размери (Ш, Д, В), mm:
436 x 160 x 44
VLAN (брой, стандарти):
Supports IEEE 802.1Q with 4, 094 simultaneous VLAN IDs
Гаранция:
99 месеца
Капацитет за маршрутизиране/превключване, Gbps:
128 Gbps
Пропускателна способност, Mpps:
95.2 Mpps
Описание

Комутатор HPE OfficeConnect 1950 24G 2SFP+ 2XGT Sw
