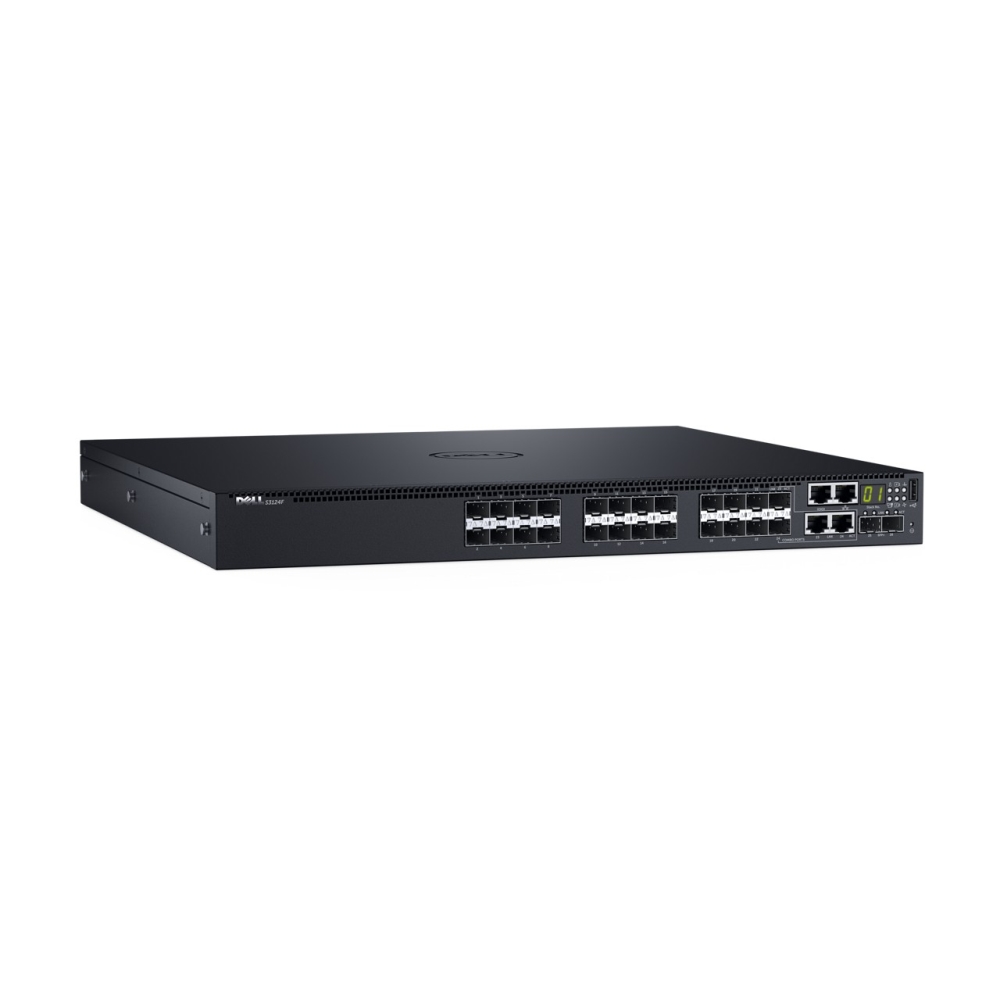

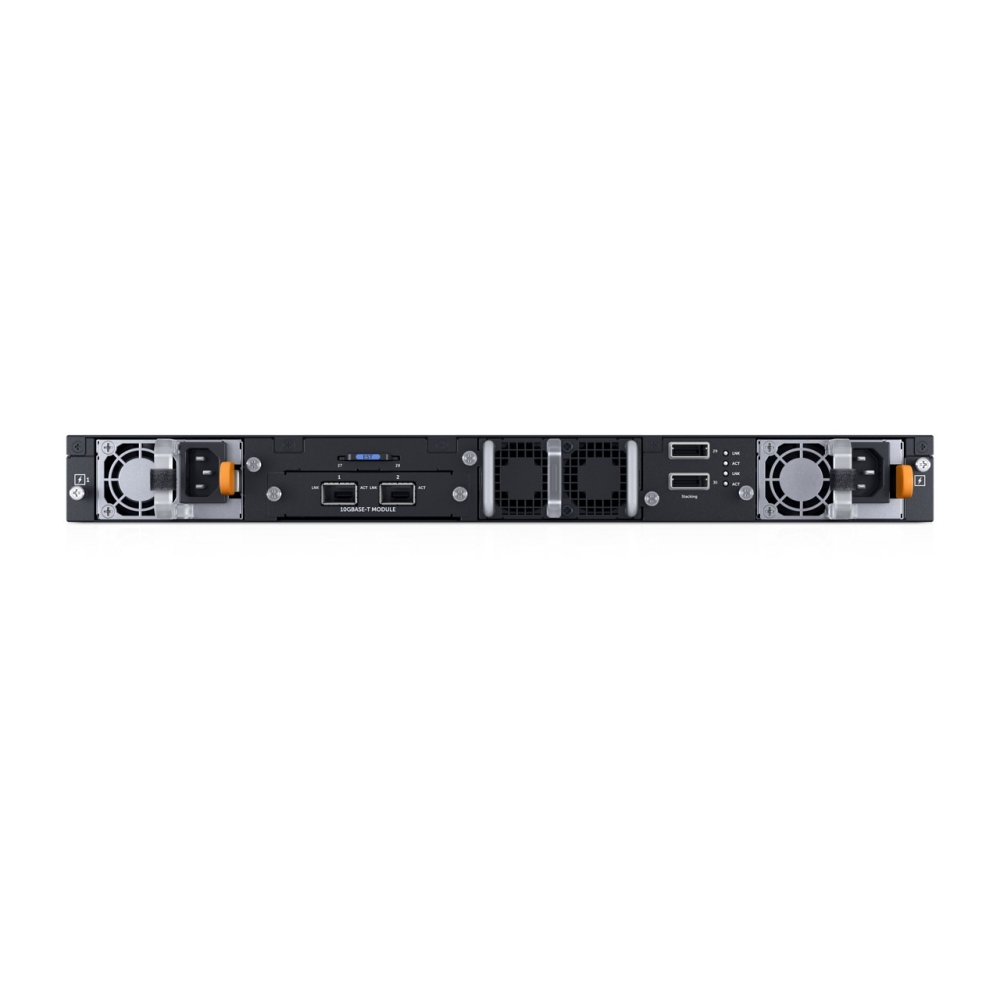

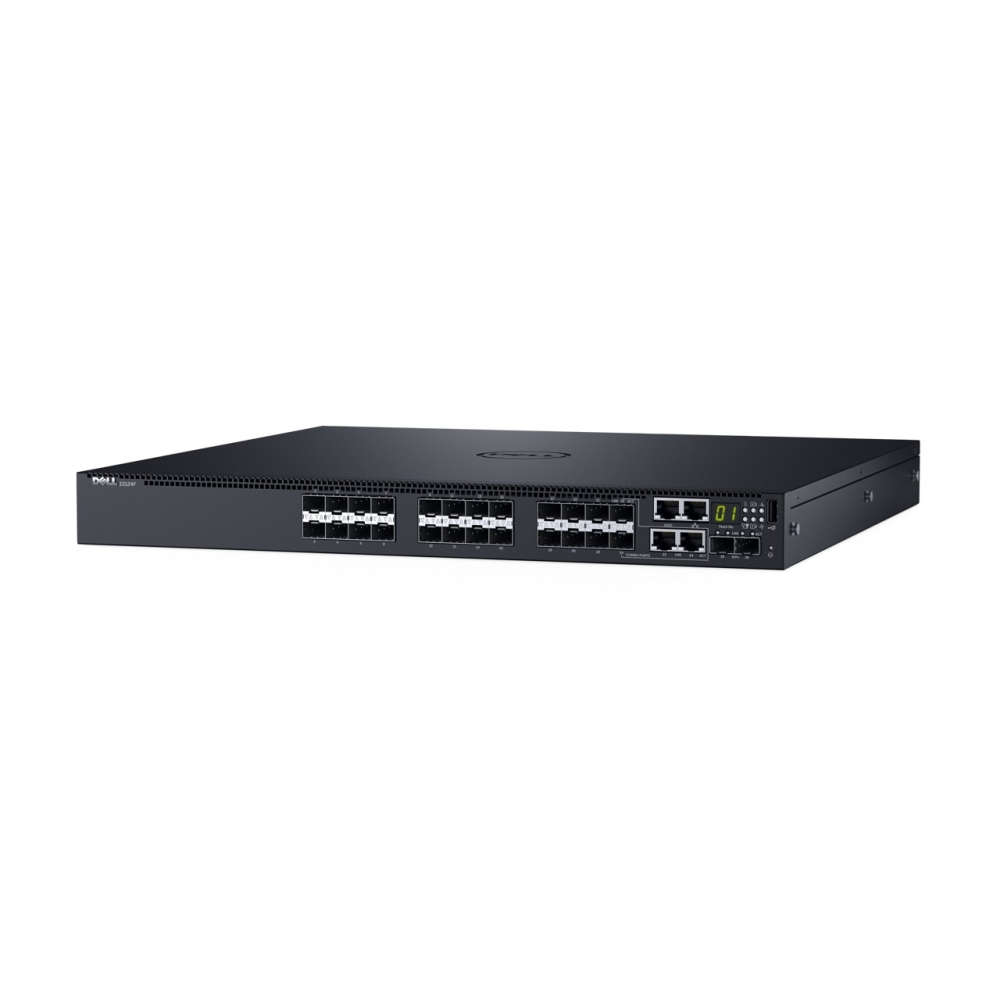

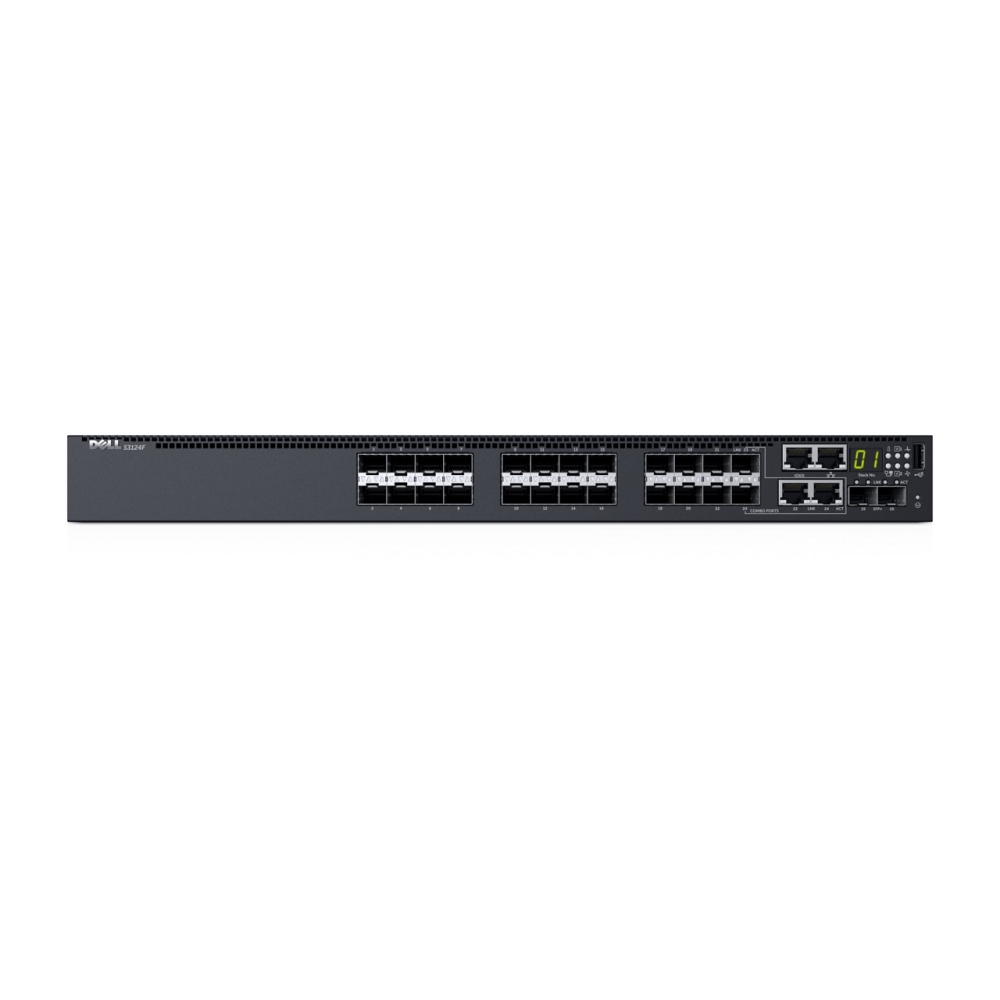

Name: Комутатор Dell Networking S3124F, L3, 24x 1GbE SFP, 2xCombo, 2x 10GbE SFP+ fixed ports, Stacking, IO to PSU air, 1x AC PSU, 3Y PS NBD
Brand: DELL
SKU: DELL-DNS3124F
Price: 8357.10000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Размери (Ш, Д, В), mm:

407 x 434 x 44

Routing:

Layer 3 Advanced

Захранване:

1x 200W PSU included

Сигурност:

TACACS+ accounting and RADIUS support,

Капацитет за маршрутизиране/превключване, Gbps:

212 Gbps

IPv6 functionality:

All protocols, including IPv4 and IPv6

Пропускателна способност, Mpps:

158 Mpps

Uplink портове:

2x 10GbE SFP

Управление:

Management via an intuitive and familiar CLI, SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection

Fans:

Redundant variable speed fans

VLAN (брой, стандарти):

802.1Q VLAN Tagging, Double VLAN Tagging, GVRP, 802.3ac Frame Extensions for VLAN Tagging

MAC адреси:

56K (80K in L2 scaled mode)

Свободни (10GB) слотове:

Hot swappable expansion module supporting dual-port SFP+ or dual-port 10GBaseT

QoS:

8 priority queues per port

Суич, тип:

Fixed Port

Power Over Ethernet (PoE):

Гаранция:

36 месеца

Опция за монтаж:

Rackmount

Основни портове, тип:

24 x 1GbE SFP

Памет (Flash, RAM):

Flash memory: 256 MB

Общ брой портове:

L2 мрежови стандарти:

IEEE compliance: 802.1AB, 802.1D, 802.1p, 802.1Q, 802.1Qbb, 802.1Qaz, 802.1s, 802.1w, 802.1x, 802.1x-2010, 802.3ab, 802.3ac, 802.3ad, 802.1ax, 802.3ae, 802.3af, 802.3at, 802.3az, 802.3u, 802.3x, 802.3z

Други:

1x RJ45 console/management port with RS232 signaling (RJ-45 to female DB-9 connector cable included), Out-of-band management port (10/100/1000BASE-T) USB (Type A) port for configuration via USB flash drive

Stackable:

Yes

Описание

Комутатор Dell Networking S3124F, L3, 24x 1GbE SFP

Виж повече caret
