Комутатор Dell Networking N2024 L2 24x 1GbE + 2x 1 ... 0GbE SFP+ fixed ports Stacking IO to PSU airflow AC Виж още

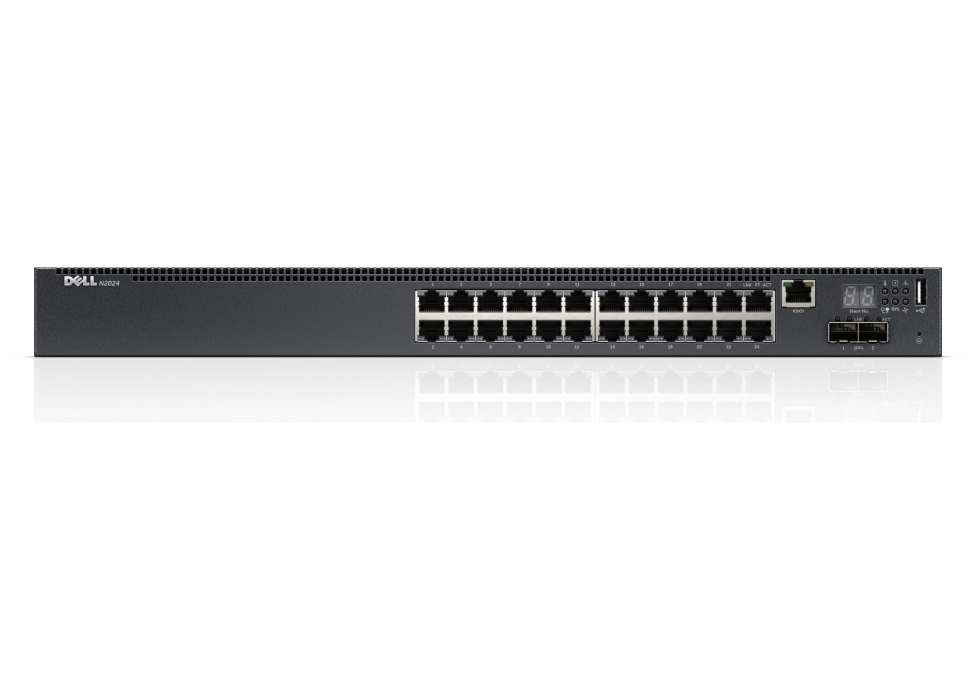

Name: Комутатор Dell Networking N2024 L2 24x 1GbE + 2x 10GbE SFP+ fixed ports Stacking IO to PSU airflow AC
Brand: DELL
SKU: DELL-DNN2024
Price: 1932.36999999999989086064 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: DELL-DNN2024

komutator-dell-networking-n2024-l2-24x-1gbe-2x-1-dell-dnn2024

0 ревюта | 0 въпроса

L3 мрежови стандарти Layer 3 Standard IPv4 and IPv6 functionality including static routing, RIP, and OSPFv2 support
Uplink портове 2x10GE SFP
Общ брой портове 26
L2 мрежови стандарти IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1S, IEEE 802.1v, IEEE 802.1W, IEEE 802.1X, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3AX, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Routing Layer 3 Advanced

Сравни

2318.84 лв.

(-17%)

1185.61 €

1932.37 лв.

988.01 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Fans:

Redundant variable speed fans

Свободни (10GB) слотове:

IPv6 functionality:

General IPv6 protocols are supported.

L3 мрежови стандарти:

Layer 3 Standard IPv4 and IPv6 functionality including static routing, RIP, and OSPFv2 support

Uplink портове:

2x10GE SFP

Капацитет за маршрутизиране/превключване, Gbps:

172 Gbps

Други:

1x RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included), USB (Type A) port for configuration via USB flash drive

Общ брой портове:

Памет (Flash, RAM):

Flash Memory: 256 MB, RAM: 1 GB

MAC адреси:

32000 MAC address table size

Основни портове, тип:

24x10/100/1000Base-T

Stackable:

2 rear stacking ports (21Gbps) supporting up to 84Gbps (full-duplex)

L2 мрежови стандарти:

IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1S, IEEE 802.1v, IEEE 802.1W, IEEE 802.1X, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3AX, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

Захранване:

Integrated power supply (not removable): 100W AC Optional external power supply RPS720 (sold separately)

Routing:

Layer 3 Advanced

VLAN (брой, стандарти):

802.1Q VLAN Tagging, Double VLAN Tagging, GVRP Private VLAN extensions and Private VLAN Edge support 256 VLAN routing interfaces 4094 VLANs supported Protocol-based VLANs Max VLAN interfaces with ACLs applied: 24

QoS:

8 priority queues per port, DiffServ, Flow Based QoS, Port Based QoS

Power Over Ethernet (PoE):

Суич, тип:

Fixed Port

Сигурност:

AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support

Пропускателна способност, Mpps:

128 Mpps

Опция за монтаж:

Rackmount

Управление:

Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection.

Размери (Ш, Д, В), mm:

440 x 257 x 43

Описание

Комутатор Dell Networking N2024 L2 24x 1GbE + 2x 1
