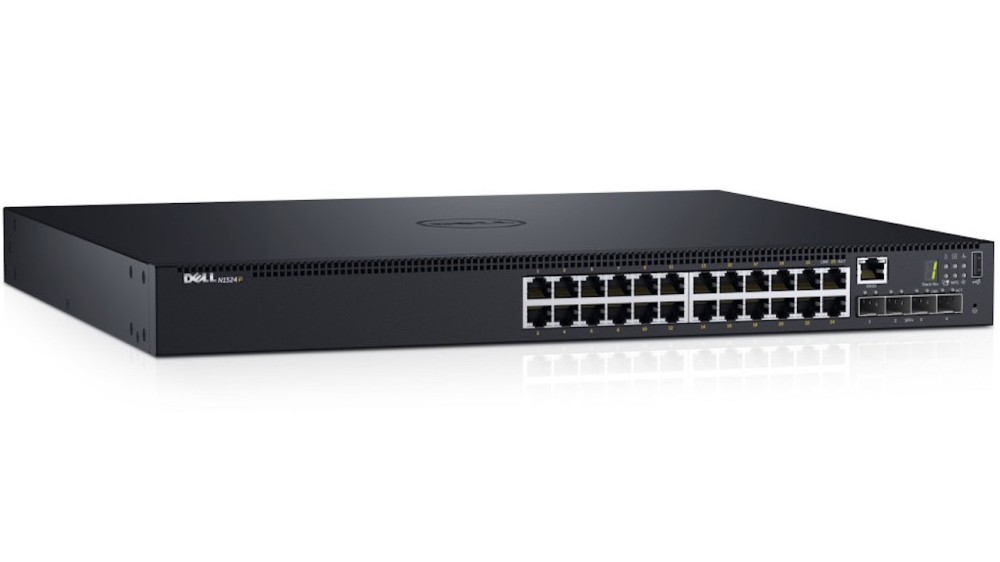

Name: Комутатор Dell Networking N1524P, PoE+, 24x 1GbE + 4x 10GbE SFP+ fixed ports, Stacking, IO to PSU airflow, AC
Brand: DELL
SKU: DELL-DNN1524P
Price: 3946.40000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Гаранция:

99 месеца

L3 мрежови стандарти:

Static routing and Routing Information ProtocoL (RIPv1, RIPv2) 128 RIP routing interfaces

Fans:

Redundant variable speed fans

Свободни (10GB) слотове:

Други:

RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included), USB (Type A) port for configuration via USB flash drive

Пропускателна способност, Mpps:

128 Mpps

Капацитет за маршрутизиране/превключване, Gbps:

128 Gbps

Основни портове, тип:

24x10/100/1000Base-T

Суич, тип:

Fixed Port

Power Over Ethernet (PoE):

Support IEEE 802.3at PoE plus standard

QoS:

8 priority queues per port, DiffServ, Flow Based QoS, Port Based QoS

Управление:

Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection.

Размери (Ш, Д, В), mm:

440 x 387 x 43

Сигурност:

AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support

Опция за монтаж:

Rackmount

IPv6 functionality:

General IPv6 protocols are supported

MAC адреси:

16000 MAC address table size

Памет (Flash, RAM):

Flash Memory: 256 MB, RAM: 1 GB

VLAN (брой, стандарти):

802.1Q VLAN Tagging, Double VLAN Tagging, GVRP Private VLAN extensions and Private VLAN Edge support 128 VLAN routing interfaces 512 VLANs supported Protocol-based VLANs Max VLAN interfaces with ACLs applied: 24

Uplink портове:

4x10GE SFP

L2 мрежови стандарти:

IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1S, IEEE 802.1v, IEEE 802.1W, IEEE 802.1X, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae/at, IEEE 802.3AX, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802

Захранване:

Integrated power supply: 600W AC Optional external power supply MPS1000 (sold separately)

Routing:

Layer 3 RIP

Общ брой портове:

Stackable:

Yes

Описание

Комутатор Dell Networking N1524P, PoE+, 24x 1GbE +
