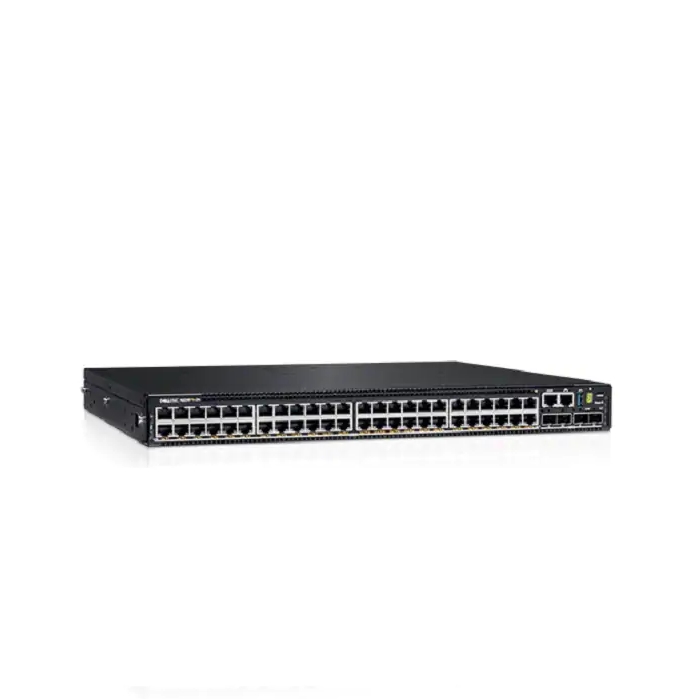

Комутатор Dell EMC PowerSwitch N3248PXE-ON, 48x10M ... Dell EMC PowerSwitch N3248PXE-ON, 48x10M/100M/1G/2.5G/5G/10G BASE-T RJ45 with 802.3bt (up to 90W) PoE, 4x 25G SFP28 ports, 2x 100G QSFP28 ports, 1x 1600W AC PSU, IO/PS Виж още

Name: Комутатор Dell EMC PowerSwitch N3248PXE-ON, 48x10M Dell EMC PowerSwitch N3248PXE-ON, 48x10M/100M/1G/2.5G/5G/10G BASE-T RJ45 with 802.3bt (up to 90W) PoE, 4x 25G SFP28 ports, 2x 100G QSFP28 ports, 1x 1600W AC PSU, IO/PS
Brand: DELL
SKU: DELL-DNN3248PXE
Price: 11275.80000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: DELL-DNN3248PXE

komutator-dell-emc-powerswitch-n3248pxe-on-48x10m-dell-dnn3248pxe

0 ревюта | 0 въпроса

QoS DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM
Свободни (10GB) слотове -
Сигурност RADIUS, TACACS+, 802.1x
Stackable 2x 100G QSFP28
Routing Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6) Dynamic routes: 8158 (IPv4)/4096 (IPv6) RIP routing interfaces: 512, VLAN routing interfaces: 128)

Сравни

11275.80 €

22053.55 лв.

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Поръчка по телефон Без формалности

Комутатор Dell EMC PowerSwitch N3248PXE-ON, 48x10M Dell EMC PowerSwitch N3248PXE-ON, 48x10M/100M/1G/2.5G/5G/10G BASE-T RJ45 with 802.3bt (up to 90W) PoE, 4x 25G SFP28 ports, 2x 100G QSFP28 ports, 1x 1600W AC PSU, IO/PS

11275.80 € 22053.55 лв.

Характеристики Ревюта Въпроси и отговори

Характеристики

QoS:

DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM

Пропускателна способност, Mpps:

2167 Mpps

Основни портове, тип:

48x10M/100M/1G/2.5G/5G/10G BASE-T RJ45 with 802.3bt (up to 90W) PoE

Памет (Flash, RAM):

4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD

Свободни (10GB) слотове:

Други:

1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port Two-core Denverton-NS CPU

VLAN (брой, стандарти):

Private VLAN extensions and Private VLAN Edge support VLAN routing interfaces: 128 VLANs supported: 4094 Protocol-based VLANs: Supported Max VLAN interfaces with ACLs applied: 24

Размери (Ш, Д, В), mm:

434 x 400 x 43.5 mm

Сигурност:

RADIUS, TACACS+, 802.1x

MAC адреси:

32K

Суич, тип:

Fixed Port

L3 мрежови стандарти:

RIP, OSPF, VRRP, MIB

Fans:

Redundant variable speed fans

Stackable:

2x 100G QSFP28

Routing:

Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6) Dynamic routes: 8158 (IPv4)/4096 (IPv6) RIP routing interfaces: 512, VLAN routing interfaces: 128)

Капацитет за маршрутизиране/превключване, Gbps:

1560 Gbps

Uplink портове:

4x 25G SFP28

Управление:

CLI, Web, SNMP 1x 10/100/1000BaseT Ethernet management port

Захранване:

1x 1600W AC PSU

Опция за монтаж:

Rackmount

Промоция:

Доставка до 250 дни след поръчка.

Гаранция:

99 месеца

IPv6 functionality:

Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3

Общ брой портове:

L2 мрежови стандарти:

802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz, 802.3at, 802.3bt

Power Over Ethernet (PoE):

802.3bt Type-4 (90W) PoE
