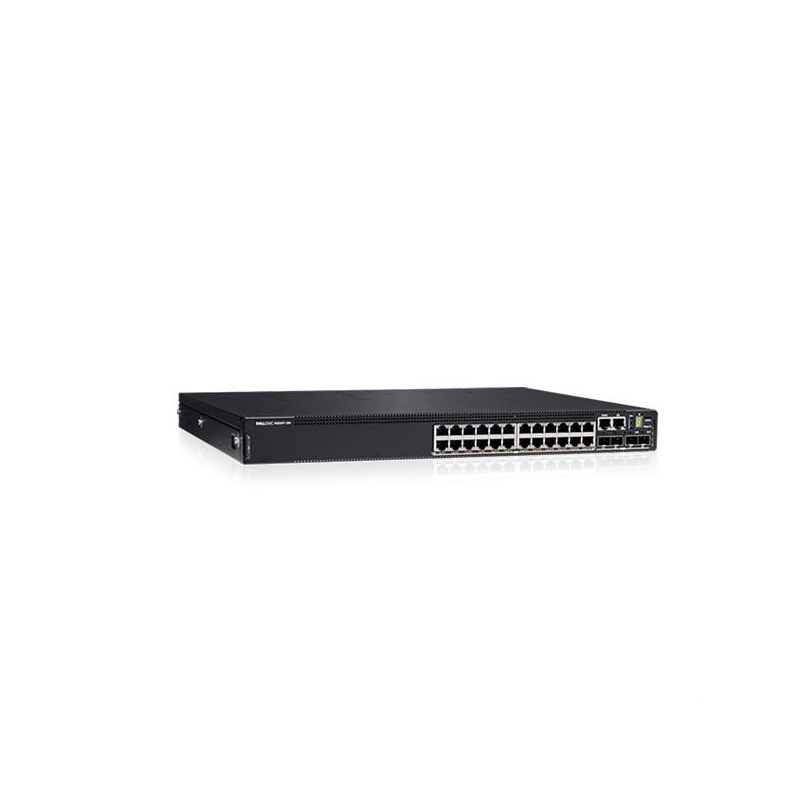

Комутатор Dell EMC PowerSwitch N3224P-ON, 24x1G RJ ... Dell EMC PowerSwitch N3224P-ON, 24x1G RJ-45 with 802.3at (30W) PoE ports, 4x10G SFP+, 2x100G QSFP28, 1x1050W AC PSU, IO/PS Виж още

Name: Комутатор Dell EMC PowerSwitch N3224P-ON, 24x1G RJ Dell EMC PowerSwitch N3224P-ON, 24x1G RJ-45 with 802.3at (30W) PoE ports, 4x10G SFP+, 2x100G QSFP28, 1x1050W AC PSU, IO/PS
Brand: DELL
SKU: DELL-DNN3224P
Price: 9982.10000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: DELL-DNN3224P

komutator-dell-emc-powerswitch-n3224p-on-24x1g-rj-dell-dnn3224p

0 ревюта | 0 въпроса

VLAN (брой, стандарти) Private VLAN extensions and Private VLAN Edge support VLAN routing interfaces: 128 VLANs supported: 4094 Protocol-based VLANs: Supported Max VLAN interfaces with ACLs applied: 24
Fans 3 pluggable fan modules Normal airflow only
Routing Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6) Dynamic routes: 8158 (IPv4)/4096 (IPv6) RIP routing interfaces: 512, VLAN routing interfaces: 128)
Управление CLI, Web, SNMP 1x 10/100/1000BaseT Ethernet management port
Захранване 1x 1050W AC PSU included 2 pluggable AC PSUs — 1 default and 1 optional or 2 optional DC PSUs

Сравни

9982.10 лв.

5103.77 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Ревюта Въпроси и отговори

Характеристики

L3 мрежови стандарти:

RIP, OSPF, VRRP, MIB

Други:

1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port Two-core Denverton-NS CPU

Stackable:

2x 100G QSFP28

Routing:

Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6) Dynamic routes: 8158 (IPv4)/4096 (IPv6) RIP routing interfaces: 512, VLAN routing interfaces: 128)

Основни портове, тип:

24x RJ45 10/100/1000Mb 802.3at (up to 30W) PoE auto- sensing ports

Капацитет за маршрутизиране/превключване, Gbps:

528 Gbps

Управление:

CLI, Web, SNMP 1x 10/100/1000BaseT Ethernet management port

Памет (Flash, RAM):

4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD

Суич, тип:

Fixed Port

Гаранция:

99 месеца

Размери (Ш, Д, В), mm:

434 x 400 x 43.5 mm

Пропускателна способност, Mpps:

733 Mpps

QoS:

DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM

MAC адреси:

32K

Uplink портове:

4x 10G SFP+

Общ брой портове:

Свободни (10GB) слотове:

Power Over Ethernet (PoE):

802.3at (30W) PoE

IPv6 functionality:

Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3

Fans:

3 pluggable fan modules Normal airflow only

Захранване:

1x 1050W AC PSU included 2 pluggable AC PSUs — 1 default and 1 optional or 2 optional DC PSUs

Промоция:

Доставка до 250 дни след поръчка.

L2 мрежови стандарти:

802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz, 802.3at

VLAN (брой, стандарти):

Private VLAN extensions and Private VLAN Edge support VLAN routing interfaces: 128 VLANs supported: 4094 Protocol-based VLANs: Supported Max VLAN interfaces with ACLs applied: 24

Сигурност:

RADIUS, TACACS+, 802.1x

Опция за монтаж:

Rackmount, 1U
