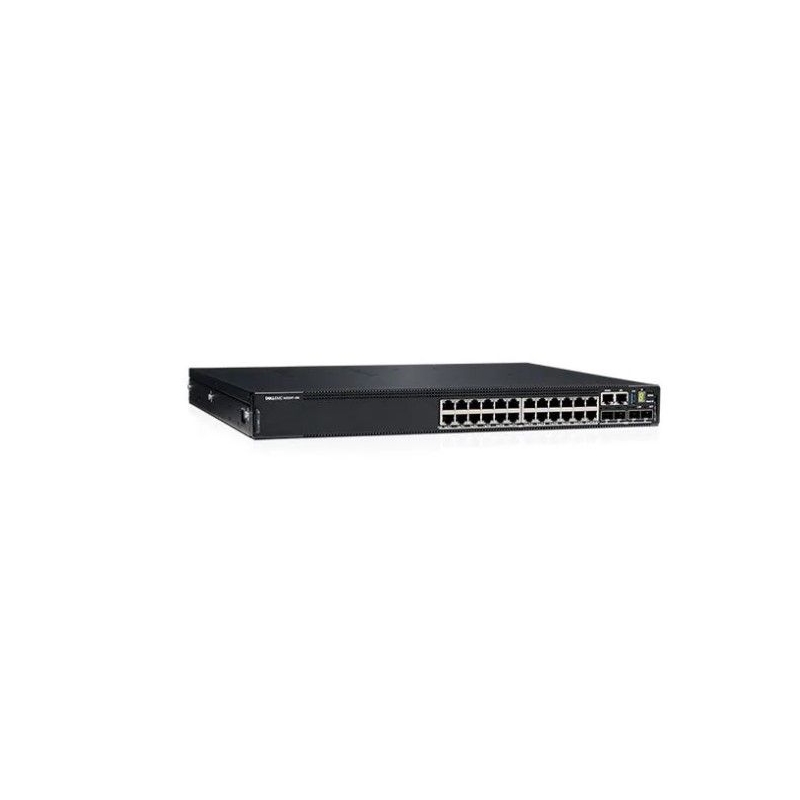

Комутатор Dell EMC PowerSwitch N3224F-ON, 24x1G SF ... Dell EMC PowerSwitch N3224F-ON, 24x1G SFP, 4x10G SFP+, 2x100G QSFP28, 1x550W AC PSU, IO/PS Виж още

Name: Комутатор Dell EMC PowerSwitch N3224F-ON, 24x1G SF Dell EMC PowerSwitch N3224F-ON, 24x1G SFP, 4x10G SFP+, 2x100G QSFP28, 1x550W AC PSU, IO/PS
Brand: DELL
SKU: DELL-DNN3224F
Price: 4985.10000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: DELL-DNN3224F

komutator-dell-emc-powerswitch-n3224f-on-24x1g-sf-dell-dnn3224f

0 ревюта | 0 въпроса

Промоция Доставка до 150 дни след поръчка.
Управление CLI, Web, SNMP 1x 10/100/1000BaseT Ethernet management port
Захранване 1x 550W AC PSU included 2 pluggable AC PSUs — 1 default and 1 optional or 2 optional DC PSUs
Общ брой портове 30
QoS DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM

Сравни

4985.10 €

9750.01 лв.

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Поръчка по телефон Без формалности

Комутатор Dell EMC PowerSwitch N3224F-ON, 24x1G SF Dell EMC PowerSwitch N3224F-ON, 24x1G SFP, 4x10G SFP+, 2x100G QSFP28, 1x550W AC PSU, IO/PS

4985.10 € 9750.01 лв.

Характеристики Ревюта Въпроси и отговори

Характеристики

Fans:

3 pluggable fan modules Normal airflow only

Опция за монтаж:

Rackmount, 1U

Капацитет за маршрутизиране/превключване, Gbps:

528 Gbps

Размери (Ш, Д, В), mm:

434 x 400 x 43.5 mm

L2 мрежови стандарти:

802.3ab 802.1ax (Layer 2) 802.1d, 802.1w, 802.1s, 802.1x (Mgmt/Security), 802.3x (Layer 2) 802.3 802.3ba (40 GbE and 100 GbE) 802.3bt 802.3at 802.3az 802.1v 1613 802.1p, 1q 802.1s 802.3u, 802.3bz

Управление:

CLI, Web, SNMP 1x 10/100/1000BaseT Ethernet management port

Промоция:

Доставка до 150 дни след поръчка.

Stackable:

2x 100G QSFP28

QoS:

DiffServ Field, DiffServ Architecture, Assured Fwd PHB, Port Based QoS Services (TCP/UDP) Mode, Red/WRED, Flow Based QoS Services, Audio Video Bridging Mode (IPv4/IPv6), UDLD, srTCM, trTCM

Гаранция:

99 месеца

Памет (Flash, RAM):

4 GB DDR4 SO-DIMM, 8 GB mSATA 2.0/M.2 SSD

Захранване:

1x 550W AC PSU included 2 pluggable AC PSUs — 1 default and 1 optional or 2 optional DC PSUs

Power Over Ethernet (PoE):

Свободни (10GB) слотове:

MAC адреси:

32K

Суич, тип:

Fixed Port

VLAN (брой, стандарти):

Private VLAN extensions and Private VLAN Edge support VLAN routing interfaces: 128 VLANs supported: 4094 Protocol-based VLANs: Supported Max VLAN interfaces with ACLs applied: 24

L3 мрежови стандарти:

RIP, OSPF, VRRP, MIB

Други:

1x Micro USB Type-B console port, 1x USB Type-A port, 1x RJ45 serial console port Two-core Denverton-NS CPU

IPv6 functionality:

Layer 3 Advanced IPv4 and IPv6 functionality including BGP, VRF, BFD, PIM-SM/DM/SSM, IGMP/MLD, RIPv1/v2, OSPFv2/v3

Пропускателна способност, Mpps:

733 Mpps

Общ брой портове:

Основни портове, тип:

24x1G SFP

Routing:

Line-rate Layer 3 routing (Static routes: 1024 (IPv4)/1024 (IPv6) Dynamic routes: 8158 (IPv4)/4096 (IPv6) RIP routing interfaces: 512, VLAN routing interfaces: 128)

Сигурност:

RADIUS, TACACS+, 802.1x

Uplink портове:

4x 10G SFP+
