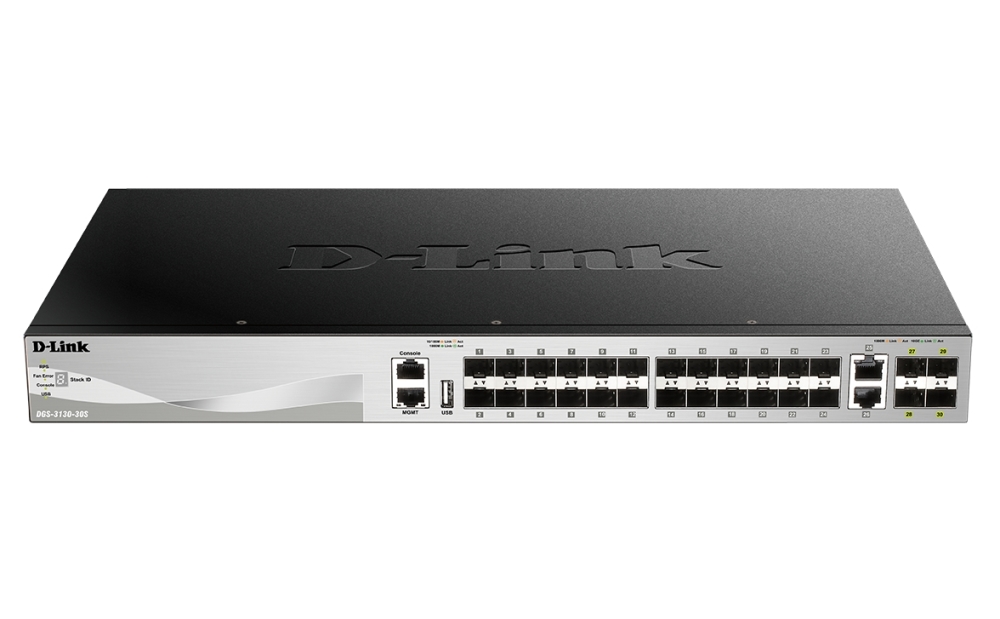

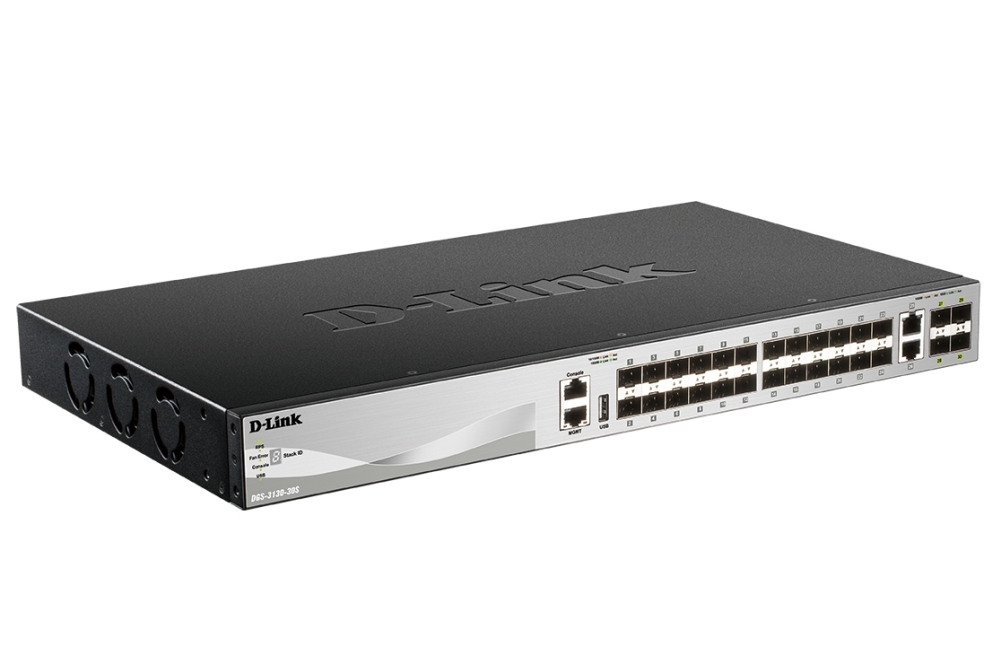

Name: Комутатор D-Link 24 SFP ports Layer 3 Stackable Ma D-Link 24 SFP ports Layer 3 Stackable Managed Gigabit Switch with 2 x 10GBASE-T ports and 4 x SFP+ ports
Brand: D-LINK
SKU: D-LINK-DGS-3130-30S-SI
Price: 1491.30000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Ревюта Въпроси и отговори

Характеристики

Power Over Ethernet (PoE):

Захранване:

Internal (100 to 240 V AC, 50 to 60 Hz, 82.4 W Max Power Consumption) Optional Redundant Power Supply (DPS-500A)

Основни портове, тип:

24x SFP ports

IPv6 functionality:

IPv4/IPv6 access Management: Telnet/Secure FTP Server, Telnet/TFTP/DNS Client System Log SNMP DHCP server - Support for IPv4/IPv6 address assignment Ping/Traceroute for IPv4/IPv6 IPv6 Route Advertisement (RA) Guard, IPv6 ND Inspectiont

Памет (Flash, RAM):

2 MB Packet Buffer Memory

L3 мрежови стандарти:

IGMP v1/v2/v3, PIM-SM for IPv4

Размери (Ш, Д, В), mm:

440 x 250 x 44 mm

L2 мрежови стандарти:

802.3x Flow Control, 802.1AX/802.3ad Link Aggregation Spanning Tree Protocols: 802.1D STP, 802.1w RSTP, 802.1s MSTP, BPDU Filtering, Root Guard, Loop Guard IGMP v1/v2/v3 Snooping MLD Snooping

Свободни (10GB) слотове:

Fans:

3x Smart fans

Uplink портове:

2x 10GBASE-T ports + 4x 10G SFP+ ports

Управление:

Web-based GUI

Суич, тип:

Fixed Port

Други:

1 x RJ-45 Console port, 1 x RJ-45 Management port, 1x USB 2.0 Type A port

MAC адреси:

16K

Капацитет за маршрутизиране/превключване, Gbps:

168 Gbps

QoS:

Number of QoS queues per port: 8 802.1p, Queue Handling, Policy Map, Congestion Control CoS based on: Switch port. Inner/Outer VID, Inner/Outer 802.1p Priority, MAC address, IP address, DSCP, Protocol type and etc. Bandwidth Control Three Color M

Опция за монтаж:

Rackmount

Общ брой портове:

VLAN (брой, стандарти):

VLAN Access Map Numbers: 100 Types: VRP, MAC-based, Port-based, Protocol-based Advanced VLAN: Asymmetric VLAN, ISM VLAN, Super VLAN, Voice VLAN

Stackable:

4 Stacking ports, stacking cost 1 80Gbps stacking (up to 9 units/stack)

Сигурност:

Port Security Broadcast/Multicast/Unicast Storm Control D-Link Safeguard Engine DHCP Server Screening IP Source Guard DHCP Snooping Pv6 Snooping Dynamic ARP Inspection (DAI) DHCPv6 Guard and etc.

Routing:

Static route for IPv4/IPv6 (IPv4 - 1K, IPv6 - 512)

Пропускателна способност, Mpps:

125 Mpps

Гаранция:

99 месеца
