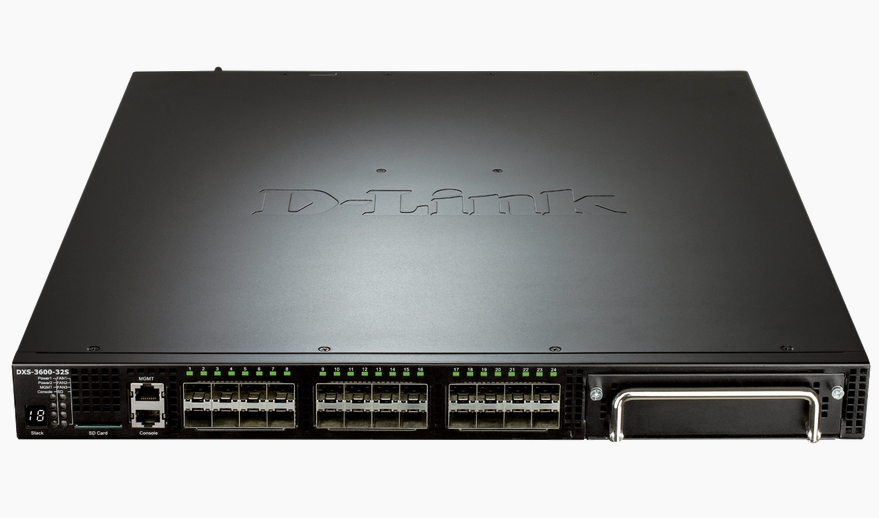

Комутатор D-Link 24-ports 10Gigabit SFP+ Layer 3 E

Каталожен № на продукта: D-LINK-DXS-3600-32S-SI
komutator-d-link-24-ports-10gigabit-sfp-layer-3-e-d-link-dxs-3600-32s-si
komutator-d-link-24-ports-10gigabit-sfp-layer-3-e-d-link-dxs-3600-32s-si
komutator-d-link-24-ports-10gigabit-sfp-layer-3-e-d-link-dxs-3600-32s-si
komutator-d-link-24-ports-10gigabit-sfp-layer-3-e-d-link-dxs-3600-32s-si
0 ревюта | 0 въпроса

  • VLAN (брой, стандарти) 802.1Q VLAN, 802.1v Protocol-based VLAN, Double VLAN (Q-in-Q), Port-based VLAN, MAC-based VLAN, Subnet-based VLAN, Private VLAN, VLAN Group (Max. 4K static VLAN groups, Max. 4094 VIDs), GVRP (Up to 4K dynamic VLANs), VLAN Translation, VLAN Trunking
  • Routing Layer 3 Lite
  • Сигурност Port Security, Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, IP-MAC-Port Binding (IMPB), Dynamic ARP Inspection, IP Source Guard, DHCP Snooping, DHCPv6 Guard, BPDU Attack Protection, DOS Attack Prevention,
  • Опция за монтаж Rackmount
  • Power Over Ethernet (PoE) No

6364.20 €
12447.29 лв.
Неналичен. Цената може да бъде различна, когато отново има наличност.
Добави в Любими
Поръчка по телефон Без формалности
komutator-d-link-24-ports-10gigabit-sfp-layer-3-e-d-link-dxs-3600-32s-si
Комутатор D-Link 24-ports 10Gigabit SFP+ Layer 3 E
6364.20 € 12447.29 лв.
Характеристики Описание Ревюта Въпроси и отговори
Характеристики
VLAN (брой, стандарти):
802.1Q VLAN, 802.1v Protocol-based VLAN, Double VLAN (Q-in-Q), Port-based VLAN, MAC-based VLAN, Subnet-based VLAN, Private VLAN, VLAN Group (Max. 4K static VLAN groups, Max. 4094 VIDs), GVRP (Up to 4K dynamic VLANs), VLAN Translation, VLAN Trunking
Stackable:
DXS-3600-EM-Stack expansion module: 480G stacking bandwidth Physical Stacking: Up to 480G stacking bandwidth, Up to 4 switches in a stack, Ring/chain topology support Virtual Stacking/Clustering of up to 32 units: Supports D-Link Single IP Manageme
Пропускателна способност, Mpps:
714.28 Mpps
MAC адреси:
128000 MAC address table size
Routing:
Layer 3 Lite
L3 мрежови стандарти:
Static Routing: Max. 1K IPv4 entries, Max. 512 IPv6 entries, Supports secondary route, Supports Equal Cost/Weighted Cost multi-path route Default Routing
Сигурност:
Port Security, Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, IP-MAC-Port Binding (IMPB), Dynamic ARP Inspection, IP Source Guard, DHCP Snooping, DHCPv6 Guard, BPDU Attack Protection, DOS Attack Prevention
Опция за монтаж:
Rackmount
Общ брой портове:
24
Размери (Ш, Д, В), mm:
440 x 506 x 44

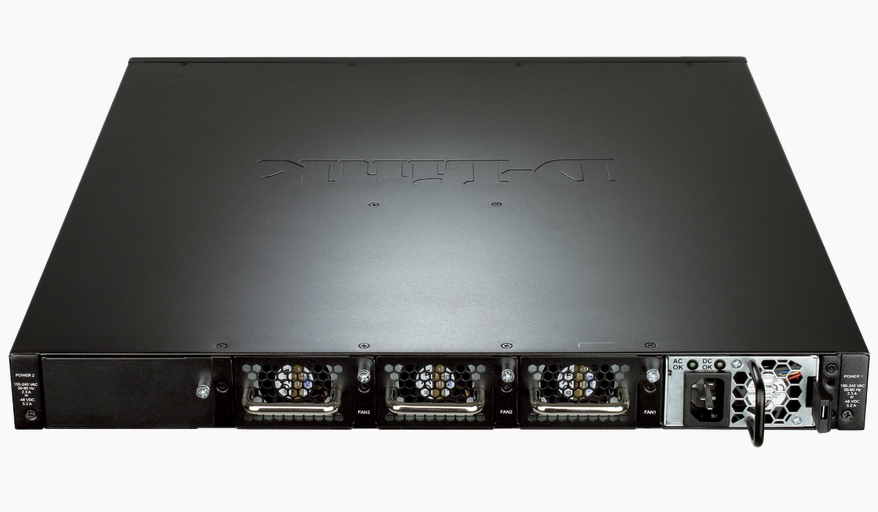

Fans:
Removable redundant smart fans
Капацитет за маршрутизиране/превключване, Gbps:
960 Gbps
Uplink портове:
0
Power Over Ethernet (PoE):
No
Памет (Flash, RAM):
-
Основни портове, тип:
24x10GE SFP
L2 мрежови стандарти:
IEEE 802.3u, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.1X, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.3ah, IEEE 802.1ag
Управление:
Web-based GUI, CLI, Telnet Server/Client, TFTP Client, FTP Client, Traffic Monitoring, SNMP (Supports v1/v2c/v3), SNMP Trap, System Log, CPU Monitoring, RMONv1, RMONv2, Trusted Host, Debug command, IPv6 Stateless Address Auto-configuration (SLAAC), S
QoS:
802.1p Quality of Service (QoS), 8 queues per port, Queue handling (Strict, Weighted Round Robin (WRR), Strict + WRR, Round Robin (RR), Weighted Deficit Round Robin (WDRR)), Bandwidth Control, Congestion Control
Захранване:
Two AC/DC hot-swappable power modules for 1+1 power redundancy and load sharing
Гаранция:
99 месеца
IPv6 functionality:
IPv6 Neighbor Discovery (ND)
Други:
10/100/1000 BASE-T RJ-45 Ethernet for out-of-band remote management, RJ-45 console port for out-of-band management, 1 SD Card Slot
Свободни (10GB) слотове:
1 expansion slot
Суич, тип:
Fixed Port
Описание

Комутатор D-Link 24-ports 10Gigabit SFP+ Layer 3 E
