Name: Комутатор D-Link 20-Port 10GBASE-T/SFP+ and 10GBASE-T/SFP+ Combo Port
Brand: D-LINK
SKU: D-LINK-DXS-3400-24TC
Price: 13405.20000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Power Over Ethernet (PoE):

MAC адреси:

48000 MAC address table size

Гаранция:

99 месеца

IPv6 functionality:

IPv6 Neighbor Discovery (ND), IPv6 Tunneling - Static, ISATAP, GRE, 6to4

Routing:

Layer 3 RIP

Захранване:

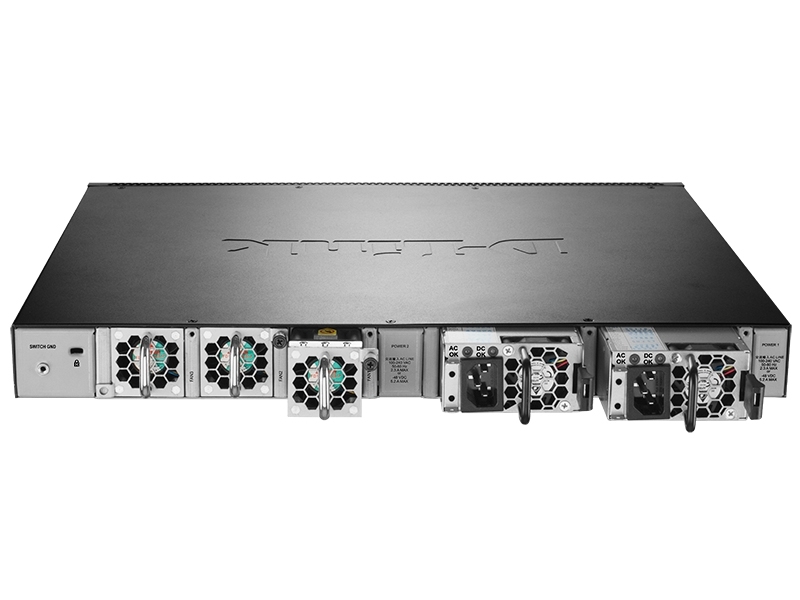

Two AC/DC hot-swappable power modules for 1+1 power redundancy and load sharing

VLAN (брой, стандарти):

802.1Q, 802.1v, Double VLAN (Q-in-Q), Selective Q-in-Q, Port/MAC/Subnet-based VLAN, Private VLAN, VLAN Group (Max. 4K static VLAN groups, Max. 4094 VIDs), ISM VLAN (Multicast VLAN), GVRP (Up to 4094 dynamic VLANs), Voice VLAN, Auto Surveillance VLAN

Общ брой портове:

L2 мрежови стандарти:

IEEE 802.3u, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.1X, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.3ah, IEEE 802.1ag

Fans:

Three hot-swappable fan trays provide N+1 cooling redundancy

Пропускателна способност, Mpps:

357.14 Mpps

Суич, тип:

Fixed Port

Сигурност:

Port Security, Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, IP-MAC-Port Binding (IMPB), Dynamic ARP Inspection, IP Source Guard, DHCP Snooping, DHCPv6 Guard, BPDU Attack Protection, DOS Attack Prevention

Основни портове, тип:

20x10GBase-T

Капацитет за маршрутизиране/превключване, Gbps:

480 Gbps

Stackable:

Physical Stacking: Up to 80G stacking bandwidth, Up to 4 switches in a stack, Ring/chain topology support Virtual Stacking/Clustering of up to 32 units: Supports D-Link Single IP Management

Памет (Flash, RAM):

Опция за монтаж:

Rackmount

Свободни (10GB) слотове:

Управление:

Web-based GUI, CLI, Telnet Server/Client, TFTP Client, FTP Client, Traffic Monitoring, SNMP (Supports v1/v2c/v3), SNMP Trap, System Log, CPU Monitoring, RMONv1, RMONv2, Trusted Host, Debug command, sFlow, Switch Resource Management (SRM), LLDP &amp

Размери (Ш, Д, В), mm:

441 x 380 x 44

QoS:

802.1p Quality of Service (QoS), 8 queues per port, Queue handling (Strict, Weighted Round Robin (WRR), Strict + WRR, Deficit Round Robin (DRR), Weighted Deficit Round Robin (WDRR)), Bandwidth Control, Congestion Control

Други:

10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management, RJ45 and Mini USB console ports for out-of-band CLI management, 1 USB Port

Uplink портове:

4 dual personality

L3 мрежови стандарти:

Static Routing: Max. 256 IPv4 entries, Max. 128 IPv6 entries, Supports route redistribution, Supports secondary route Default Routing Policy-based Route (PBR) Bidirectional Forwarding Detection (BFD) RIP (RIP v1/v2, RIPng) Route Redistribution

Описание

Комутатор D-Link 20-Port 10GBASE-T/SFP+ and 10GBAS
