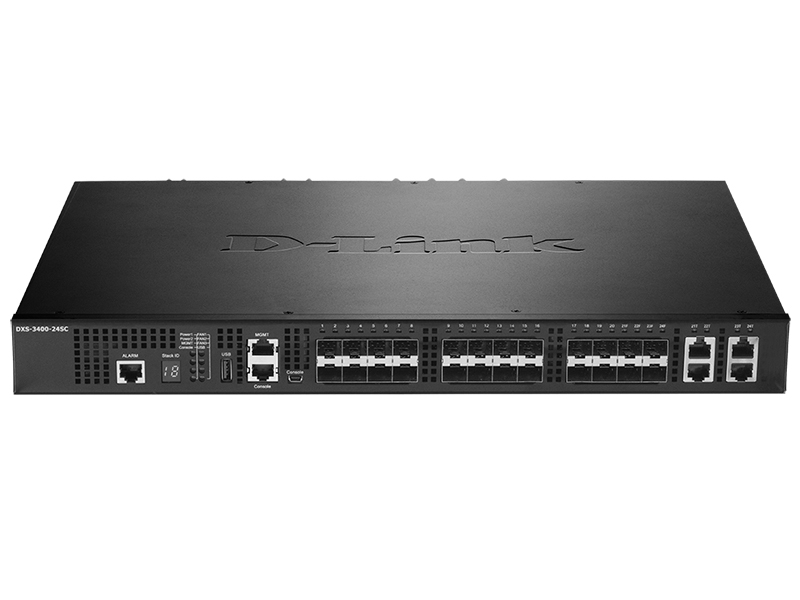

Name: Комутатор D-Link 20-Port 10G SFP+ and 4-port 10GBASE-T/SFP+ Combo Port
Brand: D-LINK
SKU: D-LINK-DXS-3400-24SC
Price: 10957.40000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Капацитет за маршрутизиране/превключване, Gbps:

480 Gbps

Stackable:

Physical Stacking: Up to 80G stacking bandwidth, Up to 4 switches in a stack, Ring/chain topology support Virtual Stacking/Clustering of up to 32 units: Supports D-Link Single IP Management

Power Over Ethernet (PoE):

L3 мрежови стандарти:

Static Routing: Max. 256 IPv4 entries, Max. 128 IPv6 entries, Supports route redistribution, Supports secondary route Default Routing Policy-based Route (PBR) Bidirectional Forwarding Detection (BFD) RIP (RIP v1/v2, RIPng) Route Redistribution

Суич, тип:

Fixed Port

Други:

10/100/1000BASE-T RJ-45 Ethernet for out-of-band IP management, RJ45 and Mini USB console ports for out-of-band CLI management, 1 USB Port

Размери (Ш, Д, В), mm:

441 x 380 x 44

Гаранция:

99 месеца

Uplink портове:

4 dual personality

Свободни (10GB) слотове:

Опция за монтаж:

Rackmount

MAC адреси:

48000 MAC address table size

L2 мрежови стандарти:

IEEE 802.3u, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.1X, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1AX, IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.3ah, IEEE 802.1ag

Общ брой портове:

Fans:

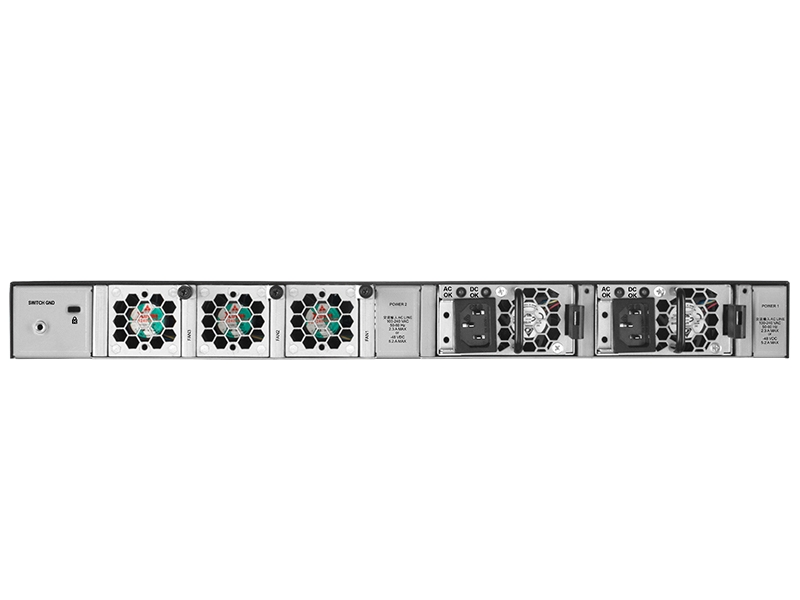

Three hot-swappable fan trays provide N+1 cooling redundancy

Пропускателна способност, Mpps:

357.14 Mpps

Памет (Flash, RAM):

QoS:

802.1p Quality of Service (QoS), 8 queues per port, Queue handling (Strict, Weighted Round Robin (WRR), Strict + WRR, Deficit Round Robin (DRR), Weighted Deficit Round Robin (WDRR)), Bandwidth Control, Congestion Control

VLAN (брой, стандарти):

802.1Q, 802.1v, Double VLAN (Q-in-Q), Selective Q-in-Q, Port/MAC/Subnet-based VLAN, Private VLAN, VLAN Group (Max. 4K static VLAN groups, Max. 4094 VIDs), ISM VLAN (Multicast VLAN), GVRP (Up to 4094 dynamic VLANs), Voice VLAN, Auto Surveillance VLAN

Сигурност:

Port Security, Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, IP-MAC-Port Binding (IMPB), Dynamic ARP Inspection, IP Source Guard, DHCP Snooping, DHCPv6 Guard, BPDU Attack Protection, DOS Attack Prevention

IPv6 functionality:

IPv6 Neighbor Discovery (ND), IPv6 Tunneling - Static, ISATAP, GRE, 6to4

Основни портове, тип:

20x10GE SFP

Захранване:

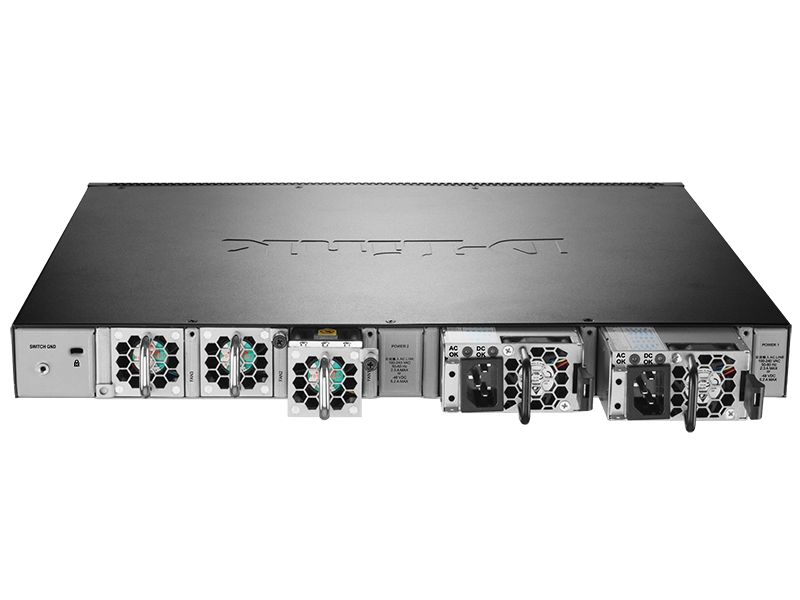

Two AC/DC hot-swappable power modules for 1+1 power redundancy and load sharing

Управление:

Web-based GUI, CLI, Telnet Server/Client, TFTP Client, FTP Client, Traffic Monitoring, SNMP (Supports v1/v2c/v3), SNMP Trap, System Log, CPU Monitoring, RMONv1, RMONv2, Trusted Host, Debug command, sFlow, Switch Resource Management (SRM), LLDP &amp

Routing:

Layer 3 RIP

Описание

Комутатор D-Link 20-Port 10G SFP+ and 4-port 10GBA
