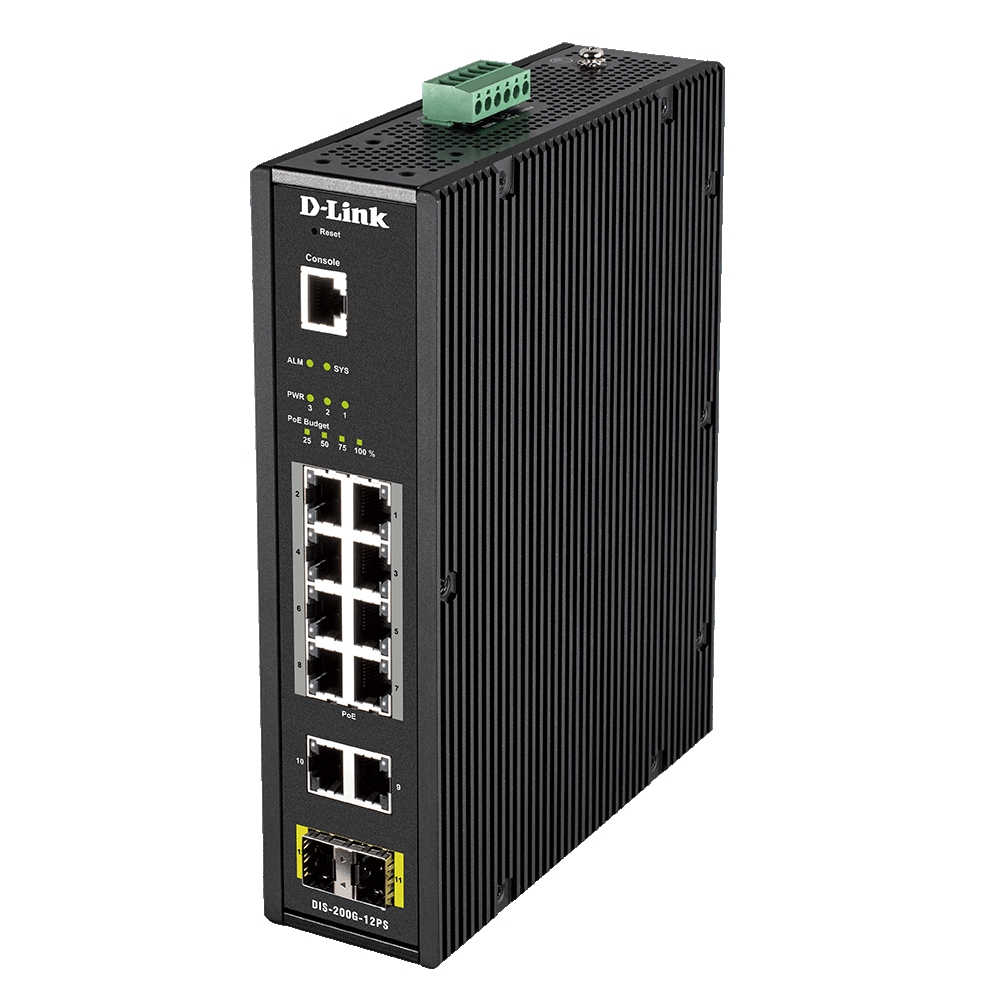

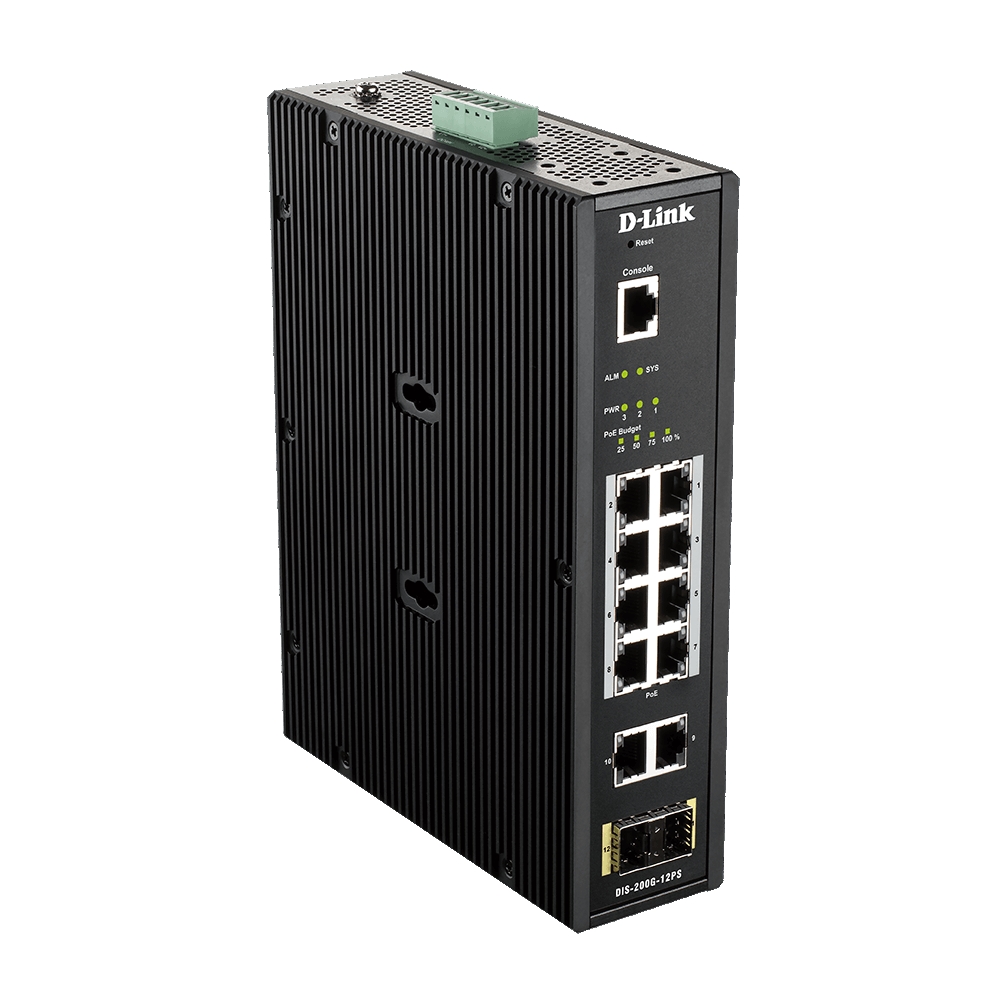

Name: Комутатор D-Link 12 Port L2 Industrial Smart Managed Switch with 10 x 1GBaseT(X) ports (8 PoE 240W) & 2 x SFP ports
Brand: D-LINK
SKU: D-LINK-DIS-200G-12PS
Price: 1486.30000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Размери (Ш, Д, В), mm:

210 x 171.2 x 53

Други:

Auto-MDI/MDIX adjustment for all twisted pair ports

Управление:

Web-based UI (supports IPv4/IPv6), Client-based D-Link Network Assistant (DNA) CLISNTP SNMP v1/v2c/v3 SNMP trap Telnet server System Log DHCP client TFTP client LLDP D-Link Discovery Protocol (DDP) Dual images Dual configurations

Захранване:

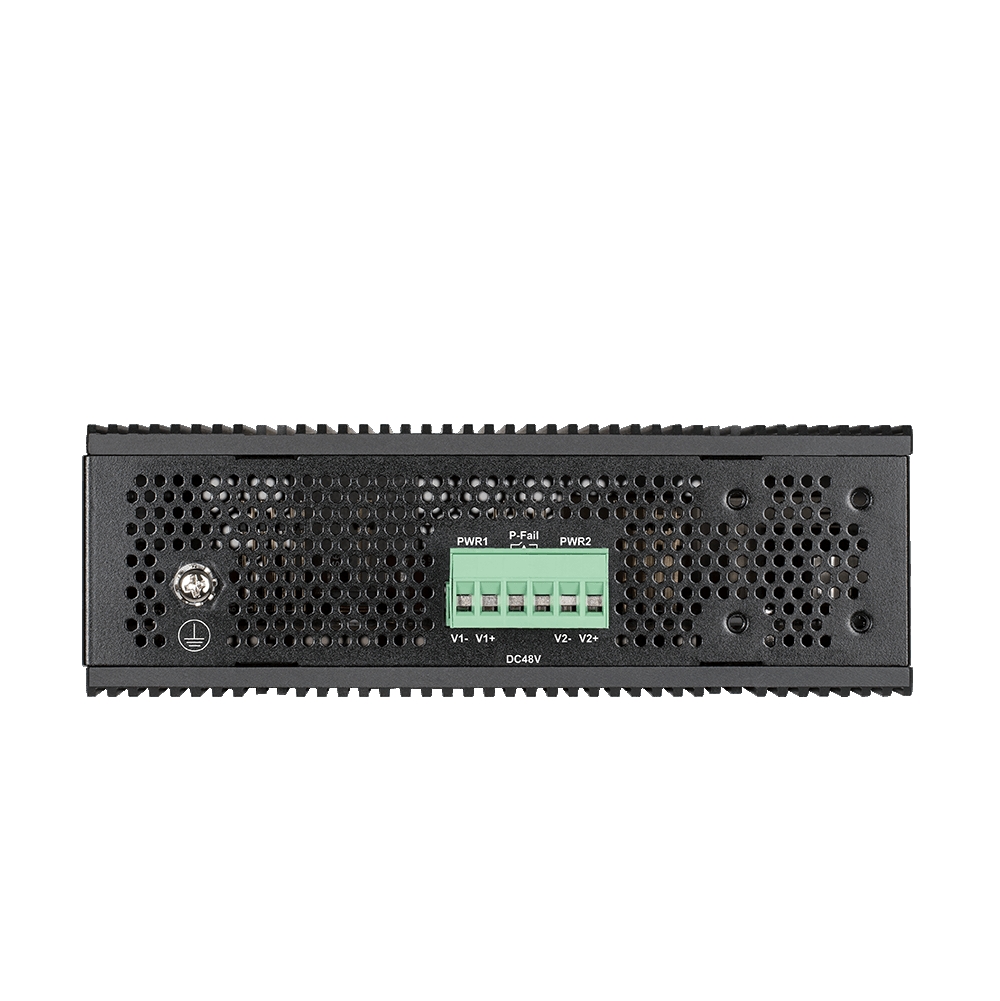

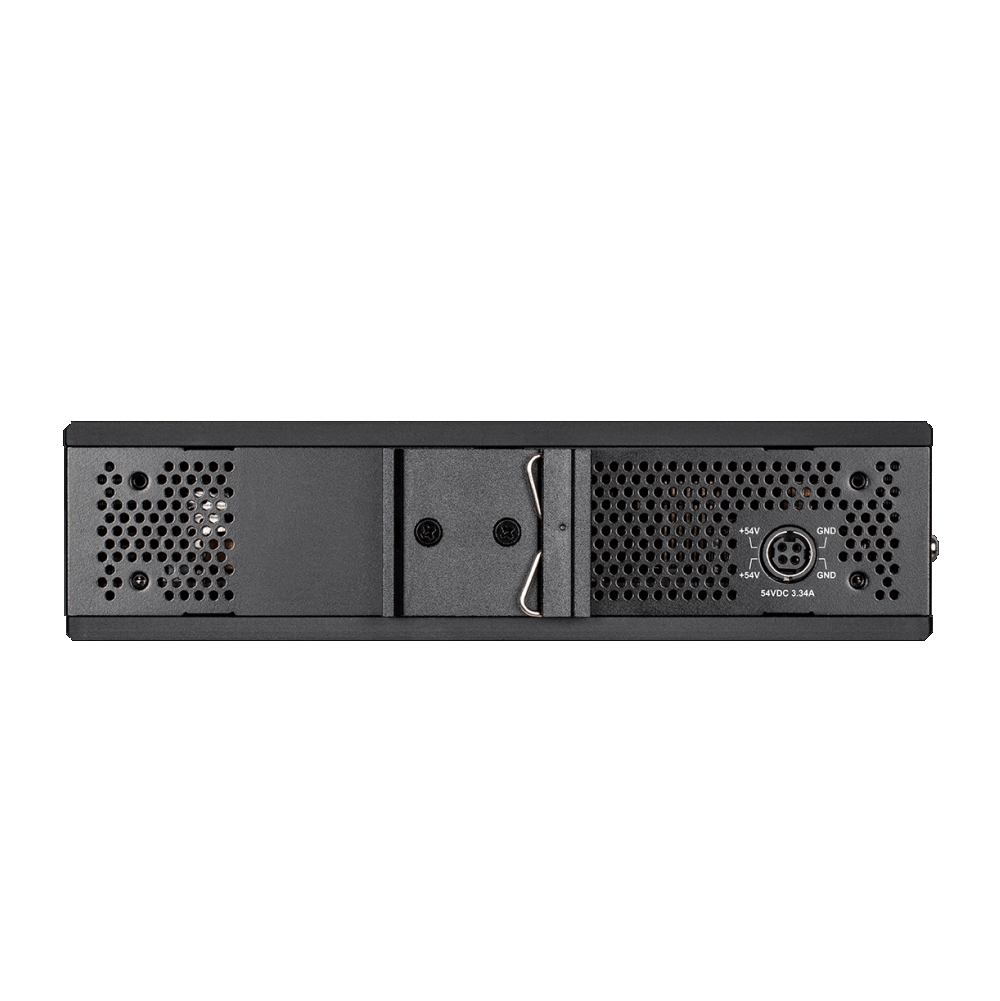

Dual power input for redundant power supplies: 48 to 54 V DC terminal block dual input, 54 V DC 4-pin DIN single power input Maximum: 260 W (PoE on) Maximum: 10.8 W (PoE off) Standby: 7.02 W

Stackable:

QoS:

IEEE 802.1p (4 queues per port, Queue handling, Strict Priority Queue (SPQ), Weighted Round Robin (WRR), Port-based bandwidth control (rate limiting), Ingress: 100 kbps)

L3 мрежови стандарти:

Uplink портове:

2xSFP

Сигурност:

UL60950-1 D-Link Safeguard, Traffic segmentation Broadcast/Multicast/Unknown Unicast Storm Control DoS attack prevention SSL SSH Port security

Гаранция:

60 месеца

MAC адреси:

Up to 8K entries

Опция за монтаж:

DIN rail/wall mountable

Памет (Flash, RAM):

Основни портове, тип:

8 x 10/100/1000BASE-T PoE ports + 2 x 10/100/1000BASE-T ports

Routing:

Layer 2 Only

Суич, тип:

Fixed Port

IPv6 functionality:

Капацитет за маршрутизиране/превключване, Gbps:

24 Gbps

Общ брой портове:

Power Over Ethernet (PoE):

Standards: IEEE 802.3af/at Ports 1 to 8 PoE Power Budget: Max. 240 W

Свободни (10GB) слотове:

Fans:

Fanless

Пропускателна способност, Mpps:

17.85 Mpps

L2 мрежови стандарти:

IEEE 802.3x Flow Control, HDL Blocking Prevention, IGMP v1/v2/v3 MLD Snooping IEEE 802.3ad G.8032 ERPSv1 single ring LLDP IEEE 802.1D STP IEEE 802.1w RSTP IEEE 802.1s MSTP Port mirroring RADIUS

VLAN (брой, стандарти):

IEEE 802.1Q tagged VLAN Port-based VLAN Auto-Surveillance VLAN 2.0 (ASV 2.0) Voice VLAN Asymmetric VLAN VLAN group (Supports 128 static VLAN groups, Max. 4094 VIDs) GVRP

Описание

Комутатор D-Link 12 Port L2 Industrial Smart Manag
