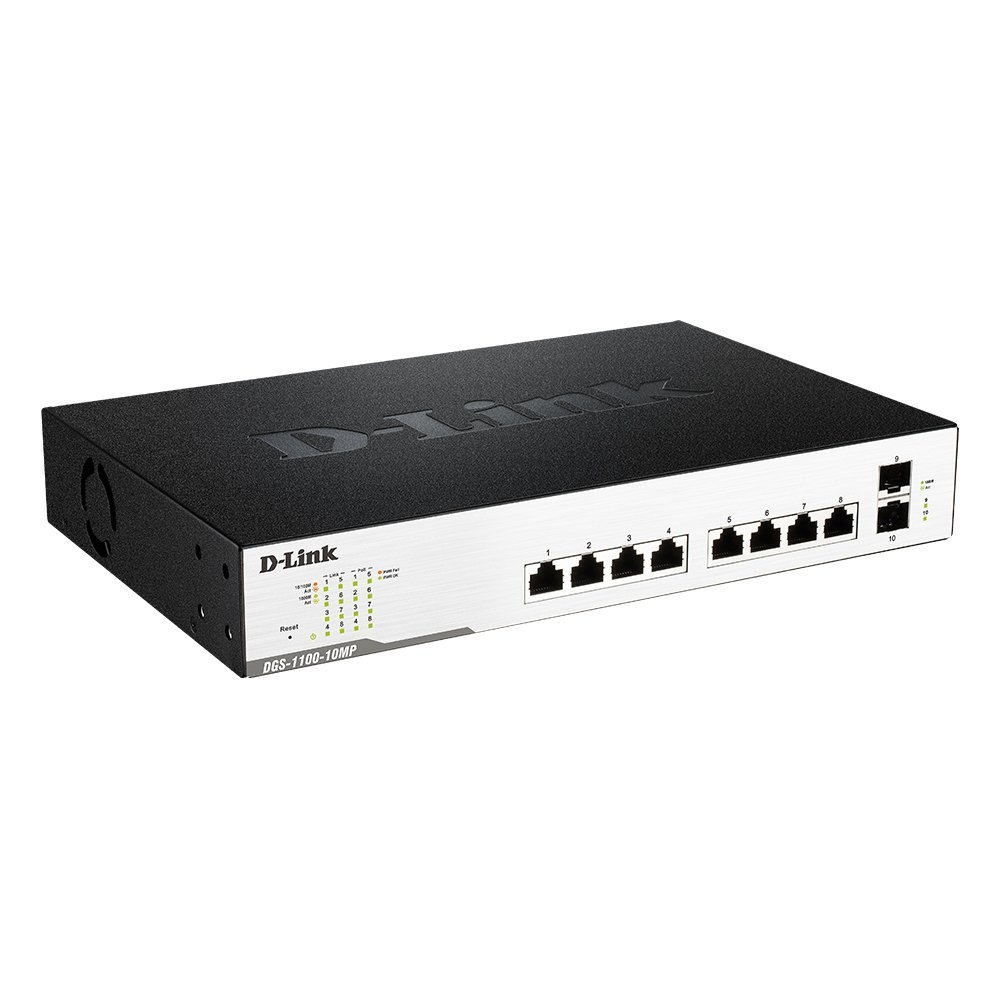

Name: Комутатор D-Link 10-Port PoE+ Gigabit Smart Switch
Brand: D-LINK
SKU: D-LINK-DGS-1100-10MP
Price: 388.00999999999999090505 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Routing:

Layer 2 Only

Размери (Ш, Д, В), mm:

280 x 180 x 44

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1w

Захранване:

Internal Power Supply: 100 - 240 VAC, 50 - 60 Hz

Памет (Flash, RAM):

Flash Memory: 16 MB

Пропускателна способност, Mpps:

14.88 Mpps

Stackable:

Управление:

Web-based GUI (Supports IPv4/IPv6), Client-based Utility (D-Link Network Assistant Utility)

Power Over Ethernet (PoE):

IEEE 802.3af and IEEE 802.3at Standard, Ports 1~8 up to 30 W max. per PoE port, PoE Power Budget: 130 W

Капацитет за маршрутизиране/превключване, Gbps:

20 Gbps

Опция за монтаж:

Desktop/Rackmount

Свободни (10GB) слотове:

QoS:

802.1p Quality of Service 4 queues per port Queue Handling - Strict, Weighted Round Robin (WRR) Port-based Bandwidth Control (Rate Limiting): Ingress - 8Kbps, Egress - 64Kbps

IPv6 functionality:

Суич, тип:

Fixed Port

Uplink портове:

2xSFP

Основни портове, тип:

8x10/100/1000Base-T

L3 мрежови стандарти:

MAC адреси:

16000 MAC address table size

VLAN (брой, стандарти):

Port-based VLAN 802.1Q tagged VLAN Auto Surveillance VLAN Voice VLAN Management VLAN Asymmetric VLAN VLAN Group (Supports 128 static VLAN groups, Max. 4094 VIDs)

Общ брой портове:

Сигурност:

D-Link Safeguard, Traffic Segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, DoS Attack Prevention, SSL

Fans:

1 x Fan

Описание

Комутатор D-Link 10-Port PoE+ Gigabit Smart Switch
