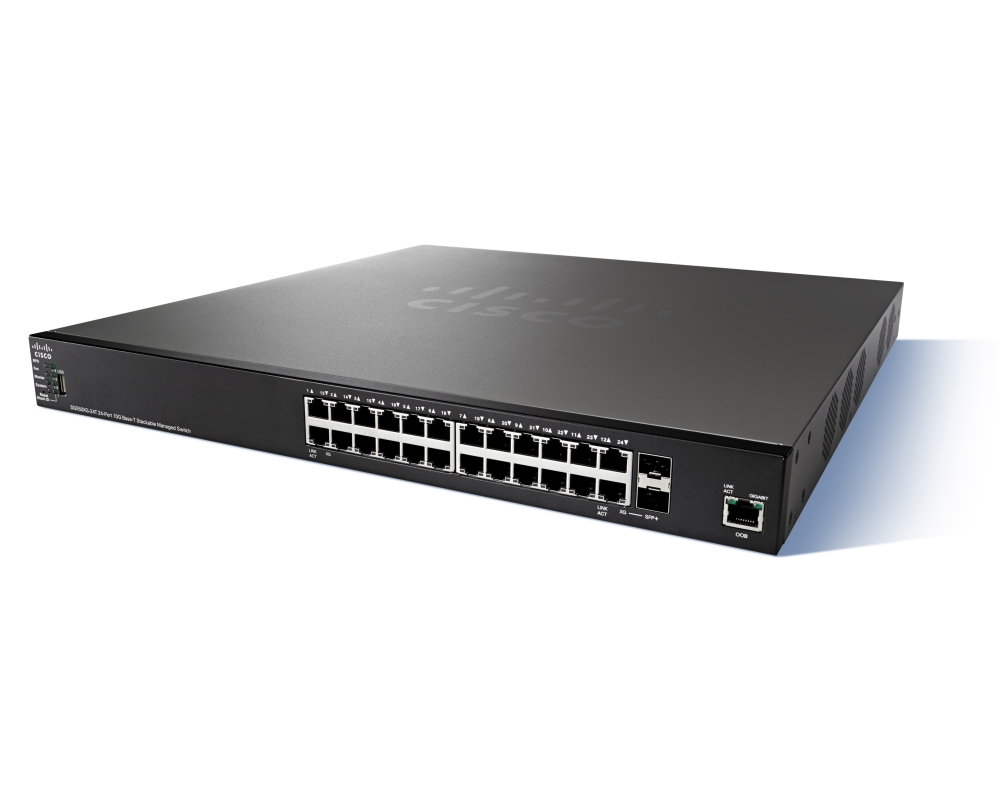

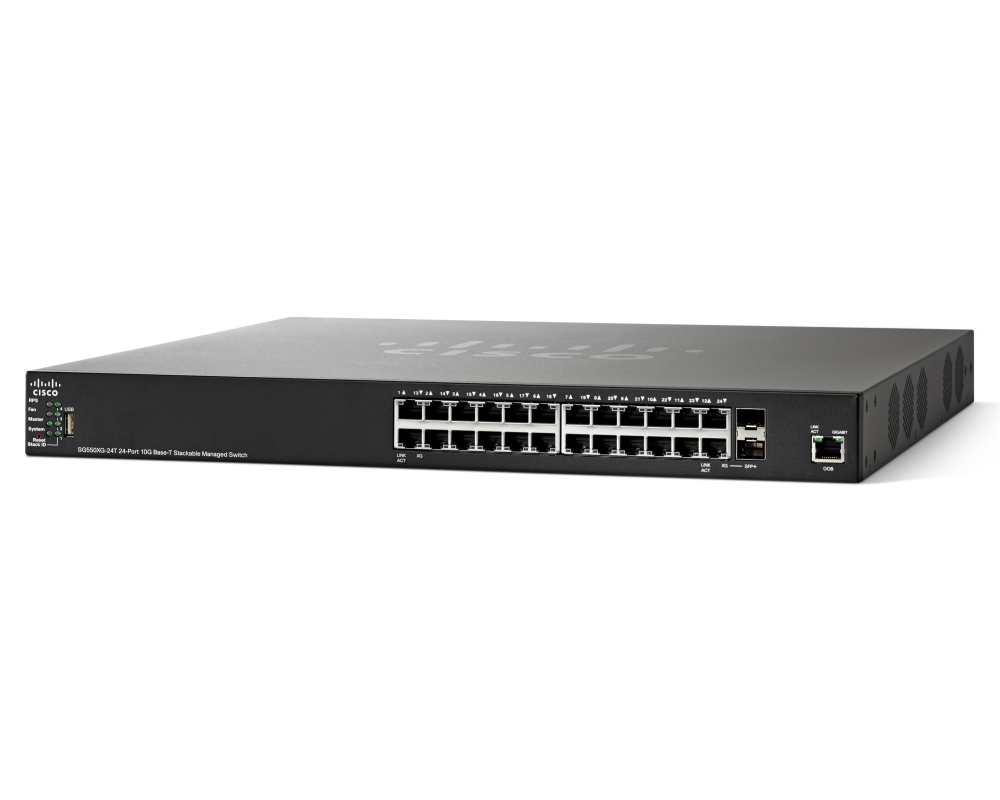

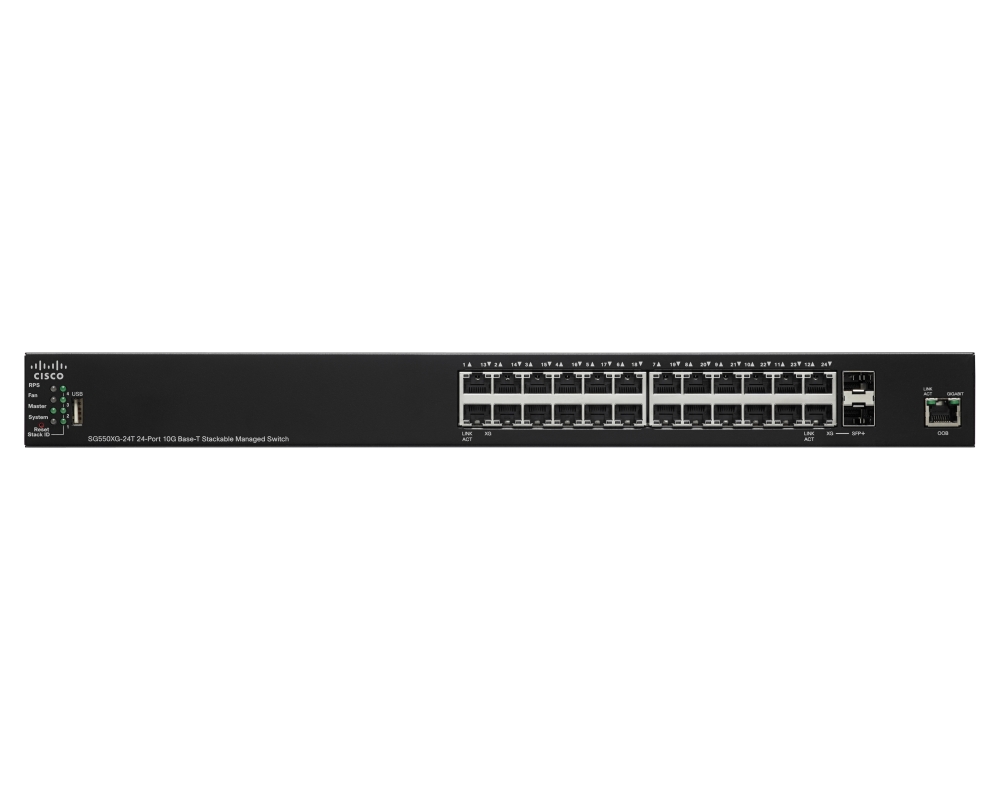

Name: Комутатор Cisco SG550XG-24T 24-Port 10GBase-T Stackable Managed Switch
Brand: CISCO
SKU: CISCO-SG550XG-24T-K9-EU
Price: 7517.93000000000029103830 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Управление:

Web user interface: Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS) SNMP: SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 user-based security model (USM)

QoS:

Priority levels: 8 hardware queues Scheduling: Strict priority and weighted round-robin (WRR) Class of service Rate limiting Congestion avoidance

Stackable:

Hardware stack: Up to 8 units in a stack. Up to 400 ports managed as a single system with hardware failover.

IPv6 functionality:

IPv6 host mode IPv6 over Ethernet Dual IPv6/IPv4 stack IPv6 neighbor and router discovery (ND) IPv6 Stateless Address Autoconfiguration Path MTU Discovery IPv6 over IPv4 network with ISATAP tunnel support USGv6 and IPv6 Gold Logo certified

Общ брой портове:

Пропускателна способност, Mpps:

357.12 Mpps

Основни портове, тип:

22x10GBase-T

Други:

1 GE OOB management

MAC адреси:

64000 MAC address table size

Памет (Flash, RAM):

Flash Memory: 256 MB RAM: 512 MB

Свободни (10GB) слотове:

Fans:

4 + 1 (redundant) fans

Захранване:

Internal power supply: 100-240V, 47-63 Hz Cisco external redundant power supply (RPS2300)

Uplink портове:

2 dual personality

L3 мрежови стандарти:

IPv4 routing: Wirespeed routing of IPv4 packets, Up to 7K routes and up to 256 IP interfaces Wirespeed IPv6 static routing: Up to 7K routes and up to 256 IPv6 interfaces Routing Information Protocol version 2 for dynamic routing VRRP versions 2 an

Капацитет за маршрутизиране/превключване, Gbps:

480 Gbps

Power Over Ethernet (PoE):

Опция за монтаж:

Rack-mountable, 1RU

Суич, тип:

Fixed Port

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.3z, IEEE 802.3x, IEEE 802.1D, IEEE 802.1Q/p VLAN, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X

Сигурност:

SSH SSL IEEE 802.1X (authenticator role) Web-based authentication STP BPDU/Root Guard DHCP snooping Dynamic ARP Inspection (DAI) IP/MAC/Port Binding (IPMB) Secure Core Technology (SCT) Secure Sensitive Data (SSD) DoS prevention RADIUS/TACA

Routing:

Layer 3 RIP

VLAN (брой, стандарти):

Support for up to 4094 active VLANs simultaneously Port-based and 802.1Q tag-based VLANs MAC-based VLAN Management VLAN Private VLAN Guest VLAN Dynamic VLAN

Описание

Комутатор Cisco SG550XG-24T 24-Port 10GBase-T Stac
