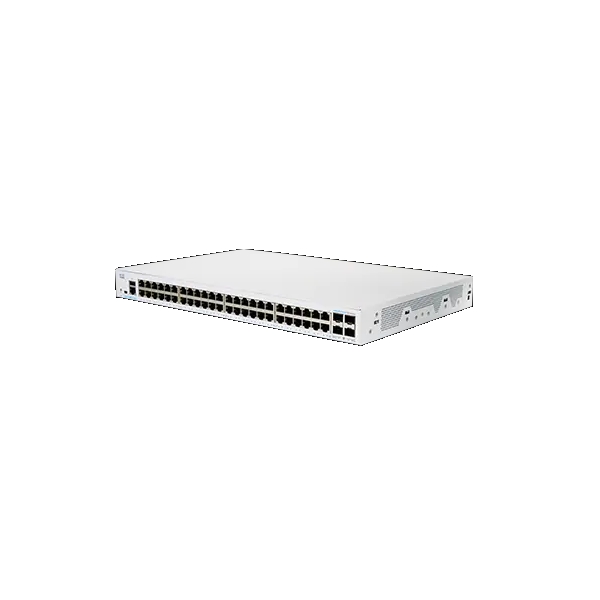

Name: Комутатор Cisco CBS350 Managed 48-port GE, PoE, 4x10G SFP+
Brand: CISCO
SKU: CISCO-CBS350-48P-4X-EU
Price: 2844.40000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Опция за монтаж:

Rackmount

Свободни (10GB) слотове:

QoS:

Priority levels: 8 hardware queues Scheduling: Strict priority and Weighted Round-Robin (WRR) Class of service: Port based 802.1p VLAN priority-based IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based DiffServ ACLs, trusted QoS

Капацитет за маршрутизиране/превключване, Gbps:

176 Gbps

Stackable:

Stackable up to 4 units

Памет (Flash, RAM):

Flash: 256 MB CPU memory: 512 MB, Packet buffer: 3 MB

Uplink портове:

4 x 10G SFP+

IPv6 functionality:

IPv6 host mode IPv6 over Ethernet Dual IPv6/IPv4 stack IPv6 neighbor and router discovery (ND) IPv6 stateless address autoconfiguration MTU discovery DAD ICMP v6 DHCPv6 stateful client ISATAP

Размери (Ш, Д, В), mm:

445 x 350 x 44 mm

Други:

USB Type-A slot on the front panel of the switch for easy file and image management Cisco Standard mini USB Type-B / RJ45 console port

L3 мрежови стандарти:

BOOTP/DHCP

Power Over Ethernet (PoE):

PoE+ (370W) 48 ports

MAC адреси:

16K

Сигурност:

SSL IEEE 802.1X port security ARP IP Source Guard DHCP IPMB IPv6 First Hop Security SCT DoS

Routing:

Layer 3 static routing (IPv4/IPv6 static routing) Support for CIDR Policy-Based Routing

Fans:

1 fan

Основни портове, тип:

RJ-45 10/100/1000 Mbps

Гаранция:

99 месеца

Суич, тип:

Fixed Port, Managed

Пропускателна способност, Mpps:

130.94 Mpps

Управление:

Web based Cisco Business Dashboard on-device UI, CLI, and SNMP

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at, RFC

Общ брой портове:

Захранване:

Internal (100-240V, 50-60 Hz)

VLAN (брой, стандарти):

Support for up to 4094 VLANs simultaneously Port-based and 802.1Q tag-based VLANs MAC/protocol-based VLAN IP subnet-based/Management VLAN Private VLAN PVE Guest/unauthenticated VLAN Dynamic VLAN assignment via RADIUS server Voice/Multicast TV

Описание

Комутатор Cisco CBS350 Managed 48-port GE, PoE, 4x
