Комутатор Cisco Catalyst 9300 48-port UPOE, Networ ... Виж още

Каталожен № на продукта: CISCO-C9300-48U-A
komutator-cisco-catalyst-9300-48-port-upoe-networ-cisco-c9300-48u-a
komutator-cisco-catalyst-9300-48-port-upoe-networ-cisco-c9300-48u-a
0 ревюта | 0 въпроса

  • Power Over Ethernet (PoE) IEEE 802.3at PoE+ Standard. Available PoE Power: 822W, Cisco UPOE extends the IEEE PoE+ standard to double the power per port to 60 watts.
  • Управление SNMPv1, SNMPv2c, and SNMPv3 RMON I and II standards Internet Group Management Protocol (IGMP) CLI TCP UDP
  • Захранване Dual redundant power supplies, Default power supply: PWR-C1-1100WAC
  • Routing Layer 3 Advanced
  • Свободни (10GB) слотове 1 open module slot: Support four optional uplink modules (C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M). Also supported 3850 network modules (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G).

9636.90 €
18848.14 лв.
Неналичен. Цената може да бъде различна, когато отново има наличност.
Добави в Любими
Поръчка по телефон Без формалности
komutator-cisco-catalyst-9300-48-port-upoe-networ-cisco-c9300-48u-a

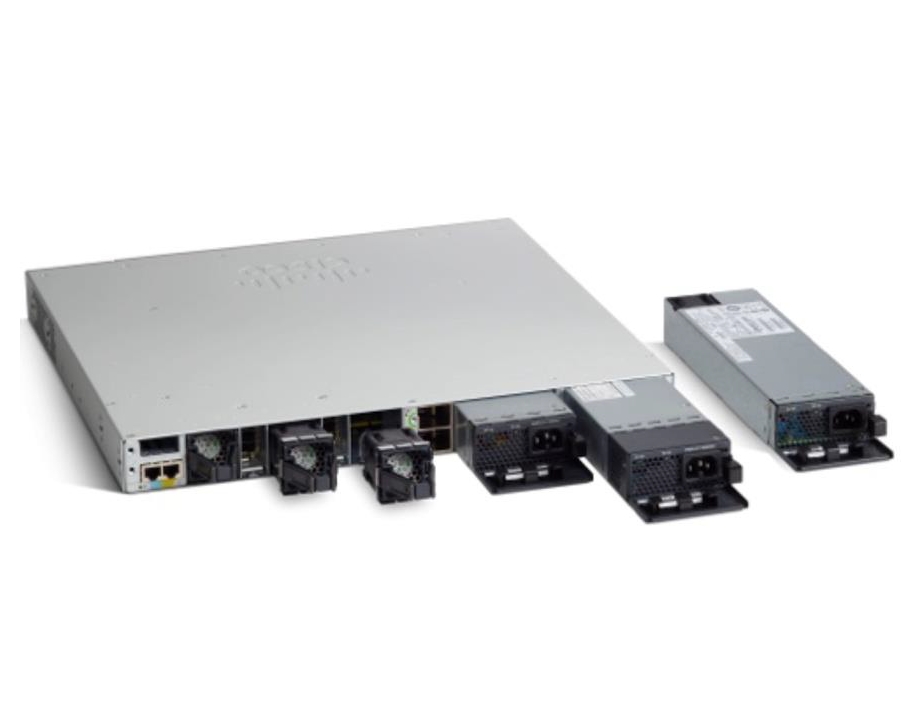

Комутатор Cisco Catalyst 9300 48-port UPOE, Network Advantage
9636.90 € 18848.14 лв.
Характеристики Описание Ревюта Въпроси и отговори
Характеристики
Routing:
Layer 3 Advanced
Други:
Задължителен е минимум 3-годишен лиценз DNA Advantage.
Общ брой портове:
48
Суич, тип:
Fixed Port
Свободни (10GB) слотове:
1 open module slot: Support four optional uplink modules (C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M). Also supported 3850 network modules (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G).
QoS:
Granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, Shaped Round Robin (SRR) scheduling, Committed Information Rate (CIR), and eight egress queues per
Stackable:
Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling
Сигурност:
Encrypted Traffic Analytics (ETA), AES-256 MACsec encryption, Trustworthy systems built with Cisco Trust Anchor Technologies (Image signing, Secure Boot, Cisco Trust Anchor module)
L2 мрежови стандарти:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x, IEEE 802.1AE
Пропускателна способност, Mpps:
190.48 Mpps
L3 мрежови стандарти:
Advanced IP unicast routing protocols: full OSFP, EIGRP, BGPv4, IS-ISv4
Uplink портове:
0
Памет (Flash, RAM):
Flash memory: 16 GB RAM: 8 GB DRAM
MAC адреси:
32000 MAC address table size
Гаранция:
99 месеца
Капацитет за маршрутизиране/превключване, Gbps:
256 Gbps
Fans:
Three field-replaceable fans
IPv6 functionality:
IPv6 routing IPv6 addressing Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
Основни портове, тип:
48x10/100/1000Base-T
Power Over Ethernet (PoE):
IEEE 802.3at PoE+ Standard. Available PoE Power: 822W, Cisco UPOE extends the IEEE PoE+ standard to double the power per port to 60 watts.
VLAN (брой, стандарти):
VLAN IDs: 4000 IEEE 802.1Q VLAN
Управление:
SNMPv1, SNMPv2c, and SNMPv3 RMON I and II standards Internet Group Management Protocol (IGMP) CLI TCP UDP
Опция за монтаж:
Rackmount
Размери (Ш, Д, В), mm:
445 x 445 x 44
Захранване:
Dual redundant power supplies, Default power supply: PWR-C1-1100WAC
Описание

Комутатор Cisco Catalyst 9300 48-port UPOE, Networ
