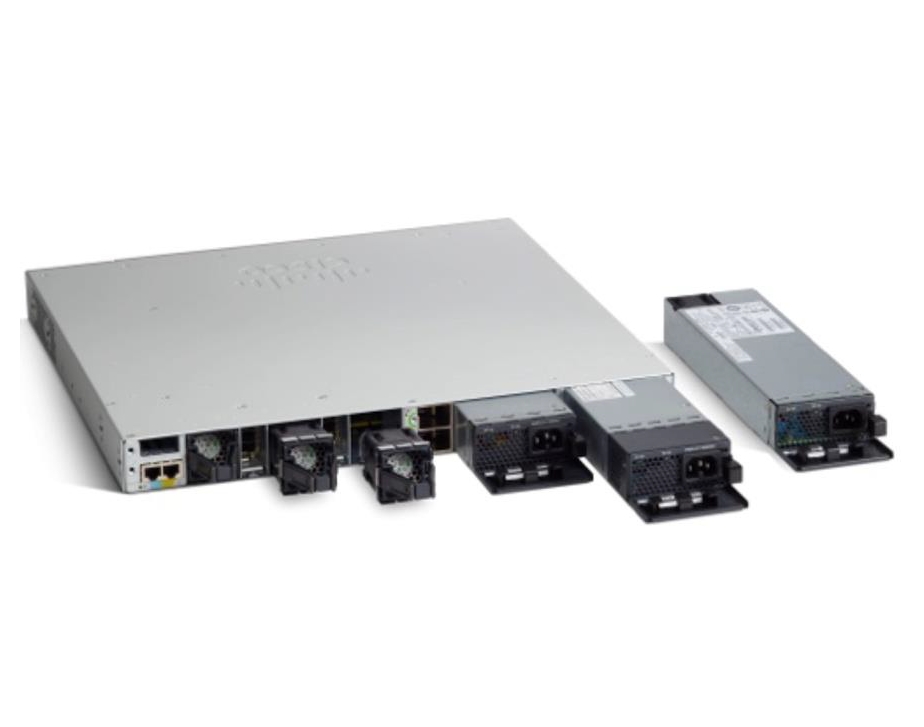

Name: Комутатор Cisco Catalyst 9300 48-port PoE+, Network Essentials
Brand: CISCO
SKU: CISCO-C9300-48P-E
Price: 10006.10000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Гаранция:

99 месеца

QoS:

Granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, Shaped Round Robin (SRR) scheduling, Committed Information Rate (CIR), and eight egress queues per

Пропускателна способност, Mpps:

190.48 Mpps

IPv6 functionality:

IPv6 routing IPv6 addressing Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks

Управление:

SNMPv1, SNMPv2c, and SNMPv3 RMON I and II standards Internet Group Management Protocol (IGMP) CLI TCP UDP

Общ брой портове:

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x, IEEE 802.1AE

VLAN (брой, стандарти):

VLAN IDs: 4000 IEEE 802.1Q VLAN

Power Over Ethernet (PoE):

IEEE 802.3at PoE+ Standard. Available PoE Power: 437W

Захранване:

Dual redundant power supplies, Default power supply: PWR-C1-715WAC

Fans:

Three field-replaceable fans

Опция за монтаж:

Rackmount

Суич, тип:

Fixed Port

Uplink портове:

Основни портове, тип:

48x10/100/1000Base-T

Други:

Задължителен е минимум 3-годишен лиценз DNA Essentials.

Промоция:

Специална цена. Валидност до 23.01.2026г.

Routing:

Layer 3 Advanced

L3 мрежови стандарти:

IP unicast routing protocols: Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Open Shortest Path First [OSPF]

Капацитет за маршрутизиране/превключване, Gbps:

256 Gbps

Свободни (10GB) слотове:

1 open module slot: Support four optional uplink modules (C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M). Also supported 3850 network modules (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G).

Stackable:

Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling

Размери (Ш, Д, В), mm:

445 x 445 x 44

Памет (Flash, RAM):

Flash memory: 16 GB RAM: 8 GB DRAM

Сигурност:

Encrypted Traffic Analytics (ETA), AES-256 MACsec encryption, Trustworthy systems built with Cisco Trust Anchor Technologies (Image signing, Secure Boot, Cisco Trust Anchor module)

MAC адреси:

32000 MAC address table size

Описание

Комутатор Cisco Catalyst 9300 48-port PoE+, Networ
