Name: Комутатор Cisco Catalyst 9300 48-port PoE+, Network Advantage
Brand: CISCO
SKU: CISCO-C9300-48P-A
Price: 10675.20000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Power Over Ethernet (PoE):

IEEE 802.3at PoE+ Standard. Available PoE Power: 437W

Захранване:

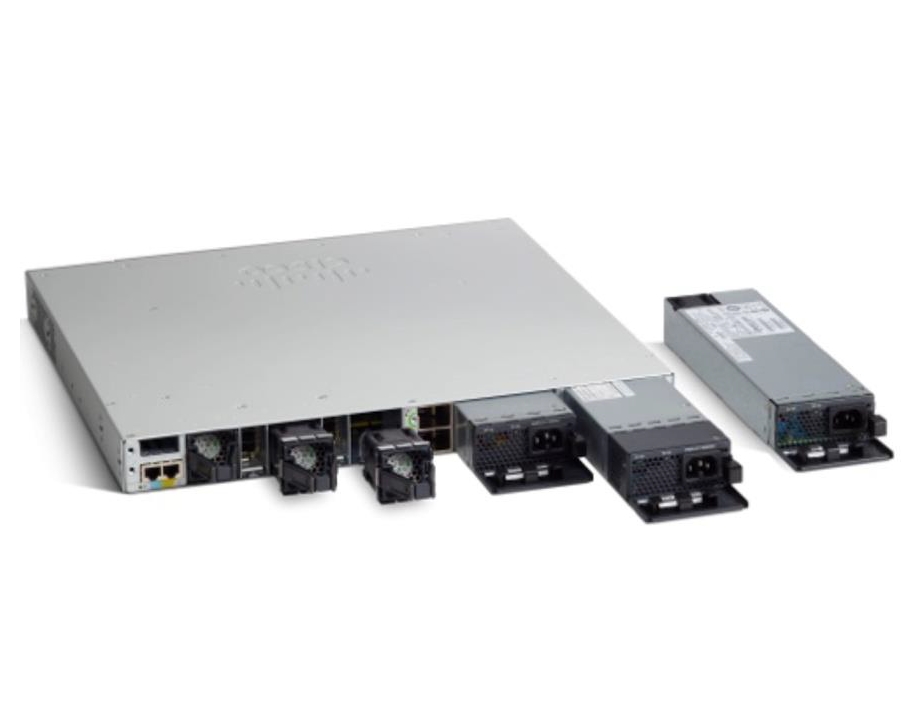

Dual redundant power supplies, Default power supply: PWR-C1-715WAC

Основни портове, тип:

48x10/100/1000Base-T

IPv6 functionality:

IPv6 routing IPv6 addressing Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks

Памет (Flash, RAM):

Flash memory: 16 GB RAM: 8 GB DRAM

L3 мрежови стандарти:

Advanced IP unicast routing protocols: full OSFP, EIGRP, BGPv4, IS-ISv4

Размери (Ш, Д, В), mm:

445 x 445 x 44

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x, IEEE 802.1AE

Свободни (10GB) слотове:

1 open module slot: Support four optional uplink modules (C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M). Also supported 3850 network modules (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G).

Fans:

Three field-replaceable fans

Uplink портове:

Управление:

SNMPv1, SNMPv2c, and SNMPv3 RMON I and II standards Internet Group Management Protocol (IGMP) CLI TCP UDP

Суич, тип:

Fixed Port

Други:

Задължителен е минимум 3-годишен лиценз DNA Advantage.

MAC адреси:

32000 MAC address table size

Капацитет за маршрутизиране/превключване, Gbps:

256 Gbps

QoS:

Granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, Shaped Round Robin (SRR) scheduling, Committed Information Rate (CIR), and eight egress queues per

Опция за монтаж:

Rackmount

Общ брой портове:

VLAN (брой, стандарти):

VLAN IDs: 4000 IEEE 802.1Q VLAN

Stackable:

Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling

Сигурност:

Encrypted Traffic Analytics (ETA), AES-256 MACsec encryption, Trustworthy systems built with Cisco Trust Anchor Technologies (Image signing, Secure Boot, Cisco Trust Anchor module)

Routing:

Layer 3 Advanced

Пропускателна способност, Mpps:

190.48 Mpps

Промоция:

Специална цена. Валидност до 24.10.2025г.

Гаранция:

99 месеца
