Капацитет за маршрутизиране/превключване, Gbps:
208 Gbps
Промоция:
Специална цена. Валидност до 24.10.2025г.
Power Over Ethernet (PoE):
IEEE 802.3at PoE+ Standard. Available PoE Power: 830W, Cisco UPOE extends the IEEE PoE+ standard to double the power per port to 60 watts.
Памет (Flash, RAM):
Flash memory: 16 GB RAM: 8 GB DRAM
Свободни (10GB) слотове:
1 open module slot: Support four optional uplink modules (C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M). Also supported 3850 network modules (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G).
Routing:
Layer 3 Advanced
Stackable:
Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling
IPv6 functionality:
IPv6 routing IPv6 addressing Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
Основни портове, тип:
24x10/100/1000Base-T
L3 мрежови стандарти:
IP unicast routing protocols: Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Open Shortest Path First [OSPF]
L2 мрежови стандарти:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x, IEEE 802.1AE
Опция за монтаж:
Rackmount
Сигурност:
Encrypted Traffic Analytics (ETA), AES-256 MACsec encryption, Trustworthy systems built with Cisco Trust Anchor Technologies (Image signing, Secure Boot, Cisco Trust Anchor module)
MAC адреси:
32000 MAC address table size
QoS:
Granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, Shaped Round Robin (SRR) scheduling, Committed Information Rate (CIR), and eight egress queues per
Пропускателна способност, Mpps:
154.76 Mpps
Други:
Задължителен е минимум 3-годишен лиценз DNA Essentials.
VLAN (брой, стандарти):
VLAN IDs: 4000 IEEE 802.1Q VLAN
Управление:
SNMPv1, SNMPv2c, and SNMPv3 RMON I and II standards Internet Group Management Protocol (IGMP) CLI TCP UDP
Размери (Ш, Д, В), mm:
445 x 445 x 44
Захранване:

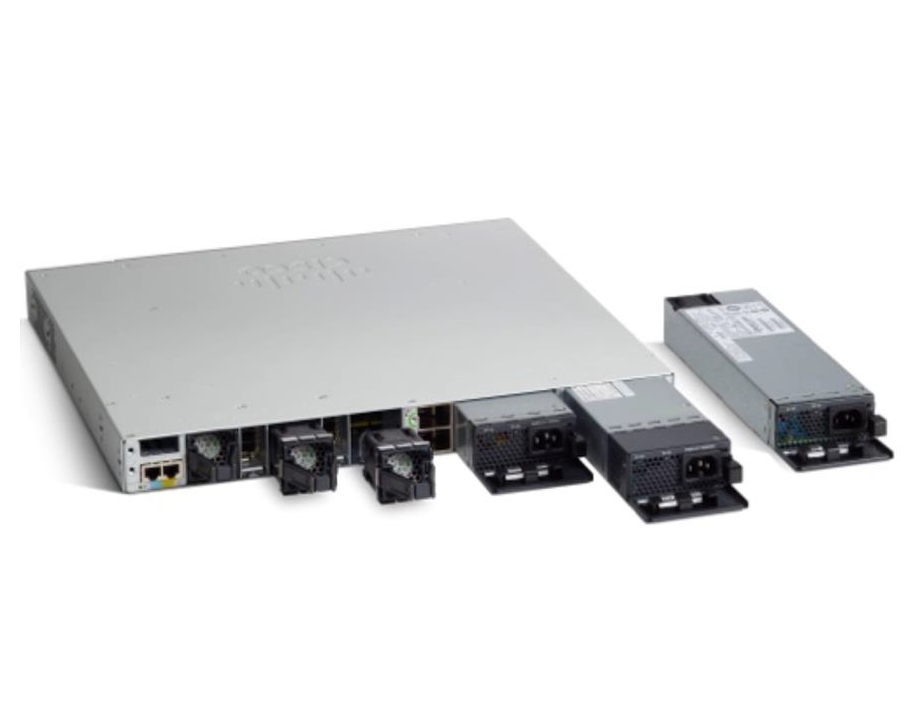

Dual redundant power supplies, Default power supply: PWR-C1-1100WAC
Fans:
Three field-replaceable fans
