Комутатор Cisco Catalyst 9300 24-port UPOE, Networ ... Виж още

Каталожен № на продукта: CISCO-C9300-24U-A
komutator-cisco-catalyst-9300-24-port-upoe-networ-cisco-c9300-24u-a
komutator-cisco-catalyst-9300-24-port-upoe-networ-cisco-c9300-24u-a
0 ревюта | 0 въпроса

  • Капацитет за маршрутизиране/превключване, Gbps 208 Gbps
  • Опция за монтаж Rackmount
  • Основни портове, тип 24x10/100/1000Base-T
  • Fans Three field-replaceable fans
  • IPv6 functionality IPv6 routing IPv6 addressing Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks

5523.30 €
10802.64 лв.
Неналичен. Цената може да бъде различна, когато отново има наличност.
Добави в Любими
Поръчка по телефон Без формалности
komutator-cisco-catalyst-9300-24-port-upoe-networ-cisco-c9300-24u-a

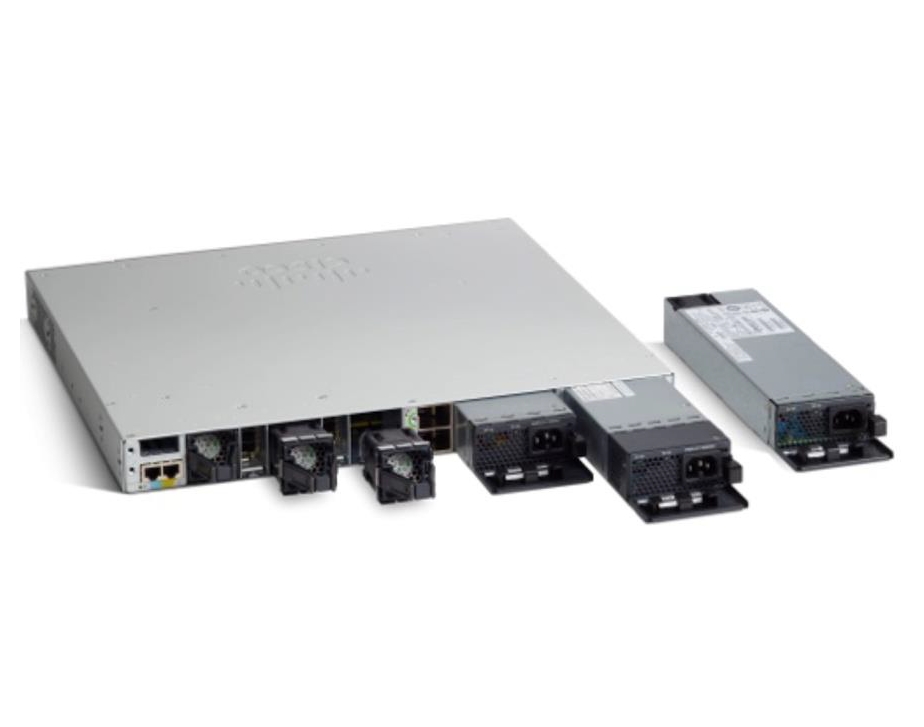

Комутатор Cisco Catalyst 9300 24-port UPOE, Network Advantage
5523.30 € 10802.64 лв.
Характеристики Описание Ревюта Въпроси и отговори
Характеристики
Сигурност:
Encrypted Traffic Analytics (ETA), AES-256 MACsec encryption, Trustworthy systems built with Cisco Trust Anchor Technologies (Image signing, Secure Boot, Cisco Trust Anchor module)
Капацитет за маршрутизиране/превключване, Gbps:
208 Gbps
Гаранция:
99 месеца
Stackable:
Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling
QoS:
Granular wireless bandwidth management and fair sharing, 802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification, Shaped Round Robin (SRR) scheduling, Committed Information Rate (CIR), and eight egress queues per
Размери (Ш, Д, В), mm:
445 x 445 x 44
Памет (Flash, RAM):
Flash memory: 16 GB RAM: 8 GB DRAM
Суич, тип:
Fixed Port
L3 мрежови стандарти:
Advanced IP unicast routing protocols: full OSFP, EIGRP, BGPv4, IS-ISv4
Пропускателна способност, Mpps:
154.76 Mpps
Опция за монтаж:
Rackmount
Основни портове, тип:
24x10/100/1000Base-T
Power Over Ethernet (PoE):
IEEE 802.3at PoE+ Standard. Available PoE Power: 830W, Cisco UPOE extends the IEEE PoE+ standard to double the power per port to 60 watts.
Fans:
Three field-replaceable fans
Други:
Задължителен е минимум 3-годишен лиценз DNA Advantage.
Routing:
Layer 3 Advanced
MAC адреси:
32000 MAC address table size
Захранване:
Dual redundant power supplies, Default power supply: PWR-C1-1100WAC
VLAN (брой, стандарти):
VLAN IDs: 4000 IEEE 802.1Q VLAN
Свободни (10GB) слотове:
1 open module slot: Support four optional uplink modules (C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M). Also supported 3850 network modules (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G).
IPv6 functionality:
IPv6 routing IPv6 addressing Dual-stack support for IPv4/IPv6 and dynamic hardware forwarding table allocations, for ease of IPv4-to-IPv6 migration IPv6 support in hardware, providing wire-rate forwarding for IPv6 networks
Uplink портове:
0
Общ брой портове:
24
Управление:
SNMPv1, SNMPv2c, and SNMPv3 RMON I and II standards Internet Group Management Protocol (IGMP) CLI TCP UDP
L2 мрежови стандарти:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x, IEEE 802.1AE
Описание

Комутатор Cisco Catalyst 9300 24-port UPOE, Networ
