Комутатор Cisco Catalyst 3850 48 Port Full PoE LAN ... Base Виж още

Name: Комутатор Cisco Catalyst 3850 48 Port Full PoE LAN Base
Brand: CISCO
SKU: CISCO-WS-C3850-48F-L
Price: 17008.22999999999956344254 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: CISCO-WS-C3850-48F-L

komutator-cisco-catalyst-3850-48-port-full-poe-lan-cisco-ws-c3850-48f-l

0 ревюта | 0 въпроса

Опция за монтаж Rackmount
Power Over Ethernet (PoE) IEEE 802.3at (PoE+) with 30W power on all ports. Available PoE Power: 800W

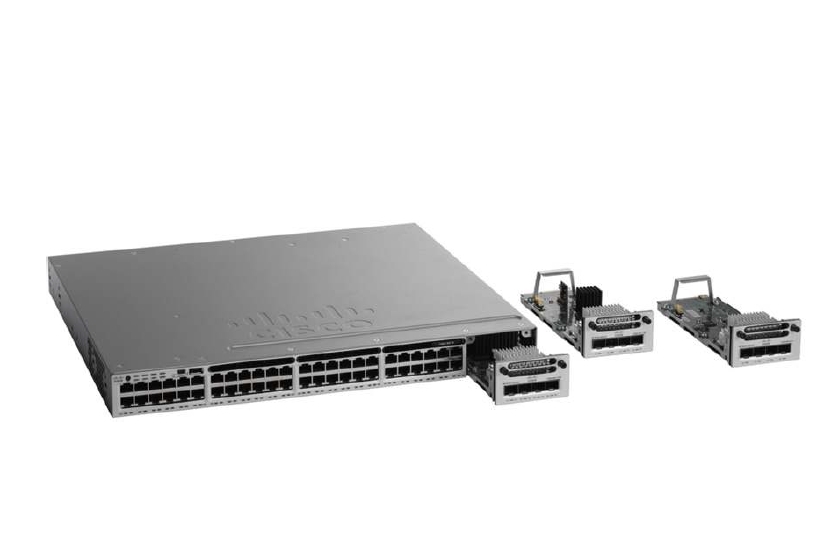

Свободни (10GB) слотове 1 open module slot: Support three optional uplink modules with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G)
Други System Software: LAN Base(Enterprise access layer 2 switching features)
Памет (Flash, RAM) Flash Memory: 2GB RAM: 4GB DRAM

Сравни

20409.88 лв.

(-17%)

10435.40 €

17008.23 лв.

8696.17 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Routing:

Layer 2 Lite

Пропускателна способност, Mpps:

130.95 Mpps

Stackable:

Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput Total routed ports per 3850 stack: 208 Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.1s, IEEE 802.1w, IEEE 802.11, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3ad, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS prioritization, IEEE 802.1Q VLAN

Капацитет за маршрутизиране/превключване, Gbps:

176 Gbps

Опция за монтаж:

Rackmount

Power Over Ethernet (PoE):

IEEE 802.3at (PoE+) with 30W power on all ports. Available PoE Power: 800W

Захранване:

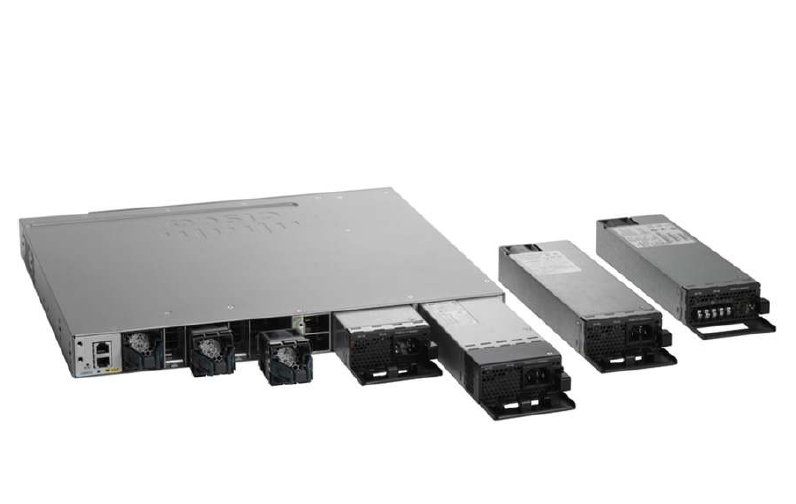

Dual Redundant Modular Power Supplies.

Сигурност:

Port security DHCP snooping Dynamic ARP inspection (DAI) IP source guard Unicast Reverse Path Forwarding (RPF) Bidirectional data support on the SPAN port 802.1X, MAC authentication bypass ACLs SSH TACACS+ and RADIUS authentication

Общ брой портове:

Uplink портове:

VLAN (брой, стандарти):

VLAN IDs: 4000 IEEE 802.1Q VLAN

Други:

System Software: LAN Base(Enterprise access layer 2 switching features)

MAC адреси:

32000 MAC address table size

Памет (Flash, RAM):

Flash Memory: 2GB RAM: 4GB DRAM

Основни портове, тип:

48x10/100/1000Base-T

Управление:

SNMPv1, SNMPv2c, and SNMPv3 RMON TFTP Internet Group Management Protocol (IGMP) v1, v2, v3 Telnet CLI TCP UDP

Свободни (10GB) слотове:

1 open module slot: Support three optional uplink modules with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G)

L3 мрежови стандарти:

Limited static routing with the LAN Base feature set

Размери (Ш, Д, В), mm:

445 x 488 x 45

Fans:

Three field-replaceable fans.

Суич, тип:

Fixed Port

QoS:

802.1p CoS and DSCP field classification is provided 8 egress queues per port for wired traffic and 4 egress queues for wireless

IPv6 functionality:

IPv6 routing, IPv6 ACLs can be applied to filter IPv6 traffic
