Комутатор Cisco Catalyst 3850 48 Port Full PoE IP ... Base Виж още

Name: Комутатор Cisco Catalyst 3850 48 Port Full PoE IP Base
Brand: CISCO
SKU: CISCO-WS-C3850-48F-S
Price: 20223.29999999999927240424 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: CISCO-WS-C3850-48F-S

komutator-cisco-catalyst-3850-48-port-full-poe-ip-cisco-ws-c3850-48f-s

0 ревюта | 0 въпроса

Опция за монтаж Rackmount
MAC адреси 32000 MAC address table size
L2 мрежови стандарти IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.1s, IEEE 802.1w, IEEE 802.11, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3ad, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS prioritization, IEEE 802.1Q VLAN
Капацитет за маршрутизиране/превключване, Gbps 176 Gbps

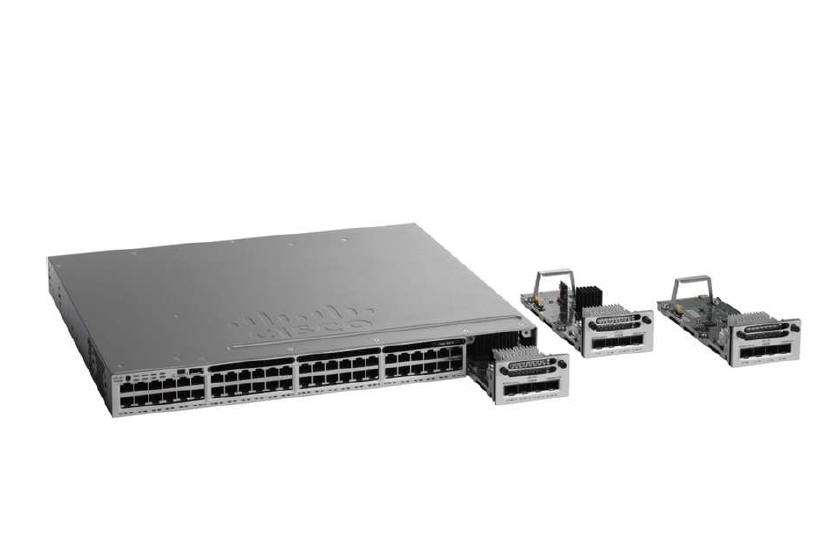

Свободни (10GB) слотове 1 open module slot: Support three optional uplink modules with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G)

Сравни

24267.96 лв.

(-17%)

12408.01 €

20223.30 лв.

10340.01 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Суич, тип:

Fixed Port

Основни портове, тип:

48x10/100/1000Base-T

Памет (Flash, RAM):

Flash Memory: 2GB RAM: 4GB DRAM

Управление:

SNMPv1, SNMPv2c, and SNMPv3 RMON TFTP Internet Group Management Protocol (IGMP) v1, v2, v3 Telnet CLI TCP UDP

IPv6 functionality:

IPv6 routing, IPv6 ACLs can be applied to filter IPv6 traffic

Опция за монтаж:

Rackmount

Свободни (10GB) слотове:

1 open module slot: Support three optional uplink modules with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G)

Routing:

Layer 3 RIP

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at, IEEE 802.1s, IEEE 802.1w, IEEE 802.11, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3ad, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS prioritization, IEEE 802.1Q VLAN

Капацитет за маршрутизиране/превключване, Gbps:

176 Gbps

Други:

System Software: IP Base(Enterprise access layer 3 switching features)

Общ брой портове:

QoS:

802.1p CoS and DSCP field classification is provided 8 egress queues per port for wired traffic and 4 egress queues for wireless

L3 мрежови стандарти:

IP unicast routing protocols (static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Enhanced Interior Gateway Routing Protocol [EIGRP] stub)

Захранване:

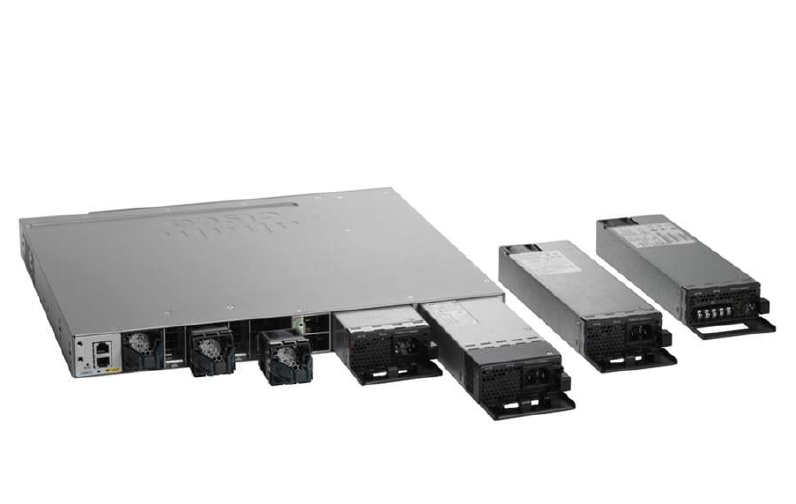

Dual Redundant Modular Power Supplies.

Fans:

Three field-replaceable fans.

Пропускателна способност, Mpps:

130.95 Mpps

VLAN (брой, стандарти):

VLAN IDs: 4000 IEEE 802.1Q VLAN

Uplink портове:

Power Over Ethernet (PoE):

IEEE 802.3at (PoE+) with 30W power on all ports. Available PoE Power: 800W

Stackable:

Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput Total routed ports per 3850 stack: 208 Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling

Размери (Ш, Д, В), mm:

445 x 488 x 45

Сигурност:

Port security DHCP snooping Dynamic ARP inspection (DAI) IP source guard Unicast Reverse Path Forwarding (RPF) Bidirectional data support on the SPAN port 802.1X, MAC authentication bypass ACLs SSH TACACS+ and RADIUS authentication

MAC адреси:

32000 MAC address table size

Описание

Комутатор Cisco Catalyst 3850 48 Port Full PoE IP
