Name: Комутатор Cisco Catalyst 3850 48 Port Data IP Services
Brand: CISCO
SKU: CISCO-WS-C3850-48T-E
Price: 27701.52000000000043655746 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

QoS:

802.1p CoS and DSCP field classification is provided 8 egress queues per port for wired traffic and 4 egress queues for wireless

Stackable:

Cisco StackWise-480 technology provides scalability and resiliency with 480 Gbps of stack throughput Total routed ports per 3850 stack: 208 Cisco StackWise-480 stacking ports: copper-based Cisco StackWise cabling

Power Over Ethernet (PoE):

Общ брой портове:

Захранване:

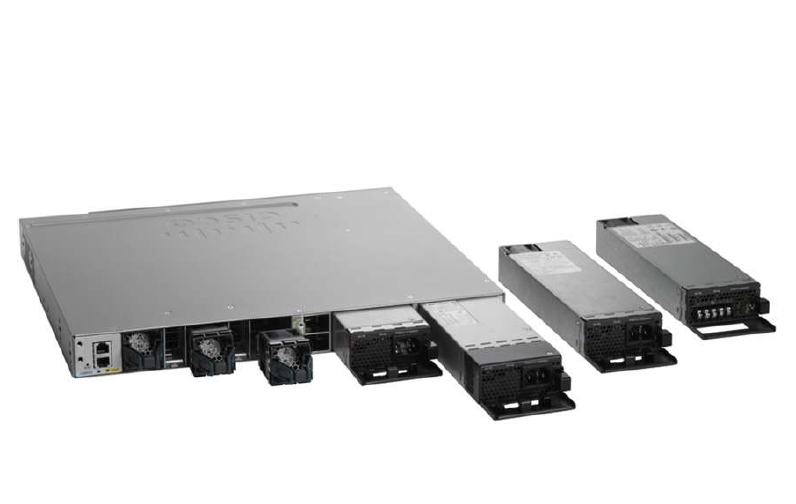

Dual Redundant Modular Power Supplies.

Uplink портове:

Памет (Flash, RAM):

Flash Memory: 2GB RAM: 4GB DRAM

Пропускателна способност, Mpps:

130.95 Mpps

Суич, тип:

Fixed Port

Капацитет за маршрутизиране/превключване, Gbps:

176 Gbps

Свободни (10GB) слотове:

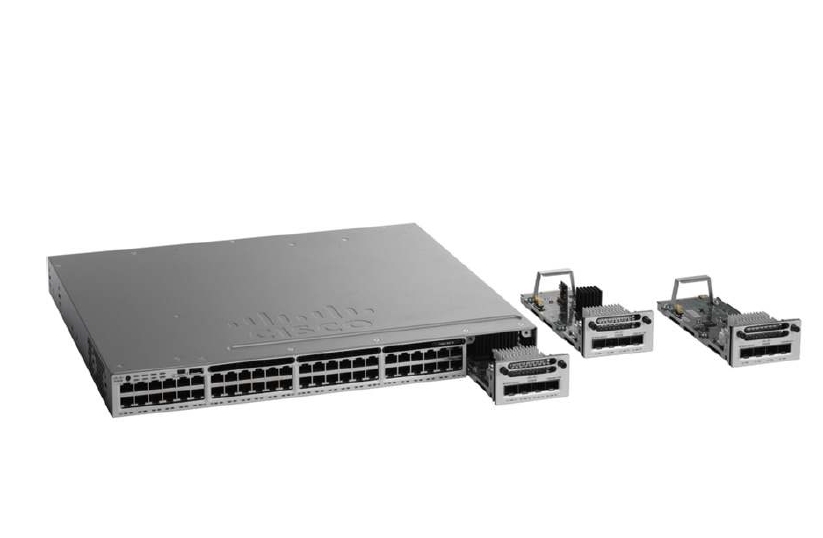

1 open module slot: Support three optional uplink modules with 4 x Gigabit Ethernet, 2 x 10 Gigabit Ethernet, or 4 x 10 Gigabit Ethernet ports (C3850-NM-4-1G, C3850-NM-2-10G, C3850-NM-4-10G)

Управление:

SNMPv1, SNMPv2c, and SNMPv3 RMON TFTP Internet Group Management Protocol (IGMP) v1, v2, v3 Telnet CLI TCP UDP

L3 мрежови стандарти:

Advanced IP unicast routing protocols: full OSFP, EIGRP, BGPv4, IS-ISv4

Сигурност:

Port security DHCP snooping Dynamic ARP inspection (DAI) IP source guard Unicast Reverse Path Forwarding (RPF) Bidirectional data support on the SPAN port 802.1X, MAC authentication bypass ACLs SSH TACACS+ and RADIUS authentication

Други:

System Software: IP Services(Advanced enterprise layer 3 switching (IPv4 and IPv6) features)

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1s, IEEE 802.1w, IEEE 802.11, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3ad, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1p CoS prioritization, IEEE 802.1Q VLAN

Routing:

Layer 3 Advanced

Fans:

Three field-replaceable fans.

VLAN (брой, стандарти):

VLAN IDs: 4000 IEEE 802.1Q VLAN

MAC адреси:

32000 MAC address table size

IPv6 functionality:

IPv6 routing, IPv6 ACLs can be applied to filter IPv6 traffic

Опция за монтаж:

Rackmount
