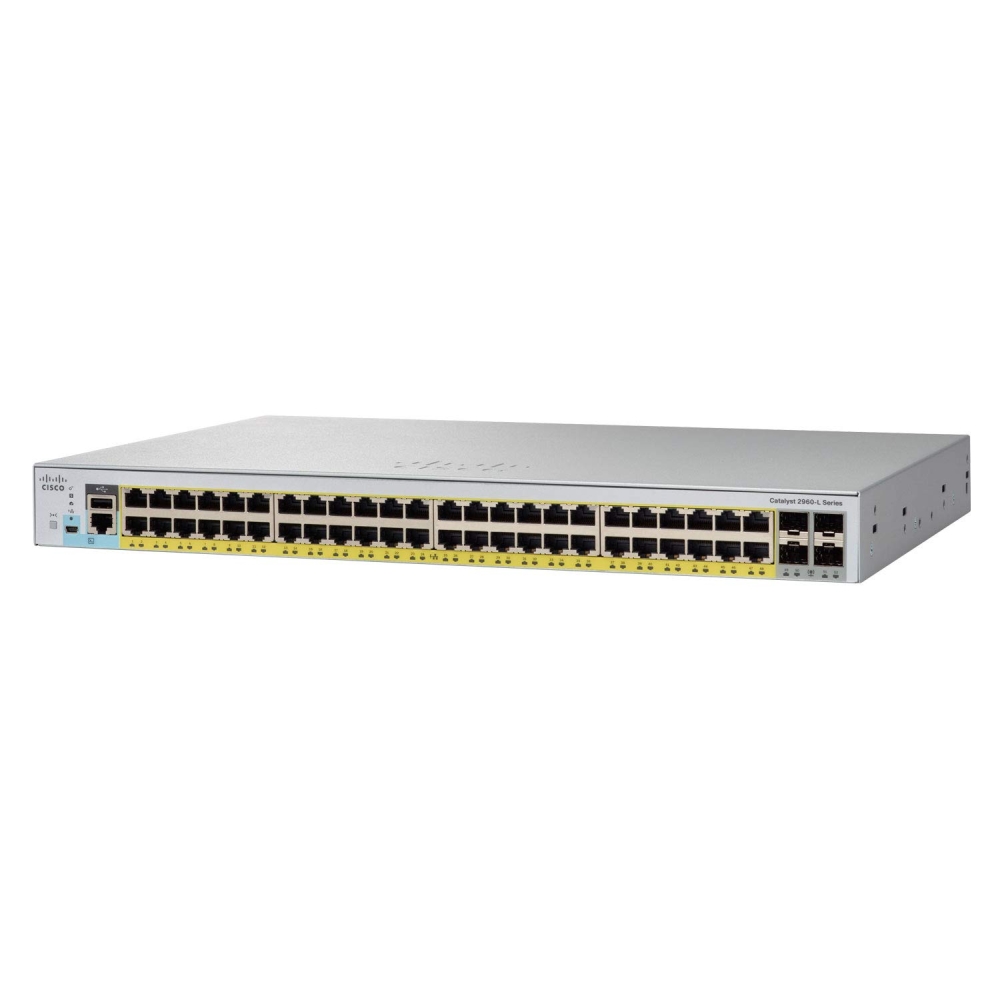

Name: Комутатор Cisco Catalyst 2960L,Smart Managed, 48p GigE, 4x10G SFP+, LAN Lite
Brand: CISCO
SKU: CISCO-WS-C2960L-SM-48TQ
Price: 6485.80000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Fans:

Fanless design

Свободни (10GB) слотове:

Stackable:

IPv6 functionality:

IPv6 unicast direct routes: 414 IPv6 unicast indirect routes: 128 IPv6 static routes: 16 IPv6 multicast groups: 1024 IPv6 security ACEs: 256

Power Over Ethernet (PoE):

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.

Опция за монтаж:

Desktop/Rackmount

Гаранция:

99 месеца

Управление:

SNMP, web UI, Bluetooth for over-the-air access, Virtual Stacking, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), RMON, TCP

Общ брой портове:

Памет (Flash, RAM):

Flash memory: 256 MB RAM: 512 MB DRAM

VLAN (брой, стандарти):

Maximum active VLANs: 256 VLAN IDs available: 4094 IEEE 802.1Q VLAN

Основни портове, тип:

48x10/100/1000Base-T

Други:

1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A port for storage and Bluetooth console

Uplink портове:

4x 10G SFP+

Routing:

Layer 2 Only

L3 мрежови стандарти:

RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery, RFC 792 - ICMP, RFC 791 - IP, RFC 793 - TCP, RFC 768 - UDP

Сигурност:

Comprehensive 802.1X 802.1x support with NEAT Disable per-VLAN MAC learning Multidomain/AAA command authorization ACLS Port-based ACLs SSH, Kerberos, and SNMPv3 SPAN TACACS+/ RADIUS/MAC authentication MAC address/Web notification BPDU and e

Захранване:

Single fixed power supply, 110 to 220V AC

Суич, тип:

Fixed Port

Размери (Ш, Д, В), mm:

445 x 240 x 44

QoS:

Up to eight egress queues and two thresholds per port Ingress policing DSCP Traffic Classification Trust Boundary Auto-QoS Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD) 802.1p Class of Service (CoS)

Пропускателна способност, Mpps:

77.38 Mpps

MAC адреси:

16000 MAC address table size

Капацитет за маршрутизиране/превключване, Gbps:

104 Gbps

Описание

Комутатор Cisco Catalyst 2960L,Smart Managed, 48p

Виж повече caret
