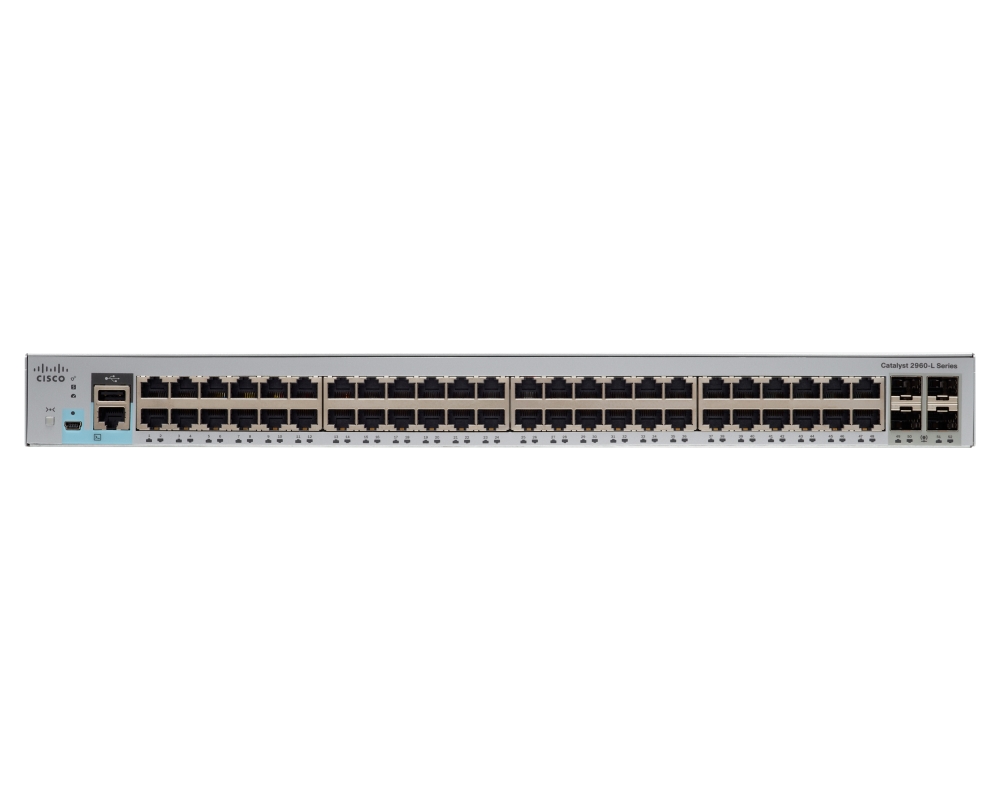

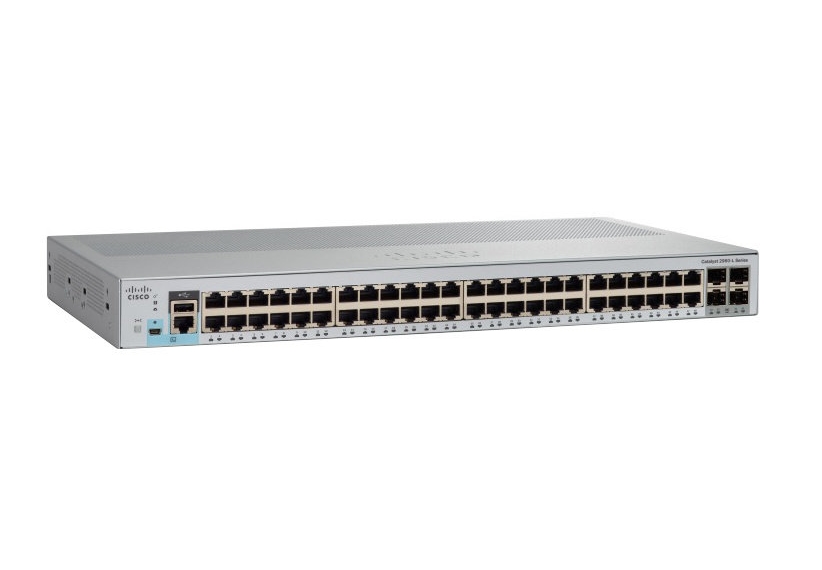

Name: Комутатор Cisco Catalyst 2960L Smart Managed, 48p, GigE, 4x1G SFP, LAN Lite
Brand: CISCO
SKU: CISCO-WS-C2960L-SM-48TS
Price: 2121.20000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Общ брой портове:

VLAN (брой, стандарти):

Maximum active VLANs: 256 VLAN IDs available: 4094 IEEE 802.1Q VLAN

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.

Routing:

Layer 2 Only

Основни портове, тип:

48x10/100/1000Base-T

Uplink портове:

4xSFP

MAC адреси:

16000 MAC address table size

Управление:

SNMP, web UI, Bluetooth for over-the-air access, Virtual Stacking, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), RMON, TCP

Капацитет за маршрутизиране/превключване, Gbps:

104 Gbps

Памет (Flash, RAM):

Flash memory: 256 MB RAM: 512 MB DRAM

Други:

1x RJ45, 1x USB mini-B, 1x USB-A port for storage and Bluetooth console

Гаранция:

99 месеца

Сигурност:

Comprehensive 802.1X 802.1x support with NEAT Disable per-VLAN MAC learning Multidomain/AAA command authorization ACLS Port-based ACLs SSH, Kerberos, and SNMPv3 SPAN TACACS+/ RADIUS/MAC authentication MAC address/Web notification BPDU and e

Power Over Ethernet (PoE):

Размери (Ш, Д, В), mm:

445 x 240 x 44

IPv6 functionality:

IPv6 unicast direct routes: 414 IPv6 unicast indirect routes: 128 IPv6 static routes: 16 IPv6 multicast groups: 1024 IPv6 security ACEs: 256

L3 мрежови стандарти:

RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery, RFC 792 - ICMP, RFC 791 - IP, RFC 793 - TCP, RFC 768 - UDP

Опция за монтаж:

Desktop/Rackmount

Fans:

Fanless design

Пропускателна способност, Mpps:

77.38 Mpps

Захранване:

Single fixed power supply, 110 to 220V AC

Stackable:

Свободни (10GB) слотове:

Суич, тип:

Fixed Port

QoS:

Up to eight egress queues and two thresholds per port Ingress policing DSCP Traffic Classification Trust Boundary Auto-QoS Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD) 802.1p Class of Service (CoS)

Описание

Комутатор Cisco Catalyst 2960L Smart Managed, 48p,

Виж повече caret
