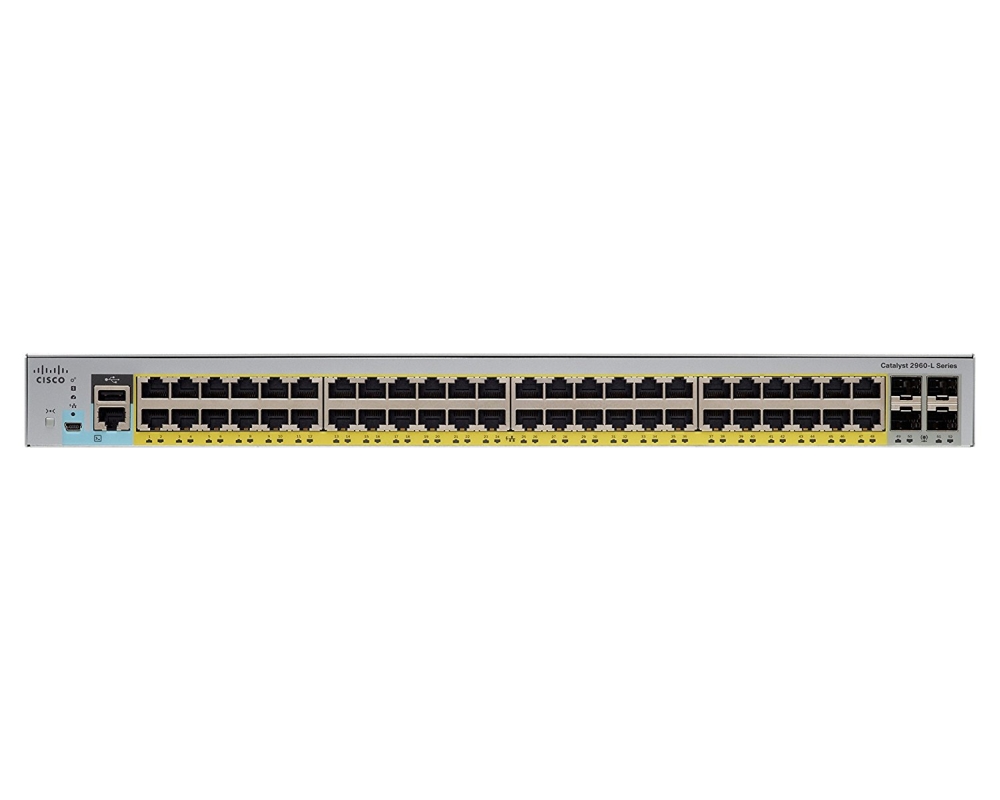

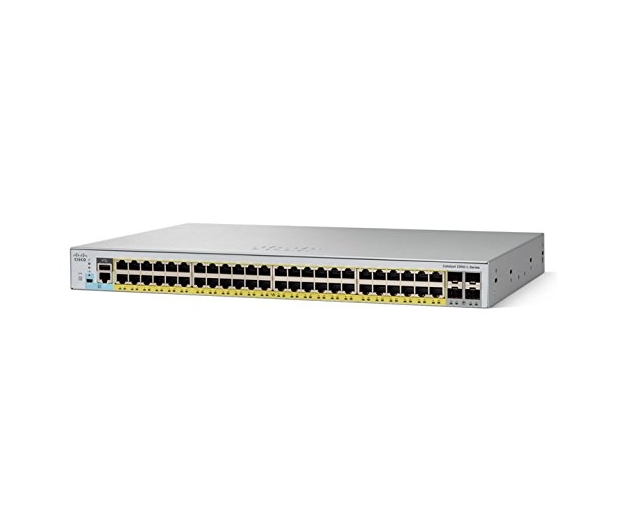

Name: Комутатор Cisco Catalyst 2960L Smart Managed 48 port Gig, PoE+, 4x10G SFP+, LAN Lite
Brand: CISCO
SKU: CISCO-WS-C2960L-SM-48PQ
Price: 9749.20000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Сигурност:

Comprehensive 802.1X 802.1x support with NEAT Disable per-VLAN MAC learning Multidomain/AAA command authorization ACLS Port-based ACLs SSH, Kerberos, and SNMPv3 SPAN TACACS+/ RADIUS/MAC authentication MAC address/Web notification BPDU and e

Fans:

Fanless design

Управление:

SNMP, web UI, Bluetooth for over-the-air access, Virtual Stacking, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), RMON, TCP

Основни портове, тип:

48x10/100/1000Base-T

Свободни (10GB) слотове:

Размери (Ш, Д, В), mm:

445 x 292 x 44

Суич, тип:

Fixed Port

Routing:

Layer 2 Only

Stackable:

QoS:

Up to eight egress queues and two thresholds per port Ingress policing DSCP Traffic Classification Trust Boundary Auto-QoS Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD) 802.1p Class of Service (CoS)

Памет (Flash, RAM):

Flash memory: 256 MB RAM: 512 MB DRAM

VLAN (брой, стандарти):

Maximum active VLANs: 256 VLAN IDs available: 4094 IEEE 802.1Q VLAN

IPv6 functionality:

IPv6 unicast direct routes: 414 IPv6 unicast indirect routes: 128 IPv6 static routes: 16 IPv6 multicast groups: 1024 IPv6 security ACEs: 256

Опция за монтаж:

Desktop/Rackmount

Пропускателна способност, Mpps:

77.38 Mpps

L3 мрежови стандарти:

RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery, RFC 792 - ICMP, RFC 791 - IP, RFC 793 - TCP, RFC 768 - UDP

Захранване:

Single fixed power supply, 110 to 220V AC

MAC адреси:

16000 MAC address table size

Гаранция:

99 месеца

Общ брой портове:

Power Over Ethernet (PoE):

Support both IEEE 802.3af Power over Ethernet (PoE) and IEEE 802.3at PoE+ (up to 30W per port). Available PoE Power: 370W

Капацитет за маршрутизиране/превключване, Gbps:

104 Gbps

Uplink портове:

4x 10G SFP+

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.

Други:

1x RJ45, 1x USB mini-B, 1x USB-A port for storage and Bluetooth console

Описание

Комутатор Cisco Catalyst 2960L Smart Managed 48 po
