Комутатор Cisco Catalyst 2960L Smart Managed 24 po ... rt Gig, PoE+, 4x10G SFP+, LAN Lite Виж още

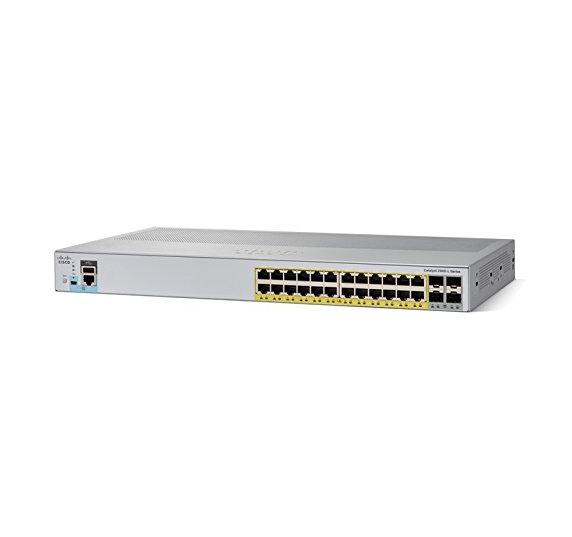

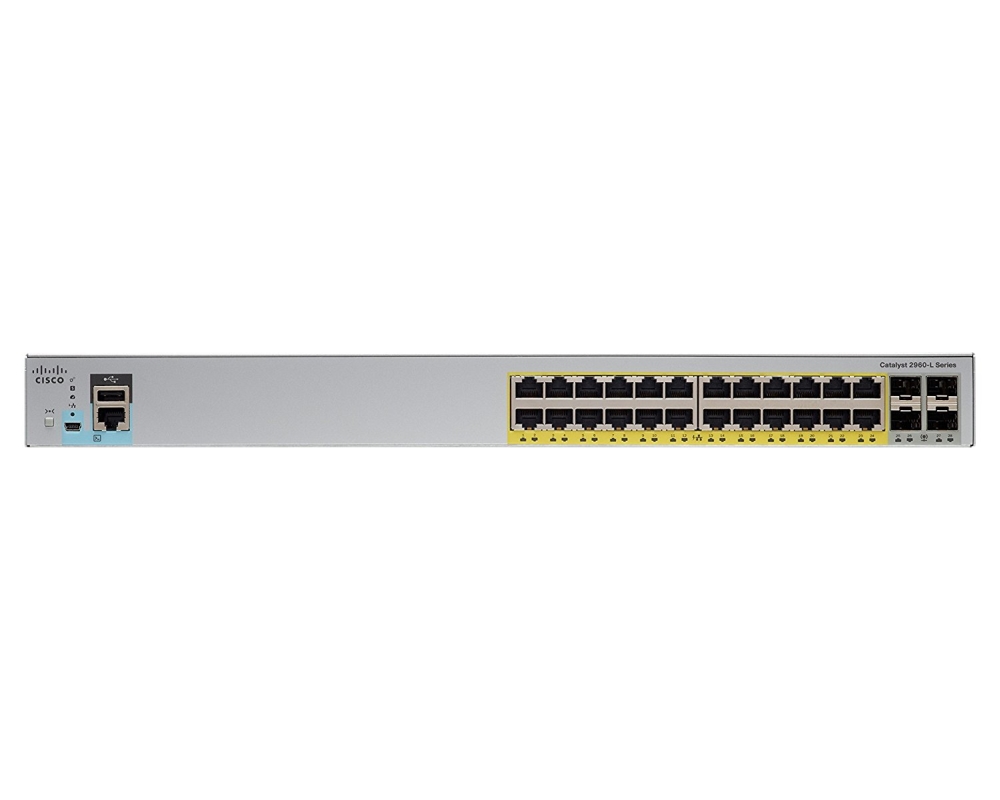

Name: Комутатор Cisco Catalyst 2960L Smart Managed 24 port Gig, PoE+, 4x10G SFP+, LAN Lite
Brand: CISCO
SKU: CISCO-WS-C2960L-SM-24PQ
Price: 6203.40000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: CISCO-WS-C2960L-SM-24PQ

komutator-cisco-catalyst-2960l-smart-managed-24-po-cisco-ws-c2960l-sm-24pq

0 ревюта | 0 въпроса

Капацитет за маршрутизиране/превключване, Gbps 128 Gbps
QoS Up to eight egress queues and two thresholds per port Ingress policing DSCP Traffic Classification Trust Boundary Auto-QoS Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD) 802.1p Class of Service (CoS)
Други 1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A port for storage and Bluetooth console
Памет (Flash, RAM) Flash memory: 256 MB RAM: 512 MB DRAM
Суич, тип Fixed Port

Сравни

6203.40 лв

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Power Over Ethernet (PoE):

Support both IEEE 802.3af Power over Ethernet (PoE) and IEEE 802.3at PoE+ (up to 30W per port). Available PoE Power: 195W

Захранване:

Single fixed power supply, 110 to 220V AC

Основни портове, тип:

24x10/100/1000Base-T

IPv6 functionality:

IPv6 unicast direct routes: 414 IPv6 unicast indirect routes: 128 IPv6 static routes: 16 IPv6 multicast groups: 1024 IPv6 security ACEs: 256

Памет (Flash, RAM):

Flash memory: 256 MB RAM: 512 MB DRAM

L3 мрежови стандарти:

RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery, RFC 792 - ICMP, RFC 791 - IP, RFC 793 - TCP, RFC 768 - UDP

Размери (Ш, Д, В), mm:

445 x 265 x 44

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.

Свободни (10GB) слотове:

Fans:

Fanless design

Uplink портове:

4x 10G SFP+

Управление:

SNMP, web UI, Bluetooth for over-the-air access, Virtual Stacking, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), RMON, TCP

Суич, тип:

Fixed Port

Други:

1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A port for storage and Bluetooth console

MAC адреси:

16000 MAC address table size

Капацитет за маршрутизиране/превключване, Gbps:

128 Gbps

QoS:

Up to eight egress queues and two thresholds per port Ingress policing DSCP Traffic Classification Trust Boundary Auto-QoS Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD) 802.1p Class of Service (CoS)

Опция за монтаж:

Desktop/Rackmount

Общ брой портове:

VLAN (брой, стандарти):

Maximum active VLANs: 256 VLAN IDs available: 4094 IEEE 802.1Q VLAN

Stackable:

Сигурност:

Comprehensive 802.1X 802.1x support with NEAT Disable per-VLAN MAC learning Multidomain/AAA command authorization ACLS Port-based ACLs SSH, Kerberos, and SNMPv3 SPAN TACACS+/ RADIUS/MAC authentication MAC address/Web notification BPDU and e

Routing:

Layer 2 Only

Пропускателна способност, Mpps:

41.67 Mpps

Гаранция:

99 месеца

Описание

Комутатор Cisco Catalyst 2960L Smart Managed 24 po

Виж повече caret
