Комутатор Cisco Catalyst 2960L Smart Managed 16 po ... Виж още

Каталожен № на продукта: CISCO-WS-C2960L-SM-16TS
komutator-cisco-catalyst-2960l-smart-managed-16-po-cisco-ws-c2960l-sm-16ts
komutator-cisco-catalyst-2960l-smart-managed-16-po-cisco-ws-c2960l-sm-16ts
komutator-cisco-catalyst-2960l-smart-managed-16-po-cisco-ws-c2960l-sm-16ts
komutator-cisco-catalyst-2960l-smart-managed-16-po-cisco-ws-c2960l-sm-16ts
0 ревюта | 0 въпроса

  • Routing Layer 2 Only
  • L2 мрежови стандарти IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ae, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ah
  • Капацитет за маршрутизиране/превключване, Gbps 36 Gbps
  • IPv6 functionality IPv6 unicast direct routes: 414 IPv6 unicast indirect routes: 128 IPv6 static routes: 16 IPv6 multicast groups: 1024 IPv6 security ACEs: 256
  • QoS Up to eight egress queues and two thresholds per port Ingress policing DSCP Traffic Classification Trust Boundary Auto-QoS Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD) 802.1p Class of Service (CoS)

575.60 €
1125.78 лв.
Неналичен. Цената може да бъде различна, когато отново има наличност.
Добави в Любими
Поръчка по телефон Без формалности
komutator-cisco-catalyst-2960l-smart-managed-16-po-cisco-ws-c2960l-sm-16ts

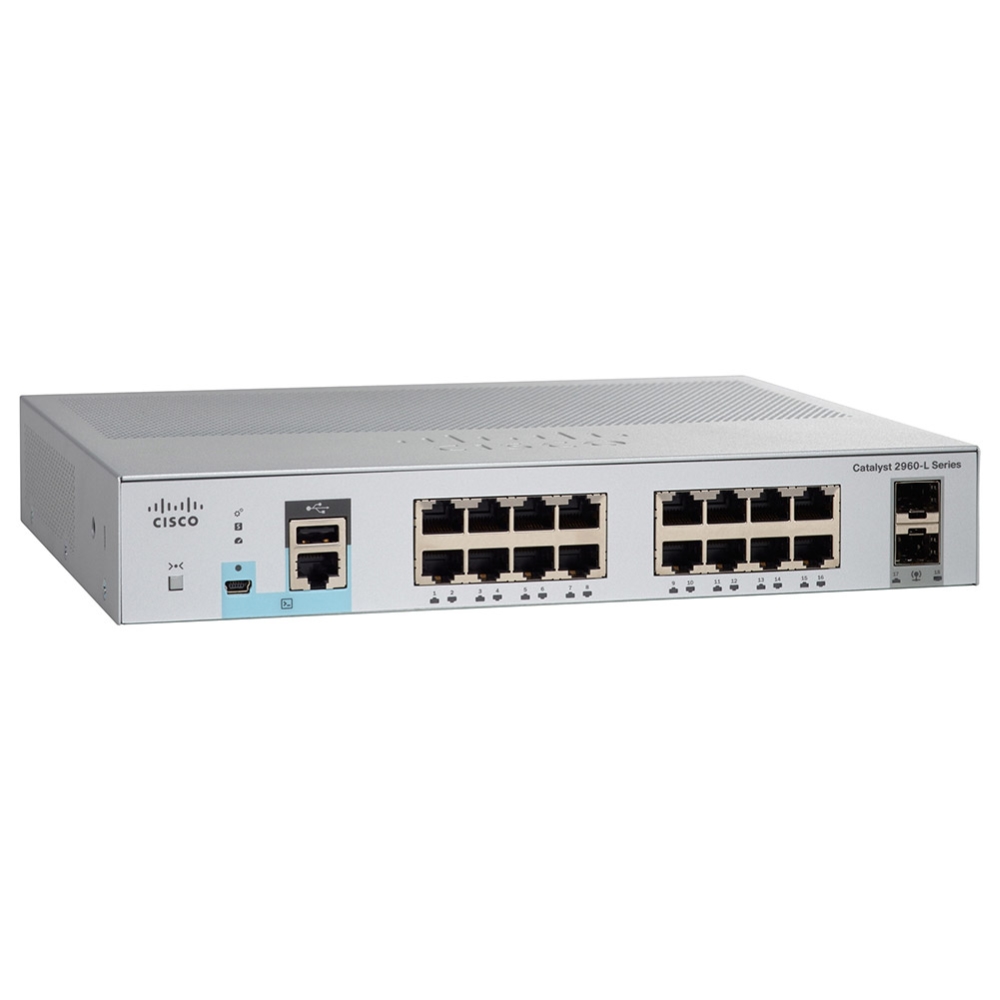

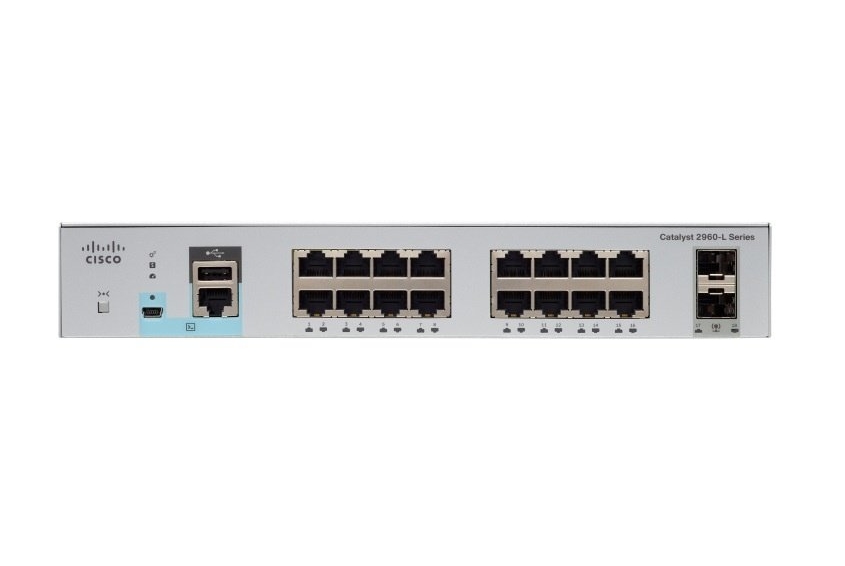

Комутатор Cisco Catalyst 2960L Smart Managed 16 port Gig, 2x1G SFP, LAN Lite
575.60 € 1125.78 лв.
Характеристики Описание Ревюта Въпроси и отговори
Характеристики
Routing:
Layer 2 Only
Пропускателна способност, Mpps:
26.78 Mpps
L2 мрежови стандарти:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ae, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ah
MAC адреси:
16000 MAC address table size
Свободни (10GB) слотове:
No
Общ брой портове:
18
Капацитет за маршрутизиране/превключване, Gbps:
36 Gbps
Основни портове, тип:
16x10/100/1000Base-T
IPv6 functionality:
IPv6 unicast direct routes: 414 IPv6 unicast indirect routes: 128 IPv6 static routes: 16 IPv6 multicast groups: 1024 IPv6 security ACEs: 256
Power Over Ethernet (PoE):
No
L3 мрежови стандарти:
RFC 1256 - Internet Control Message Protocol (ICMP) Router Discovery, RFC 792 - ICMP, RFC 791 - IP, RFC 793 - TCP, RFC 768 - UDP
Размери (Ш, Д, В), mm:
268 x 215 x 44
Захранване:
Single fixed power supply, 110 to 220V AC
Гаранция:
99 месеца
Други:
1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A port for storage and Bluetooth console
Сигурност:
Comprehensive 802.1X 802.1x support with NEAT Disable per-VLAN MAC learning Multidomain/AAA command authorization ACLS Port-based ACLs SSH, Kerberos, and SNMPv3 SPAN TACACS+/ RADIUS/MAC authentication MAC address/Web notification BPDU and e
Uplink портове:
2xSFP
QoS:
Up to eight egress queues and two thresholds per port Ingress policing DSCP Traffic Classification Trust Boundary Auto-QoS Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD) 802.1p Class of Service (CoS)
Stackable:
No
VLAN (брой, стандарти):
Maximum active VLANs: 256 VLAN IDs available: 4094 IEEE 802.1Q VLAN
Опция за монтаж:
Desktop/Rackmount
Fans:
Fanless design
Памет (Flash, RAM):
Flash memory: 256 MB RAM: 512 MB DRAM
Управление:
SNMP, web UI, Bluetooth for over-the-air access, Virtual Stacking, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), RMON, TCP
Суич, тип:
Fixed Port
