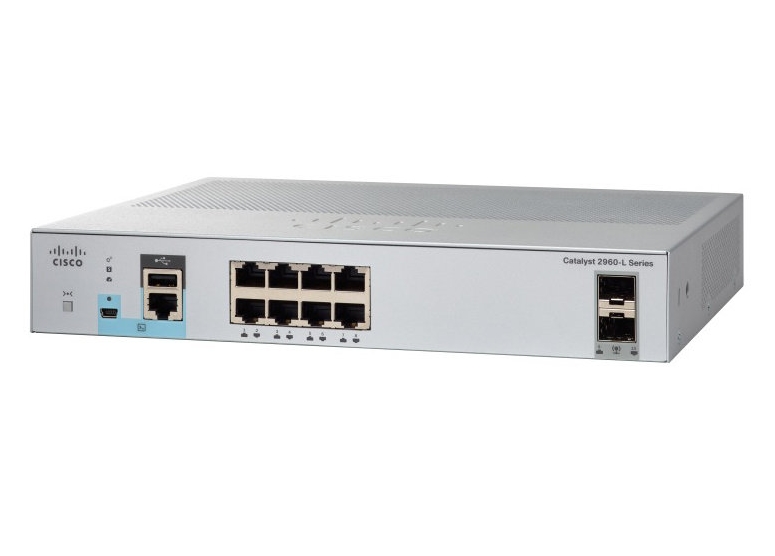

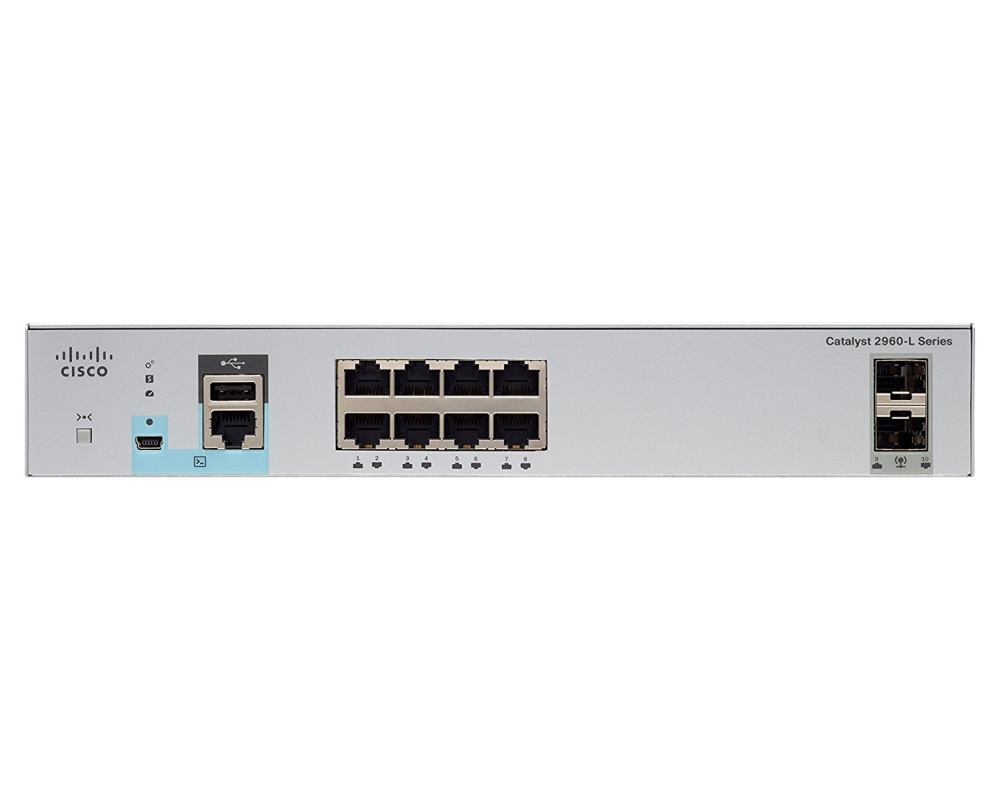

Name: Комутатор Cisco Catalyst 2960L 8 port GigE, 2 x 1G SFP, LAN Lite
Brand: CISCO
SKU: CISCO-WS-C2960L-8TS-LL
Price: 1808.40000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Свободни (10GB) слотове:

L3 мрежови стандарти:

MAC адреси:

8000 MAC address table size

Други:

1 x RJ45 Ethernet, 1 x USB mini-B, 1 x USB-A port for storage and Bluetooth console

Stackable:

Гаранция:

99 месеца

Суич, тип:

Fixed Port

IPv6 functionality:

IPv6 Ready Logo

Размери (Ш, Д, В), mm:

268 x 215 x 44

Опция за монтаж:

Desktop/Rackmount

Fans:

Fanless design

Памет (Flash, RAM):

Flash memory: 256 MB RAM: 512 MB DRAM

Захранване:

Single fixed power supply, 110 to 220V AC

Капацитет за маршрутизиране/превключване, Gbps:

20 Gbps

Сигурност:

Comprehensive 802.1x, Multidomain Authentication, Access Control Lists (ACLs), SSH, Kerberos, SNMPv3, Switched Port Analyzer (SPAN), TACACS+ and RADIUS authentication, MAC address notification, Multilevel security on console access, BPDU guard, STRG

VLAN (брой, стандарти):

Maximum active VLANs: 64 VLAN IDs available: 4094 IEEE 802.1Q VLAN

QoS:

Up to four egress queues and two thresholds per port supporting bandwidth control, shaping, and priority queuing so that the high priority packets are serviced ahead of other traffic WRR scheduling and WTD congestion avoidance 802.1p class of servi

Пропускателна способност, Mpps:

14.88 Mpps

Routing:

Layer 2 Only

Uplink портове:

2xSFP

Основни портове, тип:

8x10/100/1000Base-T

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ae, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ah

Управление:

CLI for detailed configuration and administration, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), SNMP v1, v2c, and v3, RMON, TCP, UDP

Общ брой портове:

Power Over Ethernet (PoE):

Описание

Комутатор Cisco Catalyst 2960L 8 port GigE, 2 x 1G

Виж повече caret
