Name: Комутатор Cisco Catalyst 2960-XR 24 GigE PoE 370W, 4 x 1G SFP, IP Lite
Brand: CISCO
SKU: CISCO-WS-C2960XR-24PS-I
Price: 12570.20000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Гаранция:

99 месеца

Суич, тип:

Fixed Port

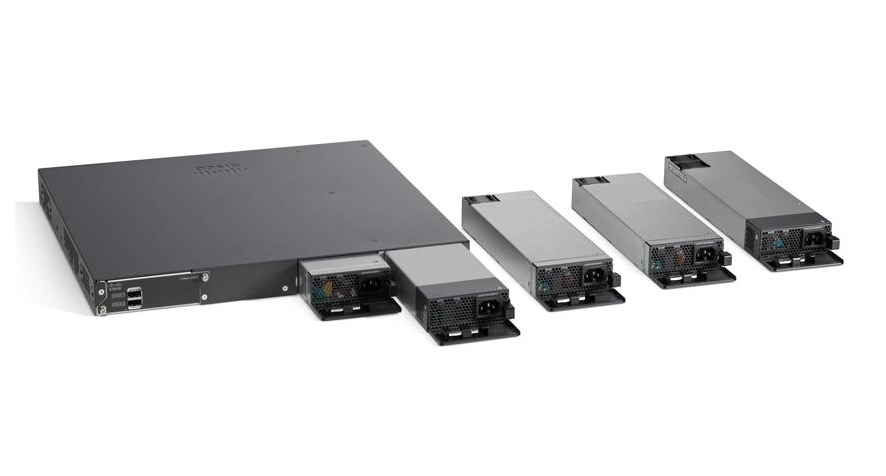

Захранване:

Power resiliency with optional dual field-replaceable power supplies. These power supplies have in-built fans to provide cooling.

Основни портове, тип:

24x10/100/1000Base-T

Пропускателна способност, Mpps:

71.4 Mpps

L3 мрежови стандарти:

IP unicast routing protocols (Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng) Advanced IP unicast routing protocols (OSPF for Routed Access) Equal-cost routing Policy-based routing (PBR), HSRP, VRRP, PIM

VLAN (брой, стандарти):

Maximum active VLANs: 1023 IEEE 802.1Q VLAN

Fans:

yes

Сигурност:

Cisco TrustSec, 802.1X, Cisco Threat Defense, Private VLANs, RPF, ACLs, SSH, SPAN, TACACS+ and RADIUS authentication, MAC Address Notification, Multilevel security on console access, BPDU guard, STRG, IGMP filtering, Dynamic VLAN assignment

QoS:

Up to eight egress queues per port (four on the 2960-X or when stacking the 2960-XR) and strict priority queuing so that the highest priority packets are serviced ahead of all other traffic SRR WTD 802.1p class of service DSCP Rate limiting

Свободни (10GB) слотове:

Капацитет за маршрутизиране/превключване, Gbps:

216 Gbps

Опция за монтаж:

Rackmount

Размери (Ш, Д, В), mm:

445 x 408 x 45

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.1ae, IEEE 802.3ae, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802

MAC адреси:

Памет (Flash, RAM):

Flash memory: 128 MB RAM: 512 MB DRAM

Други:

System Software: IP Lite

Routing:

Layer 3 Advanced

Power Over Ethernet (PoE):

Support both IEEE 802.3af Power over Ethernet (PoE) and IEEE 802.3at PoE+ (up to 30W per port). Available PoE Power: 370W

Uplink портове:

4xSFP

IPv6 functionality:

IPv6 Ready Logo, IPv6 Aggregatable Addrs, IPv6 Neighbor Discovery, IPv6 Autoconfiguration, ICMP IPv6

Общ брой портове:

Stackable:

FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)

Управление:

CLI for detailed configuration and administration, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), SNMP v1, v2c, and v3, RMON, TCP, UDP

Описание

Комутатор Cisco Catalyst 2960-XR 24 GigE PoE 370W,

Виж повече caret
