Комутатор Cisco Catalyst 2960-XR 24 GigE, 4 x 1G S ... Виж още

Каталожен № на продукта: CISCO-WS-C2960XR-24TS-I
komutator-cisco-catalyst-2960-xr-24-gige-4-x-1g-s-cisco-ws-c2960xr-24ts-i
komutator-cisco-catalyst-2960-xr-24-gige-4-x-1g-s-cisco-ws-c2960xr-24ts-i
komutator-cisco-catalyst-2960-xr-24-gige-4-x-1g-s-cisco-ws-c2960xr-24ts-i
komutator-cisco-catalyst-2960-xr-24-gige-4-x-1g-s-cisco-ws-c2960xr-24ts-i
0 ревюта | 0 въпроса

  • Stackable FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)
  • Основни портове, тип 24x10/100/1000Base-T
  • Памет (Flash, RAM) Flash memory: 128 MB RAM: 512 MB DRAM
  • Сигурност Cisco TrustSec, 802.1X, Cisco Threat Defense, Private VLANs, RPF, ACLs, SSH, SPAN, TACACS+ and RADIUS authentication, MAC Address Notification, Multilevel security on console access, BPDU guard, STRG, IGMP filtering, Dynamic VLAN assignment
  • Управление CLI for detailed configuration and administration, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), SNMP v1, v2c, and v3, RMON, TCP, UDP

5670.40 €
11090.34 лв.
Неналичен. Цената може да бъде различна, когато отново има наличност.
Добави в Любими
Поръчка по телефон Без формалности
komutator-cisco-catalyst-2960-xr-24-gige-4-x-1g-s-cisco-ws-c2960xr-24ts-i
Комутатор Cisco Catalyst 2960-XR 24 GigE, 4 x 1G SFP, IP Lite
5670.40 € 11090.34 лв.
Характеристики Описание Ревюта Въпроси и отговори
Характеристики
Общ брой портове:
28
Stackable:
FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)
L3 мрежови стандарти:
IP unicast routing protocols (Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng) Advanced IP unicast routing protocols (OSPF for Routed Access) Equal-cost routing Policy-based routing (PBR), HSRP, VRRP, PIM
Сигурност:
Cisco TrustSec, 802.1X, Cisco Threat Defense, Private VLANs, RPF, ACLs, SSH, SPAN, TACACS+ and RADIUS authentication, MAC Address Notification, Multilevel security on console access, BPDU guard, STRG, IGMP filtering, Dynamic VLAN assignment
Размери (Ш, Д, В), mm:
445 x 408 x 45
Пропускателна способност, Mpps:
71.4 Mpps
QoS:
Up to eight egress queues per port (four on the 2960-X or when stacking the 2960-XR) and strict priority queuing so that the highest priority packets are serviced ahead of all other traffic SRR WTD 802.1p class of service DSCP Rate limiting
Управление:
CLI for detailed configuration and administration, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), SNMP v1, v2c, and v3, RMON, TCP, UDP
MAC адреси:
-
Routing:
Layer 3 Advanced
Основни портове, тип:
24x10/100/1000Base-T
Памет (Flash, RAM):
Flash memory: 128 MB RAM: 512 MB DRAM
IPv6 functionality:
IPv6 Ready Logo, IPv6 Aggregatable Addrs, IPv6 Neighbor Discovery, IPv6 Autoconfiguration, ICMP IPv6
Други:
System Software: IP Lite
Гаранция:
99 месеца
Капацитет за маршрутизиране/превключване, Gbps:
216 Gbps
Fans:
yes
VLAN (брой, стандарти):
Maximum active VLANs: 1023 IEEE 802.1Q VLAN
Суич, тип:
Fixed Port
Опция за монтаж:
Rackmount
Power Over Ethernet (PoE):
No
L2 мрежови стандарти:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.1ae, IEEE 802.3ae, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ah
Захранване:

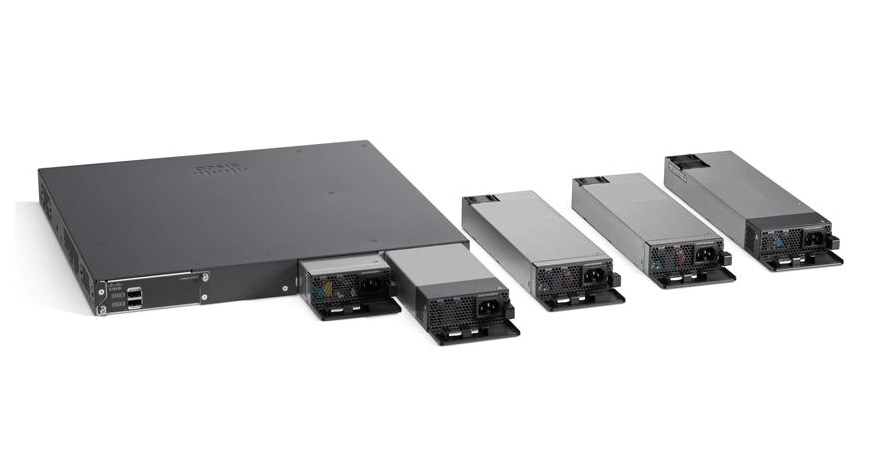

Power resiliency with optional dual field-replaceable power supplies. These power supplies have in-built fans to provide cooling.
Uplink портове:
4xSFP
Свободни (10GB) слотове:
No
Описание

Комутатор Cisco Catalyst 2960-XR 24 GigE, 4 x 1G S
