Name: Комутатор Cisco Catalyst 2960-XR 24 GigE, 2 x 10G SFP+, IP Lite
Brand: CISCO
SKU: CISCO-WS-C2960XR-24TD-I
Price: 14543.80000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Управление:

CLI for detailed configuration and administration, DHCP, Internet Group Management Protocol (IGMP), Trivial File Transfer Protocol (TFTP), SNMP v1, v2c, and v3, RMON, TCP, UDP

IPv6 functionality:

IPv6 Ready Logo, IPv6 Aggregatable Addrs, IPv6 Neighbor Discovery, IPv6 Autoconfiguration, ICMP IPv6

Основни портове, тип:

24x10/100/1000Base-T

Сигурност:

Cisco TrustSec, 802.1X, Cisco Threat Defense, Private VLANs, RPF, ACLs, SSH, SPAN, TACACS+ and RADIUS authentication, MAC Address Notification, Multilevel security on console access, BPDU guard, STRG, IGMP filtering, Dynamic VLAN assignment

Uplink портове:

2x10GE SFP

Размери (Ш, Д, В), mm:

445 x 408 x 45

MAC адреси:

Други:

System Software: IP Lite

Свободни (10GB) слотове:

Опция за монтаж:

Rackmount

Памет (Flash, RAM):

Flash memory: 128 MB RAM: 512 MB DRAM

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az, IEEE 802.1ae, IEEE 802.3ae, IEEE 802.1ax, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3x, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ah

L3 мрежови стандарти:

IP unicast routing protocols (Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng) Advanced IP unicast routing protocols (OSPF for Routed Access) Equal-cost routing Policy-based routing (PBR), HSRP, VRRP, PIM

Гаранция:

99 месеца

Захранване:

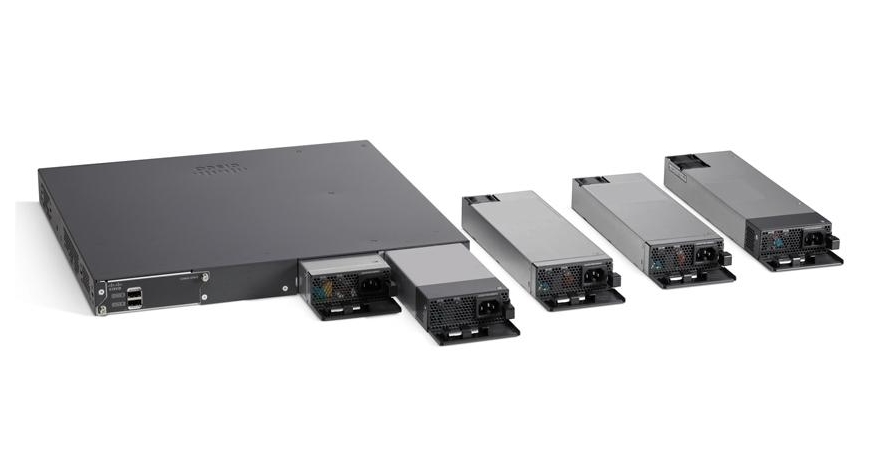

Power resiliency with optional dual field-replaceable power supplies. These power supplies have in-built fans to provide cooling.

VLAN (брой, стандарти):

Maximum active VLANs: 1023 IEEE 802.1Q VLAN

Fans:

yes

QoS:

Up to eight egress queues per port (four on the 2960-X or when stacking the 2960-XR) and strict priority queuing so that the highest priority packets are serviced ahead of all other traffic SRR WTD 802.1p class of service DSCP Rate limiting

Пропускателна способност, Mpps:

95.2 Mpps

Routing:

Layer 3 Advanced

Суич, тип:

Fixed Port

Power Over Ethernet (PoE):

Капацитет за маршрутизиране/превключване, Gbps:

216 Gbps

Общ брой портове:

Stackable:

FlexStack Plus for stacking of up to 8 switches with 80 Gbps of stack throughput (optional)
