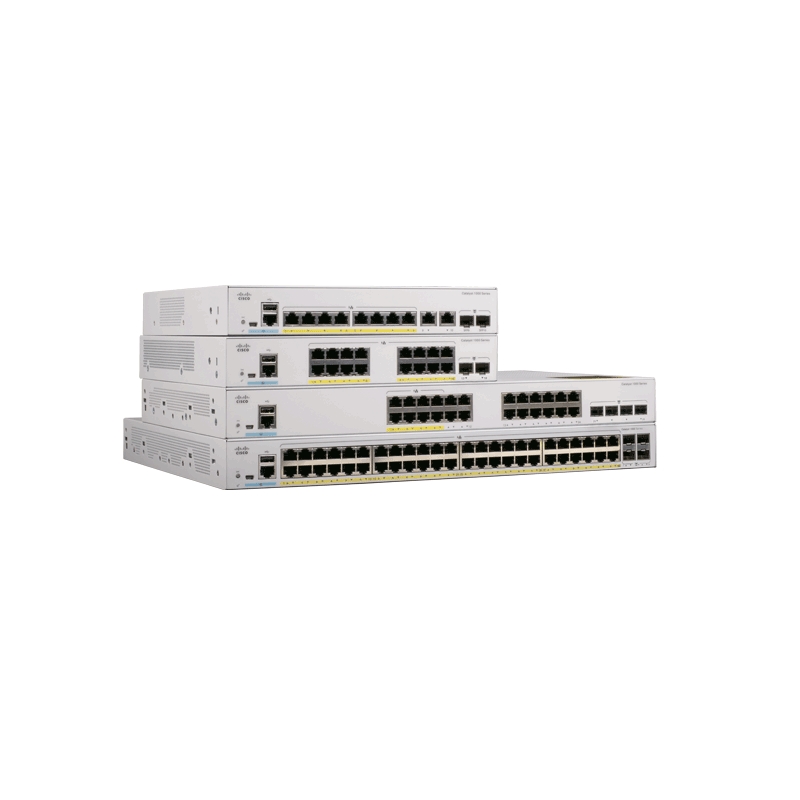

Комутатор Cisco Catalyst 1000 8port GE, Full POE, ... Виж още

Каталожен № на продукта: CISCO-C1000-8FP-2G-L
komutator-cisco-catalyst-1000-8port-ge-full-poe-cisco-c1000-8fp-2g-l
komutator-cisco-catalyst-1000-8port-ge-full-poe-cisco-c1000-8fp-2g-l
0 ревюта | 0 въпроса

  • Общ брой портове 8
  • QoS Up to 8 egress queues and 2 thresholds per port, Ingress policing, QoS through DSCP mapping and filtering, QoS through traffic classification, Trust boundary, AutoQoS, Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD), 802.1p CoS
  • Управление Web UI via Cisco Configuration Professional CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser. Single IP Management. Network management
  • VLAN (брой, стандарти) Maximum active: 256 IDs available: 4094
  • Пропускателна способност, Mpps 14.88 Mpps

602.50 €
1178.39 лв.
Неналичен. Цената може да бъде различна, когато отново има наличност.
Добави в Любими
Поръчка по телефон Без формалности
komutator-cisco-catalyst-1000-8port-ge-full-poe-cisco-c1000-8fp-2g-l
Комутатор Cisco Catalyst 1000 8port GE, Full POE, 2x1G SFP
602.50 € 1178.39 лв.
Характеристики Описание Ревюта Въпроси и отговори
Характеристики
MAC адреси:
15 360
Суич, тип:
Fixed Port
Stackable:
-
Размери (Ш, Д, В), mm:
268.2 x 323.34 x 43.9
Опция за монтаж:
Rackmount
Пропускателна способност, Mpps:
14.88 Mpps
L3 мрежови стандарти:
-
IPv6 functionality:
IPv6 routing, Access Control Lists (ACLS)
Други:
USB mini-B port, USB-A port for storage and Bluetooth console
Общ брой портове:
8
QoS:
Up to 8 egress queues and 2 thresholds per port, Ingress policing, QoS through DSCP mapping and filtering, QoS through traffic classification, Trust boundary, AutoQoS, Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD), 802.1p CoS
Routing:
Static
Power Over Ethernet (PoE):
Support both IEEE 802.3af PoE and IEEE 802.3at PoE+ 30W for any 4 ports or 15W for 8 ports PoE power budget: 120W
Сигурност:
802.1X, Authentication, ACLS, Port-based ACLs, SSH, Kerberos, and SNMP v3, SPAN, TACACS+ and RADIUS authentication, MAC address notification, MAC Authentication Bypass (MAB), BPDU Guard, IP Source Guard, SSH v2, STRG, IGMP
Захранване:
Single fixed power supply. Models have external power supply. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
Fans:
Compact fanless
L2 мрежови стандарти:
802.1D STP, 802.1p CoS Prioritization, 802.1Q VLAN, 802.1s, 802.1w, 802.1X, 802.1ab LLDP, BT v4.0, 802.3ad, 802.3af, 802.3ah (100BASE-X single/multimode fiber only), 802.3x full duplex, 802.3, 802.3u, 802.3ab, 802.3z, RMON, SNMP, 802.3az, 802.3ae
Основни портове, тип:
10/100/1000Base-T
Капацитет за маршрутизиране/превключване, Gbps:
10/20 Gbps (Forwarding/Switching)
VLAN (брой, стандарти):
Maximum active: 256 IDs available: 4094
Управление:
Web UI via Cisco Configuration Professional CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser. Single IP Management. Network management
Свободни (10GB) слотове:
-
Гаранция:
3 месеца
Памет (Flash, RAM):
512MB DRAM, 256 MB Flash memory
Uplink портове:
2x SFP/ RJ-45 combo
Описание

Комутатор Cisco Catalyst 1000 8port GE, Full POE,
