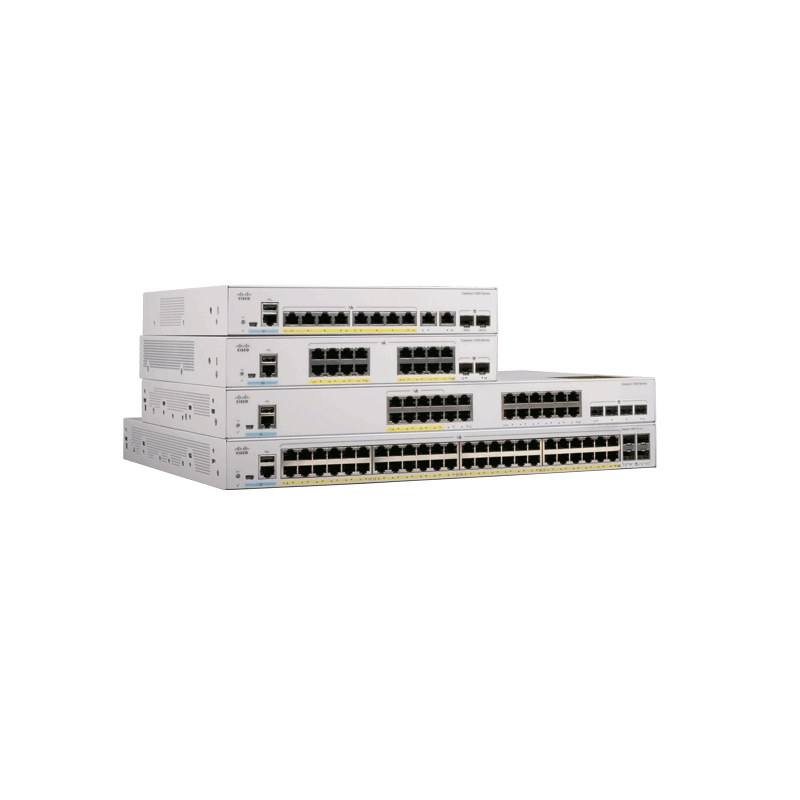

Name: Комутатор Cisco Catalyst 1000 48 port GE, POE, 4x10G SFP
Brand: CISCO
SKU: CISCO-C1000-48P-4X-L
Price: 4129.90000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Памет (Flash, RAM):

512MB DRAM, 256 MB Flash memory

Управление:

Web UI via Cisco Configuration Professional CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser. Single IP Management. Network management

VLAN (брой, стандарти):

Maximum active: 256 IDs available: 4094

Power Over Ethernet (PoE):

Support both IEEE 802.3af PoE and IEEE 802.3at PoE+ 30W for any 12 ports or 15W for 24 ports PoE power budget: 370W

Размери (Ш, Д, В), mm:

444.5 x 350 x 43.9

L2 мрежови стандарти:

802.1D STP, 802.1p CoS Prioritization, 802.1Q VLAN, 802.1s, 802.1w, 802.1X, 802.1ab LLDP, BT v4.0, 802.3ad, 802.3af, 802.3ah (100BASE-X single/multimode fiber only), 802.3x full duplex, 802.3, 802.3u, 802.3ab, 802.3z, RMON, SNMP, 802.3az, 802.3ae

Гаранция:

3 месеца

Сигурност:

802.1X, Authentication, ACLS, Port-based ACLs, SSH, Kerberos, and SNMP v3, SPAN, TACACS+ and RADIUS authentication, MAC address notification, MAC Authentication Bypass (MAB), BPDU Guard, IP Source Guard, SSH v2, STRG, IGMP

Опция за монтаж:

Rackmount

MAC адреси:

15 360

Захранване:

Single fixed power supply. Models have external power supply. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.

IPv6 functionality:

IPv6 routing, Access Control Lists (ACLS)

Stackable:

Пропускателна способност, Mpps:

14.88 Mpps

L3 мрежови стандарти:

Fans:

yes

Общ брой портове:

Свободни (10GB) слотове:

Routing:

Static

Суич, тип:

Fixed Port

Други:

USB mini-B port, USB-A port for storage and Bluetooth console

Uplink портове:

4x 10G SFP+

Основни портове, тип:

10/100/1000Base-T

QoS:

Up to 8 egress queues and 2 thresholds per port, Ingress policing, QoS through DSCP mapping and filtering, QoS through traffic classification, Trust boundary, AutoQoS, Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD), 802.1p CoS

Капацитет за маршрутизиране/превключване, Gbps:

10/20 Gbps (Forwarding/Switching)

Описание

Комутатор Cisco Catalyst 1000 48 port GE, POE, 4x1
