Комутатор Cisco Catalyst 1000 24port GE, Full POE, ... Виж още

Каталожен № на продукта: CISCO-C1000-24FP-4X-L
komutator-cisco-catalyst-1000-24port-ge-full-poe-cisco-c1000-24fp-4x-l
komutator-cisco-catalyst-1000-24port-ge-full-poe-cisco-c1000-24fp-4x-l
0 ревюта | 0 въпроса

  • Основни портове, тип 10/100/1000Base-T
  • Други USB mini-B port, USB-A port for storage and Bluetooth console
  • Свободни (10GB) слотове -
  • Памет (Flash, RAM) 512MB DRAM, 256 MB Flash memory
  • Routing Static

3984.10 €
Неналичен. Цената може да бъде различна, когато отново има наличност.
Добави в Любими
Поръчка по телефон Без формалности
komutator-cisco-catalyst-1000-24port-ge-full-poe-cisco-c1000-24fp-4x-l

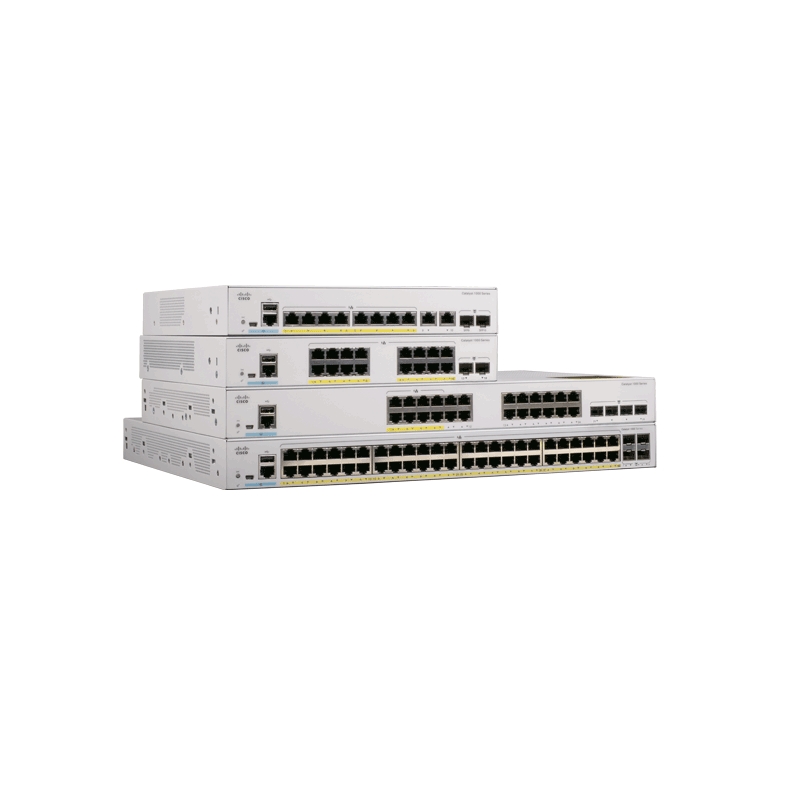

Комутатор Cisco Catalyst 1000 24port GE, Full POE, 4x10G SFP
3984.10 €
Характеристики Описание Ревюта Въпроси и отговори
Характеристики
L2 мрежови стандарти:
802.1D STP, 802.1p CoS Prioritization, 802.1Q VLAN, 802.1s, 802.1w, 802.1X, 802.1ab LLDP, BT v4.0, 802.3ad, 802.3af, 802.3ah (100BASE-X single/multimode fiber only), 802.3x full duplex, 802.3, 802.3u, 802.3ab, 802.3z, RMON, SNMP, 802.3az, 802.3ae
Захранване:
Single fixed power supply. Models have external power supply. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.
Свободни (10GB) слотове:
-
MAC адреси:
15 360
Памет (Flash, RAM):
512MB DRAM, 256 MB Flash memory
Routing:
Static
Stackable:
-
Сигурност:
802.1X, Authentication, ACLS, Port-based ACLs, SSH, Kerberos, and SNMP v3, SPAN, TACACS+ and RADIUS authentication, MAC address notification, MAC Authentication Bypass (MAB), BPDU Guard, IP Source Guard, SSH v2, STRG, IGMP
IPv6 functionality:
IPv6 routing, Access Control Lists (ACLS)
Uplink портове:
4x 10G SFP+
Управление:
Web UI via Cisco Configuration Professional CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser. Single IP Management. Network management
QoS:
Up to 8 egress queues and 2 thresholds per port, Ingress policing, QoS through DSCP mapping and filtering, QoS through traffic classification, Trust boundary, AutoQoS, Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD), 802.1p CoS
Капацитет за маршрутизиране/превключване, Gbps:
10/20 Gbps (Forwarding/Switching)
Гаранция:
3 месеца
L3 мрежови стандарти:
-
VLAN (брой, стандарти):
Maximum active: 256 IDs available: 4094
Fans:
yes
Опция за монтаж:
Rackmount
Пропускателна способност, Mpps:
14.88 Mpps
Размери (Ш, Д, В), mm:
444.5 x 345.2 x 43.9
Основни портове, тип:
10/100/1000Base-T
Общ брой портове:
24
Power Over Ethernet (PoE):
Support both IEEE 802.3af PoE and IEEE 802.3at PoE+ 30W for any 8 ports or 15W for 24 ports PoE power budget: 370W
Суич, тип:
Fixed Port
Други:
USB mini-B port, USB-A port for storage and Bluetooth console
Описание

Комутатор Cisco Catalyst 1000 24port GE, Full POE,
