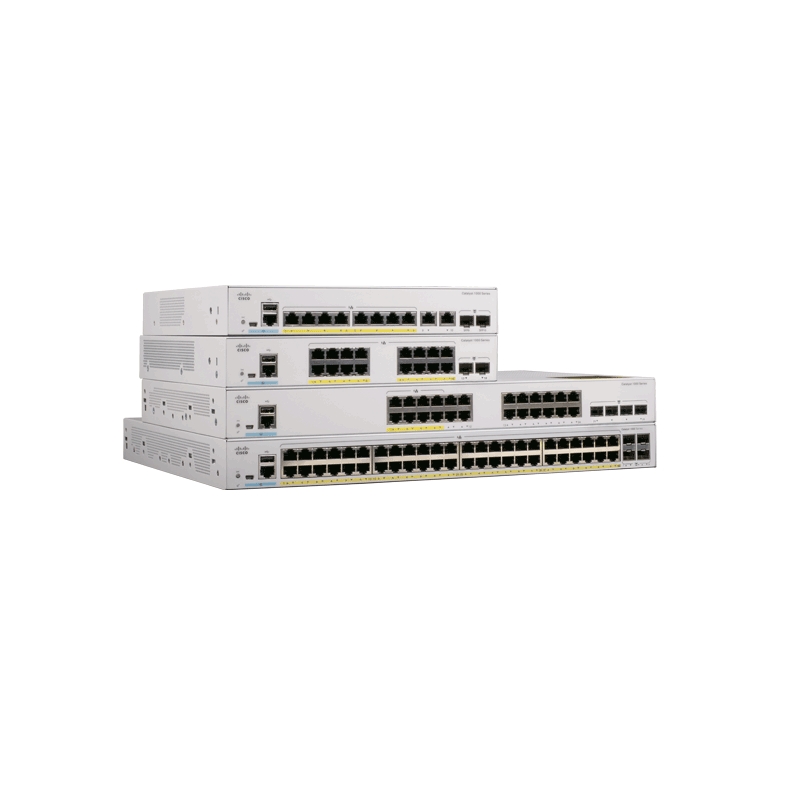

Name: Комутатор Cisco Catalyst 1000 24 port GE, POE, 4x 10G SFP
Brand: CISCO
SKU: CISCO-C1000-24P-4X-L
Price: 3926.70000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Други:

USB mini-B port, USB-A port for storage and Bluetooth console

Routing:

Static

Свободни (10GB) слотове:

Памет (Flash, RAM):

512MB DRAM, 256 MB Flash memory

Power Over Ethernet (PoE):

Support both IEEE 802.3af PoE and IEEE 802.3at PoE+ 30W for any 6 ports or 15W for any 13 ports PoE power budget: 195W

Общ брой портове:

Fans:

Fanless

Опция за монтаж:

Rackmount

MAC адреси:

15 360

Капацитет за маршрутизиране/превключване, Gbps:

10/20 Gbps (Forwarding/Switching)

QoS:

Up to 8 egress queues and 2 thresholds per port, Ingress policing, QoS through DSCP mapping and filtering, QoS through traffic classification, Trust boundary, AutoQoS, Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD), 802.1p CoS

Управление:

Web UI via Cisco Configuration Professional CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser. Single IP Management. Network management

Stackable:

Uplink портове:

4x 10G SFP+

L3 мрежови стандарти:

VLAN (брой, стандарти):

Maximum active: 256 IDs available: 4094

Пропускателна способност, Mpps:

14.88 Mpps

Сигурност:

802.1X, Authentication, ACLS, Port-based ACLs, SSH, Kerberos, and SNMP v3, SPAN, TACACS+ and RADIUS authentication, MAC address notification, MAC Authentication Bypass (MAB), BPDU Guard, IP Source Guard, SSH v2, STRG, IGMP

Размери (Ш, Д, В), mm:

444.5 x 298.7 x 43.9

IPv6 functionality:

IPv6 routing, Access Control Lists (ACLS)

Основни портове, тип:

10/100/1000Base-T

Гаранция:

3 месеца

L2 мрежови стандарти:

802.1D STP, 802.1p CoS Prioritization, 802.1Q VLAN, 802.1s, 802.1w, 802.1X, 802.1ab LLDP, BT v4.0, 802.3ad, 802.3af, 802.3ah (100BASE-X single/multimode fiber only), 802.3x full duplex, 802.3, 802.3u, 802.3ab, 802.3z, RMON, SNMP, 802.3az, 802.3ae

Захранване:

Single fixed power supply. Models have external power supply. Use the supplied AC power cord to connect the AC power connector to an AC power outlet.

Суич, тип:

Fixed Port

Описание

Комутатор Cisco Catalyst 1000 24 port GE, POE, 4x

Виж повече caret
