Комутатор Aruba Instant On 1930 24G Class 4 PoE 4S ... FP/SFP+ 370W Switch Виж още

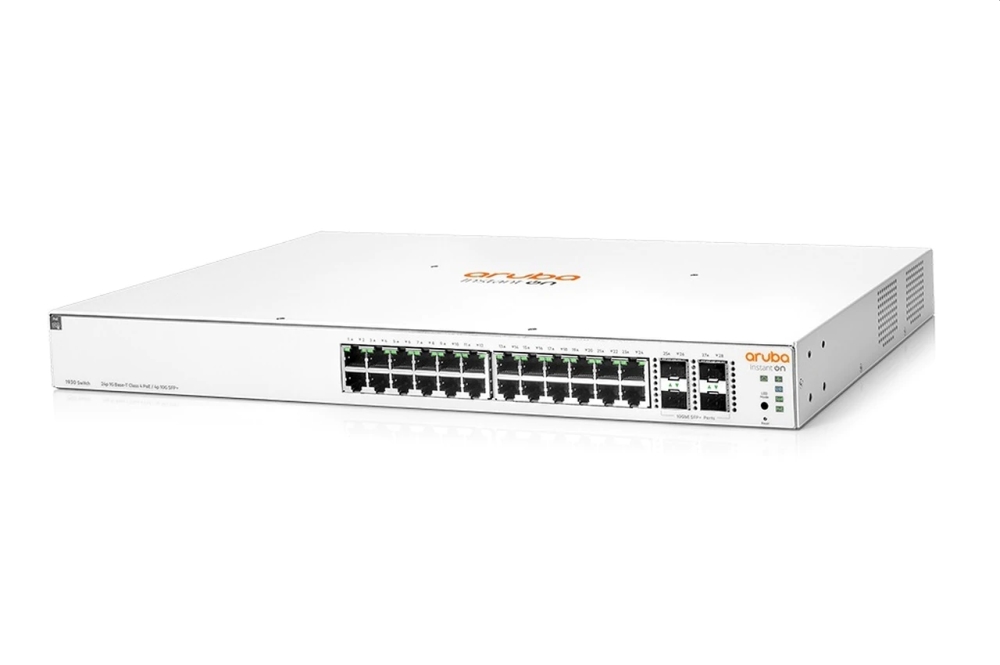

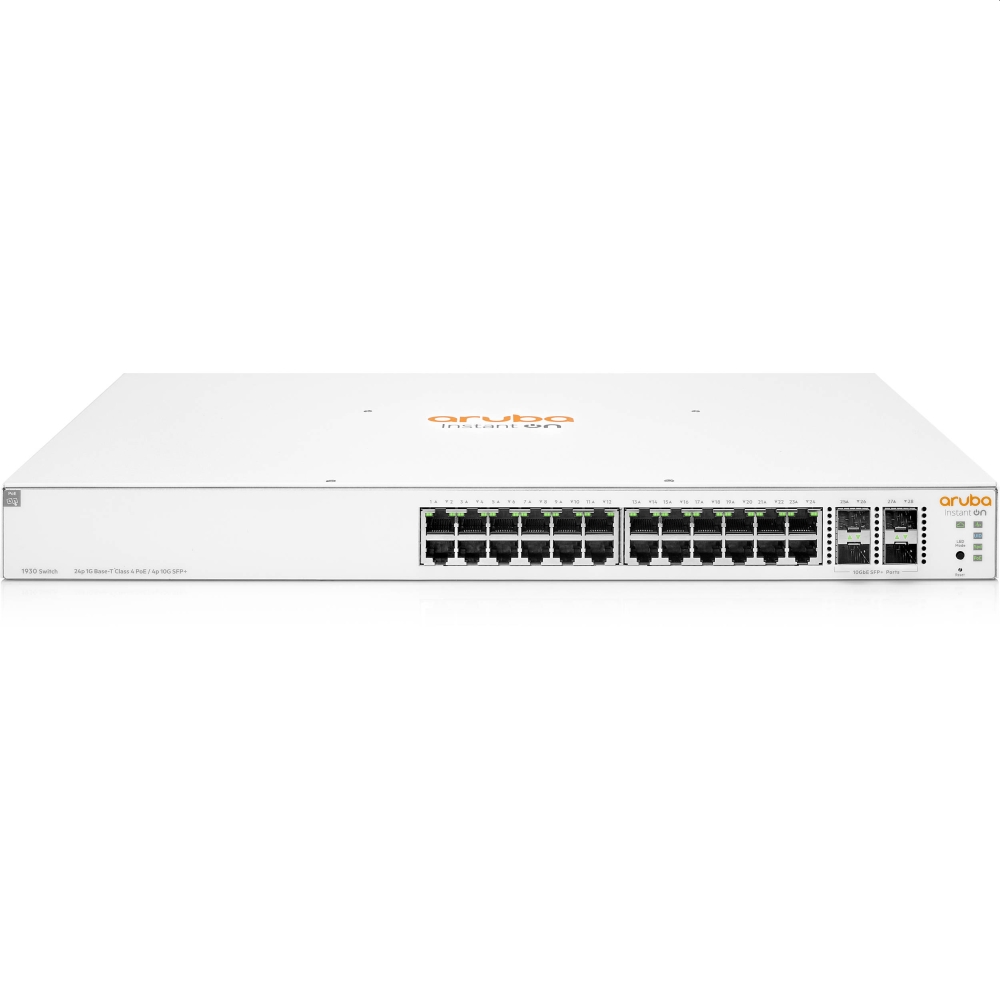

Name: Комутатор Aruba Instant On 1930 24G Class 4 PoE 4SFP/SFP+ 370W Switch
Brand: HPE
SKU: HPE-JL684A
Price: 1020.20000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: HPE-JL684A

komutator-aruba-instant-on-1930-24g-class-4-poe-4s-hpe-jl684a

0 ревюта | 0 въпроса

Основни портове, тип 24x10/100/1000Base-T
Памет (Flash, RAM) 512 MB SDRAM, 256 MB flash packet buffer: 1.5 MB
L2 мрежови стандарти 802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X , 802.2af/at PoE, 802.3x, 802.1Q VLANS, 802.1p Priority, 802.3ad LACP, 802.1X, 802.3az
Размери (Ш, Д, В), mm 442.5 x 264.7 x 44
Капацитет за маршрутизиране/превключване, Gbps 128 Gbps

Сравни

1020.20 лв.

521.62 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Power Over Ethernet (PoE):

IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T PoE power: 370 W, Class 4

Захранване:

AC voltage: 100 - 127/200 - 240 VAC Maximum power rating: 439 W, Current: 4.8/2.4 A Frequency: 50/60 Hz

Основни портове, тип:

24x10/100/1000Base-T

IPv6 functionality:

IPv6 Host mode - Enables switches to be managed and deployed at the IPv6 network’s edge

Памет (Flash, RAM):

512 MB SDRAM, 256 MB flash packet buffer: 1.5 MB

L3 мрежови стандарти:

802.1D (Spanning Tree Protocol), 802.1W: Rapid Spanning Tree Protocol, 802.1S: Multiple Spanning Tree Protocol 802.1AB Link Layer Discovery Protocol

Размери (Ш, Д, В), mm:

442.5 x 264.7 x 44

L2 мрежови стандарти:

802.3 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X , 802.2af/at PoE, 802.3x, 802.1Q VLANS, 802.1p Priority, 802.3ad LACP, 802.1X, 802.3az

Свободни (10GB) слотове:

Fans:

Variable speed fans

Uplink портове:

4 SFP/SFP+

Управление:

Aruba Instant On Portal Web browser SNMP Manager Management VLAN ID

Суич, тип:

Fixed Port, Smart Managed

MAC адреси:

16000 MAC addres table size

Капацитет за маршрутизиране/превключване, Gbps:

128 Gbps

QoS:

Traffic prioritization - time-sensitive packets (like VoIP and video) with priority over other traffic based on DSCP or IEEE 802.1p classification. IEEE 802.1p/DSCP priority to queue mapping. Supports SP or WRR. Advanced classifier based QoS.

Опция за монтаж:

Rackmount (1U)

Общ брой портове:

VLAN (брой, стандарти):

IEEE 802.1p/Q VLAN tagging IEEE 802.1Q VLAN support - Support for up to 256 VLANs with a VLAN ID range of 2-4093 RADIUS assigned VLAN, dynamic VLAN creation, guest VLAN or into an unauthenticated VLAN Auto-voice VLAN.

Stackable:

Сигурност:

TPM, IEEE 802.1Q VLAN support IEEE 802.1X access control Automatic denial-of-service protection Packet storm protection RADIUS RADIUS accounting Management VLAN ID Link Flap prevention

Routing:

Layer 3 IPv4 static routing (Supports manual routing configuration of up to 32 static routes)

Пропускателна способност, Mpps:

95.23 Mpps

Гаранция:

99 месеца

Описание

Комутатор Aruba Instant On 1930 24G Class 4 PoE 4S
