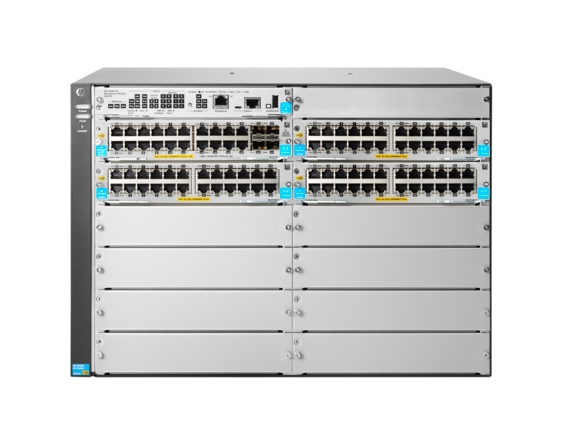

Name: Комутатор Aruba 5412R 92GT PoE+/4SFP+ v3 zl2 Swch
Brand: HPE
SKU: HPE-JL001A
Price: 38980.40000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Routing:

Layer 3 Advanced

QoS:

Advanced classifier-based QoS, Traffic prioritization, Bandwidth shaping, Class of service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ

Uplink портове:

4x10GE SFP

Fans:

1 fan tray slot (Includes: 1 x J9832A)

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1X, IEEE 802.1AE, IEEE 802.

Сигурност:

Switch CPU protection: provides automatic protection against malicious network traffic trying to shut down the switch Virus throttling: detects traffic patterns typical of WORM-type viruses

Захранване:

4 power supply slots - 2 minimum power supplies required (ordered separately)

L3 мрежови стандарти:

Static IP routing: provides manually configured routing for both IPv4 and IPv6 networks, Routing Information Protocol (RIP): provides RIPv1 and RIPv2 routing, OSPF: provides OSPFv2 for IPv4 routing and OSPFv3 for IPv6 routing

Stackable:

Yes

Управление:

IMC—Intelligent Management Center Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) SNMP Manager Out-of-band management (serial rs-232c or micro usb)

IPv6 functionality:

IPv6 host: Enables switches to be managed in an IPv6 network Dual stack (IPv4 and IPv6) IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic IPv6 routing: supports static and OSPFv3 routing protocols

MAC адреси:

64000 MAC address table size

VLAN (брой, стандарти):

VLAN support and tagging: supports the IEEE 802.1Q standard and 2, 048 VLANs simultaneously IEEE 802.1v protocol VLANs: isolate select non-IPv4 protocols automatically into their own VLANs

Общ брой портове:

Основни портове, тип:

92x10/100/1000Base-T

Свободни (10GB) слотове:

8 open module slot Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or 96 SFP+ ports or 96 HP Smart Rate Multi-Gigabit or 24 40GbE ports, or a combination

Гаранция:

99 месеца

Размери (Ш, Д, В), mm:

445 x 451 x 307

Капацитет за маршрутизиране/превключване, Gbps:

1920 Gbps

Суич, тип:

Modular

Power Over Ethernet (PoE):

IEEE 802.3at Power over Ethernet Plus: provides up to 30 W per port

Памет (Flash, RAM):

Flash Memory: 16 MB, RAM: 4 GB DDR3 SODIMM
