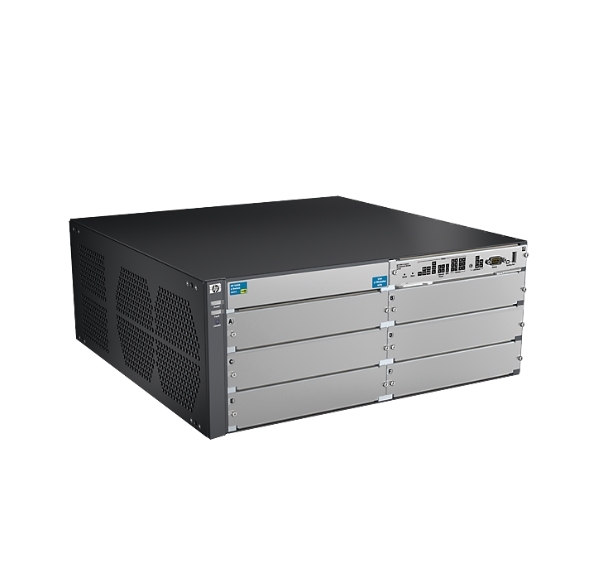

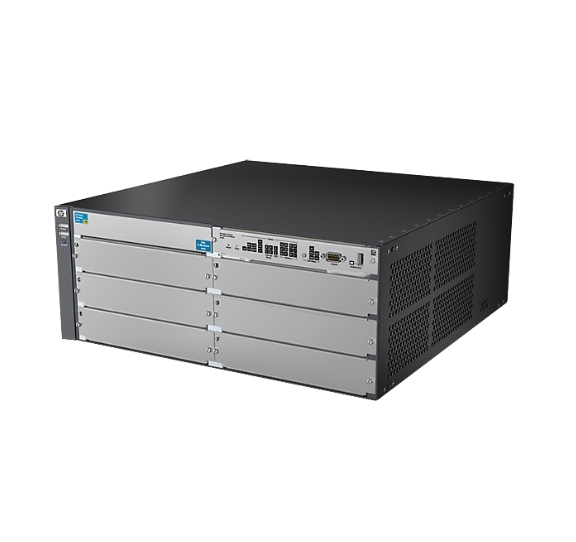

Name: Комутатор Aruba 5406R zl2 Switch
Brand: HPE
SKU: HPE-J9821A
Price: 4525.90000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1ad, IEEE 802.1AX, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1X, IEEE 802.1AE, IEEE 802.3az

IPv6 functionality:

IPv6 host: Enables switches to be managed in an IPv6 network Dual stack (IPv4 and IPv6) IPv6 ACL/QoS: supports ACL and QoS for IPv6 network traffic IPv6 routing: supports static and OSPFv3 routing protocols

Гаранция:

99 месеца

L3 мрежови стандарти:

Static IP routing: provides manually configured routing for both IPv4 and IPv6 networks, Routing Information Protocol (RIP): provides RIPv1 and RIPv2 routing, OSPF: provides OSPFv2 for IPv4 routing and OSPFv3 for IPv6 routing

Управление:

IMC—Intelligent Management Center Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) SNMP Manager Out-of-band management (serial rs-232c or micro usb)

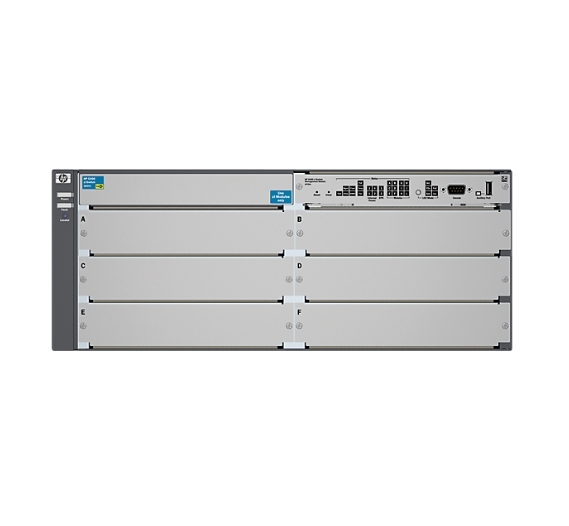

Свободни (10GB) слотове:

6 open module slot Supports a maximum of 144 autosensing 10/100/1000 ports or 144 SFP ports or 48 SFP+ ports or 48 HP Smart Rate Multi-Gigabit or 12 40GbE ports, or a combination

Routing:

Layer 3 Advanced

Капацитет за маршрутизиране/превключване, Gbps:

960 Gbps

Пропускателна способност, Mpps:

571.4 Mpps

Stackable:

Yes

Суич, тип:

Modular

Общ брой портове:

Памет (Flash, RAM):

Flash Memory: 16 MB, RAM: 4 GB DDR3 SODIMM

VLAN (брой, стандарти):

VLAN support and tagging: supports the IEEE 802.1Q standard and 2, 048 VLANs simultaneously IEEE 802.1v protocol VLANs: isolate select non-IPv4 protocols automatically into their own VLANs

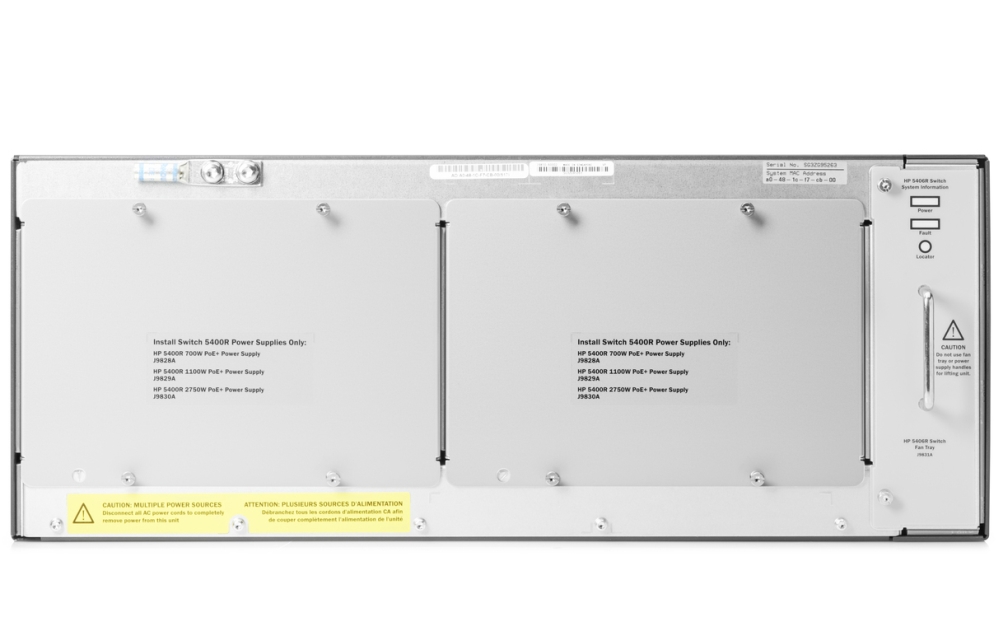

Захранване:

2 power supply slots - 1 minimum power supply required (ordered separately)

Основни портове, тип:

MAC адреси:

64000 MAC address table size

Fans:

1 fan tray slot (Includes: 1 x J9831A)

QoS:

Advanced classifier-based QoS, Traffic prioritization, Bandwidth shaping, Class of service (CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ

Power Over Ethernet (PoE):

Размери (Ш, Д, В), mm:

445 x 451 x 175

Uplink портове:

Опция за монтаж:

Rackmount, 4U Rack

Сигурност:

Switch CPU protection: provides automatic protection against malicious network traffic trying to shut down the switch Virus throttling: detects traffic patterns typical of WORM-type viruses

Описание

Комутатор Aruba 5406R zl2 Switch

Виж повече caret
