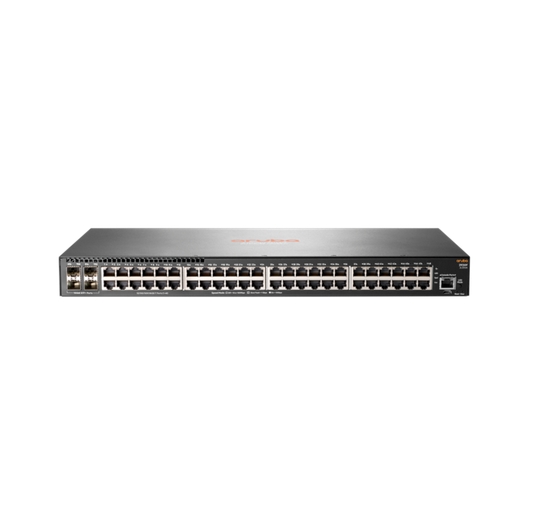

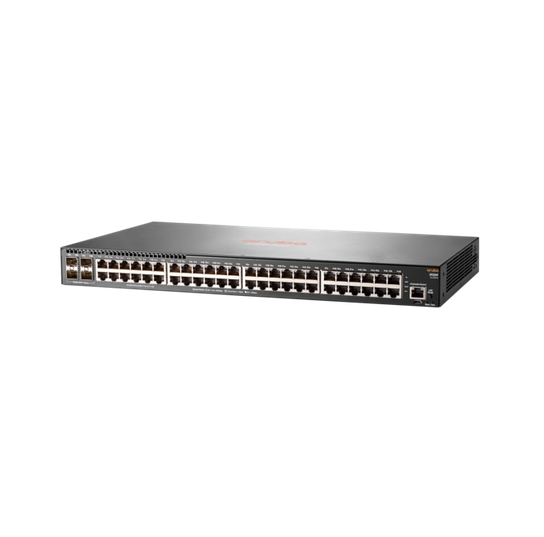

Name: Комутатор Aruba 2930F 48G 4SFP+ Swch
Brand: HPE
SKU: HPE-JL254A
Price: 8493.50000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Основни портове, тип:

48x10/100/1000Base-T

Управление:

Aruba AirWave Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)

Routing:

Layer 3 Advansed

Суич, тип:

Fixed Port

Захранване:

Internal

Капацитет за маршрутизиране/превключване, Gbps:

176 Gbps

Fans:

yes

IPv6 functionality:

IPv6 host, IPv6 routing, MLD snooping, IPv6 ACL/QoS, Dual stack (IPv4 and IPv6)

Размери (Ш, Д, В), mm:

443 x 246 x 44

L3 мрежови стандарти:

Static IP routing 256 static and 10000 RIP routes Routing Information Protocol (RIP) Provides RIPv1, RIPv2, and RIPng routing Access OSPF - Provide OSPFv2 and OSPFv3 protocols for routing between access and the next layer on the LAN.

Свободни (10GB) слотове:

Други:

1 dual-personality (RJ-45 or USB micro-B) serial console port

Power Over Ethernet (PoE):

Stackable:

VLAN (брой, стандарти):

Supports IEEE 802.1Q (4, 094 VLAN IDs) and 2K VLANs simultaneously, IEEE 802.1v protocol VLANs, Rapid Per-VLAN Spanning Tree (RPVST+), GVRP and MVRP, VxLAN, Jumbo packet support

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1AB, IEEE 802.1AX-2008, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1v, IEEE 802.1X, IEEE 802.1ap

Гаранция:

99 месеца

Общ брой портове:

Uplink портове:

4x10GE SFP

Пропускателна способност, Mpps:

112 Mpps

Памет (Flash, RAM):

Flash Memory: 4 GB eMMC RAM: 1 GB DDR3 SDRAM

MAC адреси:

32768 MAC addres table size

QoS:

Traffic prioritization (IEEE 802.1p) - Allows real-time traffic classification into eight priority levels mapped to eight queues Layer 4 prioritization - Enables prioritization based on TCP/UDP port numbers Class of Service (CoS) Rate limiting

Сигурност:

IEEE 802.1X, Web/MAC-based authentication, ACLs, Source-port filtering, RADIUS/TACACS+, Secure shell, SSL, Port security, MAC address lockout, Secure FTP, STP BPDU port protection, DHCP protection, Dynamic ARP protection, STP root guard, Private VLAN

Опция за монтаж:

Rackmount

Описание

Комутатор Aruba 2930F 48G 4SFP+ Swch
