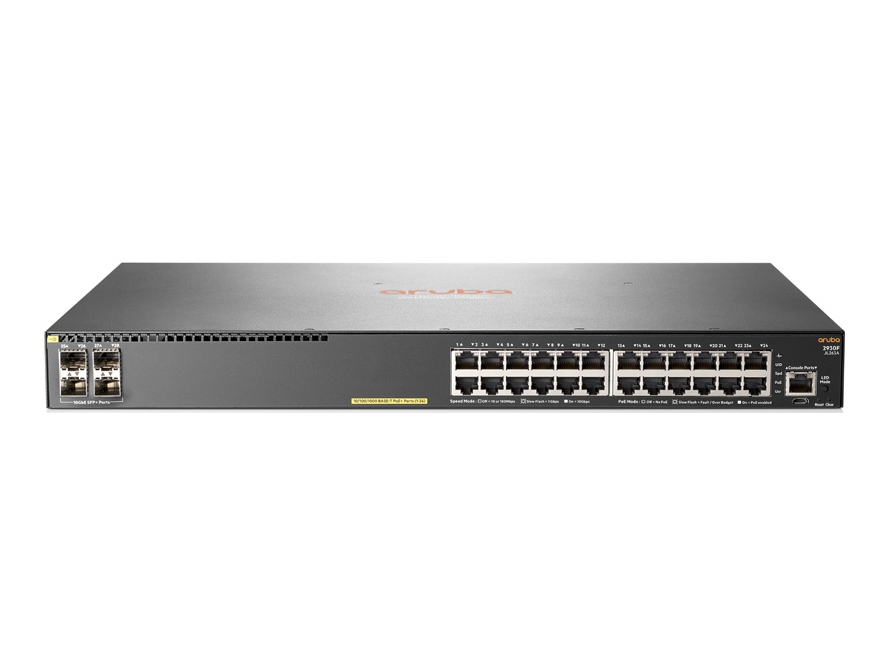

Комутатор Aruba 2930F 24G PoE+ 4SFP+ T Swch

Каталожен № на продукта: HPE-JL263A
komutator-aruba-2930f-24g-poe-4sfp-t-swch-hpe-jl263a
komutator-aruba-2930f-24g-poe-4sfp-t-swch-hpe-jl263a
0 ревюта | 0 въпроса

  • Размери (Ш, Д, В), mm 443 x 304 x 44
  • Пропускателна способност, Mpps 95.2 Mpps
  • VLAN (брой, стандарти) Supports IEEE 802.1Q (4,094 VLAN IDs) and 2K VLANs simultaneously, IEEE 802.1v protocol VLANs, Rapid Per-VLAN Spanning Tree (RPVST+), GVRP and MVRP, VxLAN, Jumbo packet support
  • Power Over Ethernet (PoE) IEEE 802.3af and IEEE 802.3at Pre-standard PoE support PoE power: 370 W PoE+
  • Суич, тип Fixed Port

6348.80 €
12417.17 лв.
Неналичен. Цената може да бъде различна, когато отново има наличност.
Добави в Любими
Поръчка по телефон Без формалности
komutator-aruba-2930f-24g-poe-4sfp-t-swch-hpe-jl263a
Комутатор Aruba 2930F 24G PoE+ 4SFP+ T Swch
6348.80 € 12417.17 лв.
Характеристики Описание Ревюта Въпроси и отговори
Характеристики
MAC адреси:
32768 MAC addres table size
Памет (Flash, RAM):
Flash Memory: 4 GB eMMC RAM: 1 GB DDR3 SDRAM
L2 мрежови стандарти:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1AB, IEEE 802.1AX-2008, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1v, IEEE 802.1X, IEEE 802.1ap
Свободни (10GB) слотове:
No
Основни портове, тип:
24x10/100/1000Base-T
Размери (Ш, Д, В), mm:
443 x 304 x 44
Общ брой портове:
28
Други:
1 dual-personality (RJ-45 or USB micro-B) serial console port
Опция за монтаж:
Rackmount
IPv6 functionality:
IPv6 host, IPv6 routing, MLD snooping, IPv6 ACL/QoS, Dual stack (IPv4 and IPv6)
Uplink портове:
4x10GE SFP
Пропускателна способност, Mpps:
95.2 Mpps
QoS:
Traffic prioritization (IEEE 802.1p) - Allows real-time traffic classification into eight priority levels mapped to eight queues Layer 4 prioritization - Enables prioritization based on TCP/UDP port numbers Class of Service (CoS) Rate limiting
Сигурност:
IEEE 802.1X, Web/MAC-based authentication, ACLs, Source-port filtering, RADIUS/TACACS+, Secure shell, SSL, Port security, MAC address lockout, Secure FTP, STP BPDU port protection, DHCP protection, Dynamic ARP protection, STP root guard, Private VLAN
VLAN (брой, стандарти):
Supports IEEE 802.1Q (4, 094 VLAN IDs) and 2K VLANs simultaneously, IEEE 802.1v protocol VLANs, Rapid Per-VLAN Spanning Tree (RPVST+), GVRP and MVRP, VxLAN, Jumbo packet support
Управление:
Aruba AirWave Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)
Routing:
Layer 3 Advansed
Захранване:
Internal
Гаранция:
99 месеца
Stackable:
No
Power Over Ethernet (PoE):
IEEE 802.3af and IEEE 802.3at Pre-standard PoE support PoE power: 370 W PoE+
Суич, тип:
Fixed Port
Fans:
yes
L3 мрежови стандарти:
Static IP routing 256 static and 10000 RIP routes Routing Information Protocol (RIP) Provides RIPv1, RIPv2, and RIPng routing Access OSPF - Provide OSPFv2 and OSPFv3 protocols for routing between access and the next layer on the LAN.
Капацитет за маршрутизиране/превключване, Gbps:
128 Gbps
Описание

Комутатор Aruba 2930F 24G PoE+ 4SFP+ T Swch
