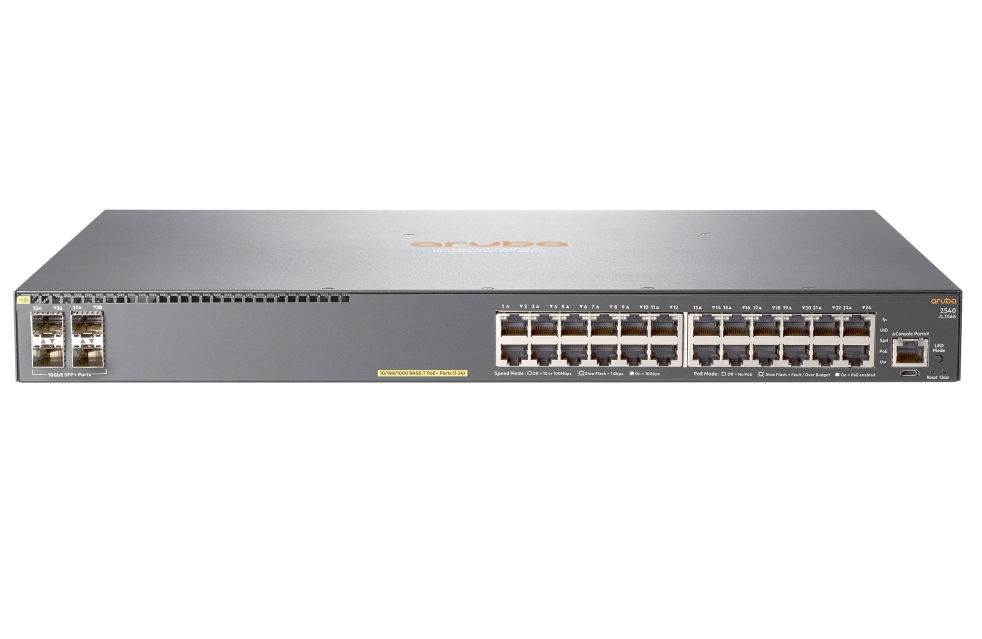

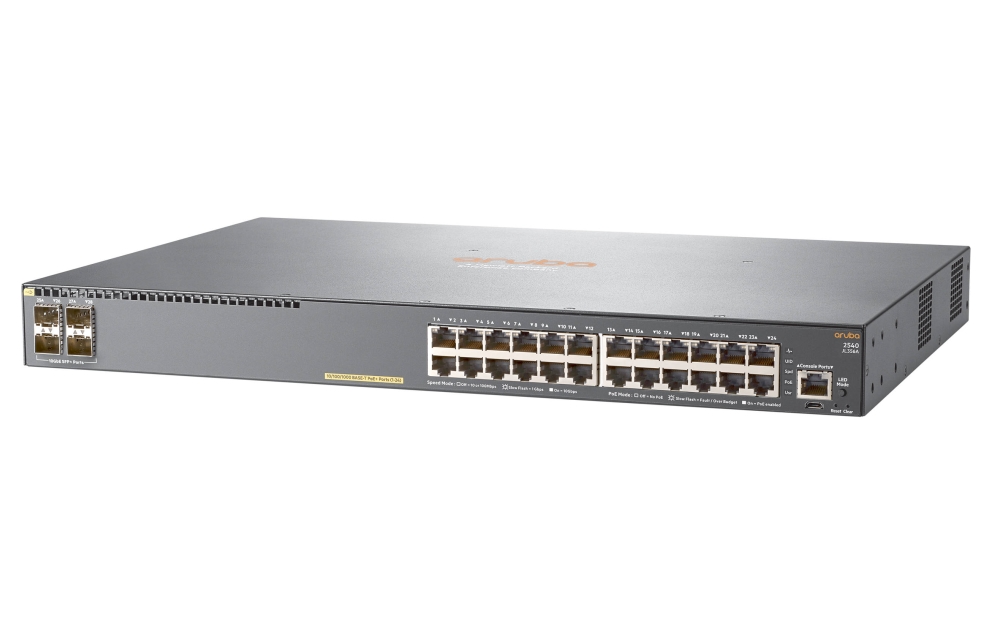

Комутатор Aruba 2540 24G PoE+ 4SFP+ Switch

Name: Комутатор Aruba 2540 24G PoE+ 4SFP+ Switch
Brand: HPE
SKU: HPE-JL356A
Price: 5630.20000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: HPE-JL356A

komutator-aruba-2540-24g-poe-4sfp-switch-hpe-jl356a

0 ревюта | 0 въпроса

Пропускателна способност, Mpps 95.2 Mpps
QoS Traffic prioritization (IEEE 802.1p) Layer 4 prioritization Class of service (CoS) - sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ Rate limiting
Fans Fanless design
Памет (Flash, RAM) RAM: 1 GB DDR3 SDRAM
L3 мрежови стандарти Static IProuting - Provides manually configured routing (includes ECMP capability) 256 static and 2000 RIP routes - Facilitate segregation of user data, without adding external hardware Routing Information Protocol (RIP) - RIPv1, RIPv2 and RIPng ro

Сравни

5630.20 лв.

2878.68 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Общ брой портове:

IPv6 functionality:

IPv6 host Dual stack (IPv4/IPv6) MLD snooping IPv6 ACL/QoS IPv6 routing Security

Свободни (10GB) слотове:

Други:

1 dual-personality (RJ-45 or USB micro-B) serial console port

Stackable:

MAC адреси:

16000 MAC addres table size

VLAN (брой, стандарти):

Supports IEEE 802.1Q (4094 VLAN IDs) and 512 VLANs simultaneously Jumbo packet support IEEE 802.1v protocol VLANs Rapid per-VLAN spanning tree (RPVST+) GVRP and MVRP

Капацитет за маршрутизиране/превключване, Gbps:

128 Gbps

Захранване:

Input voltage: 100-127/200-240 VAC Maximum power rating: 445 W

Пропускателна способност, Mpps:

95.2 Mpps

Fans:

Fanless design

Routing:

Layer 3 RIP

L3 мрежови стандарти:

Static IProuting - Provides manually configured routing (includes ECMP capability) 256 static and 2000 RIP routes - Facilitate segregation of user data, without adding external hardware Routing Information Protocol (RIP) - RIPv1, RIPv2 and RIPng ro

Суич, тип:

Fixed Port

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af/at, IEEE 802.1AX-2008, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q VLANs, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x Flow Control, IEEE 802.1v, IEEE 802.1ap, IEEE 802.1AB, IEEE 802.

Опция за монтаж:

Rackmount

Power Over Ethernet (PoE):

IEEE 802.3af and IEEE 802.3at PoE power: 370 W

Размери (Ш, Д, В), mm:

443 x 304 x 44

QoS:

Traffic prioritization (IEEE 802.1p) Layer 4 prioritization Class of service (CoS) - sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ Rate limiting

Uplink портове:

4x10GE SFP

Сигурност:

Multiple user authentication methods (IEEE 802.1X, Web/Mac-based authentication), Access control lists (ACLs), Source-port filtering, RADIUS/TACACS+, Secure shell, Secure Sockets Layer (SSL), Port security, Secure FTP, STP BPDU port protection

Памет (Flash, RAM):

RAM: 1 GB DDR3 SDRAM

Основни портове, тип:

24x10/100/1000Base-T

Гаранция:

99 месеца

Управление:

Aruba AirWave Network Management IMCїIntelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)

Описание

Комутатор Aruba 2540 24G PoE+ 4SFP+ Switch

Виж повече caret
