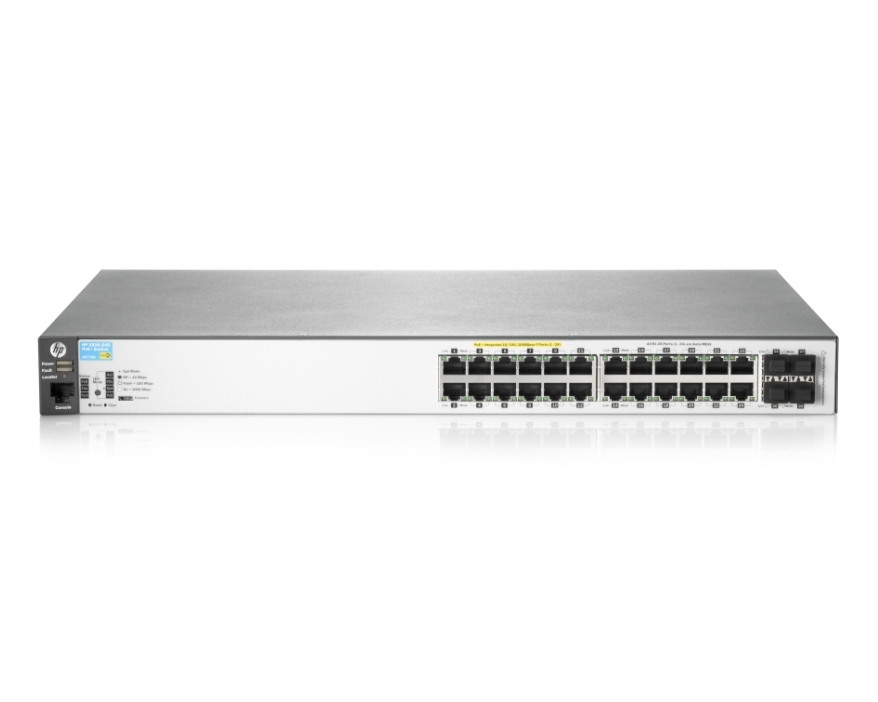

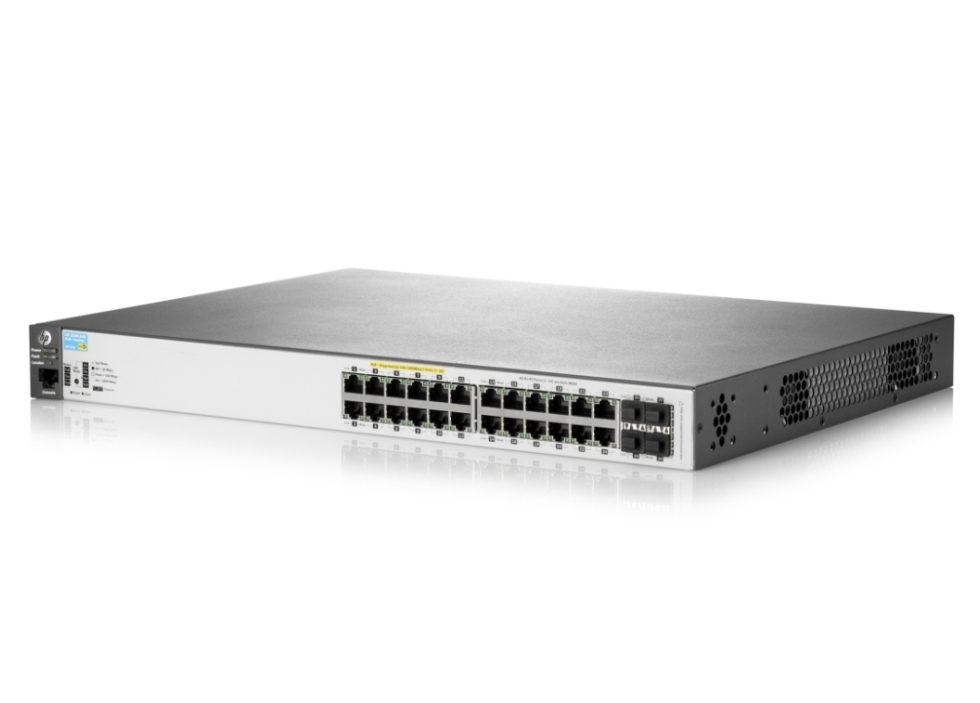

Name: Комутатор Aruba 2530 24G PoE+ Switch
Brand: HPE
SKU: HPE-J9773A
Price: 3272.00000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Свободни (10GB) слотове:

IPv6 functionality:

IPv6 host Dual stack (IPv4/IPv6) MLD snooping

Power Over Ethernet (PoE):

IEEE 802.3at and IEEE 802.3af PoE power: 195 W

Други:

1 dual-personality (RJ-45 or USB micro-B) serial console port

Сигурност:

Access control lists (ACLs) RADIUS/TACACS+ Source-port filtering SSL Port security IEEE 802.1X Web/MAC-based authentication Secure shell (SSHv2 client and server) STP BPDU port protection STP Root Guard Secure FTP Protected ports CLI

Опция за монтаж:

Rackmount

MAC адреси:

16000 MAC addres table size

L2 мрежови стандарти:

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q VLANs, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x Flow Control

Памет (Flash, RAM):

Flash Memory: 256 MB, RAM: 128 MB DDR3 DIMM

Суич, тип:

Fixed Port

Основни портове, тип:

24x10/100/1000Base-T

VLAN (брой, стандарти):

VLANs: provide support for 512 VLANs and 4, 094 VLAN IDs GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs IEEE 802.1Q VLANs

Uplink портове:

4xSFP

Размери (Ш, Д, В), mm:

443 x 330 x 45

Routing:

Layer 2 Only

Общ брой портове:

Капацитет за маршрутизиране/превключване, Gbps:

56 Gbps

Гаранция:

99 месеца

Fans:

Variable-speed fans help reduce power consumption.

Stackable:

Virtual stacking: single IP address management of up to 16 switches

Захранване:

Input voltage: 100-127/200-240 VAC Maximum power rating: 247 W

Управление:

Web graphical user interface (GUI), Command-line (CLI), Simple Network Management Protocol (SNMPv1/v2c/v3), sFlow, IEEE 802.1AB Link Layer Discovery Protocol (LLDP), Port mirroring, RMON (remote monitoring), Friendly port names, Dual flash images

QoS:

Traffic prioritization (IEEE 802.1p) Simplified QoS configuration: Port-based, VLAN-based Class of Service (CoS) Rate limiting Layer 4 prioritization Flow control

Пропускателна способност, Mpps:

41.6 Mpps

L3 мрежови стандарти:

Описание

Комутатор Aruba 2530 24G PoE+ Switch

Виж повече caret
