Дънна платка Asrock Z490M-ITX/ac Asrock Z490M-ITX/ ... ac Виж още

Name: Дънна платка Asrock Z490M-ITX/ac Asrock Z490M-ITX/ac
Brand: ASROCK
SKU: ASROCK-90-MXBC00-A0UAYZ
Price: 311.90000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: ASROCK-90-MXBC00-A0UAYZ

danna-platka-asrock-z490m-itx-ac-asrock-90-mxbc00-a0uayz

0 ревюта | 0 въпроса

Серия ITX/ac
Чипсет Intel Z490
Специални функции ASRock Super Alloy, ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop
Конектори 1x RGB LED Header, 1x Addressable LED Header, 1x CPU Fan Conn.(4-pin), 1? Chassis Fan Conn.(4-pin), 1x Chassis/Water Pump Fan Conn.(4-pin), 1x 24pin ATX and 1x 8pin 12V Power Conn., 1x Front Panel Audio Conn., 1x USB 2.0 Header, 1x USB 3.2 Gen1 Heade
Памет, слотове 2 x DDR4 DIMM Slots Dual Channel DDR4 Memory Technology Max. capacity of system memory: 64GB

Сравни

311.90 лв.

159.47 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Ревюта Въпроси и отговори

Характеристики

Серия:

ITX/ac

Други:

Certificate: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)

Чипсет:

Intel Z490

BIOS:

128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU, DRAM, PCH 1.05V, VCCIO, VCCSA Voltage Multi-adjustment

Форм-фактор:

Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm

Специални функции:

ASRock Super Alloy, ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop

Интерфейс:

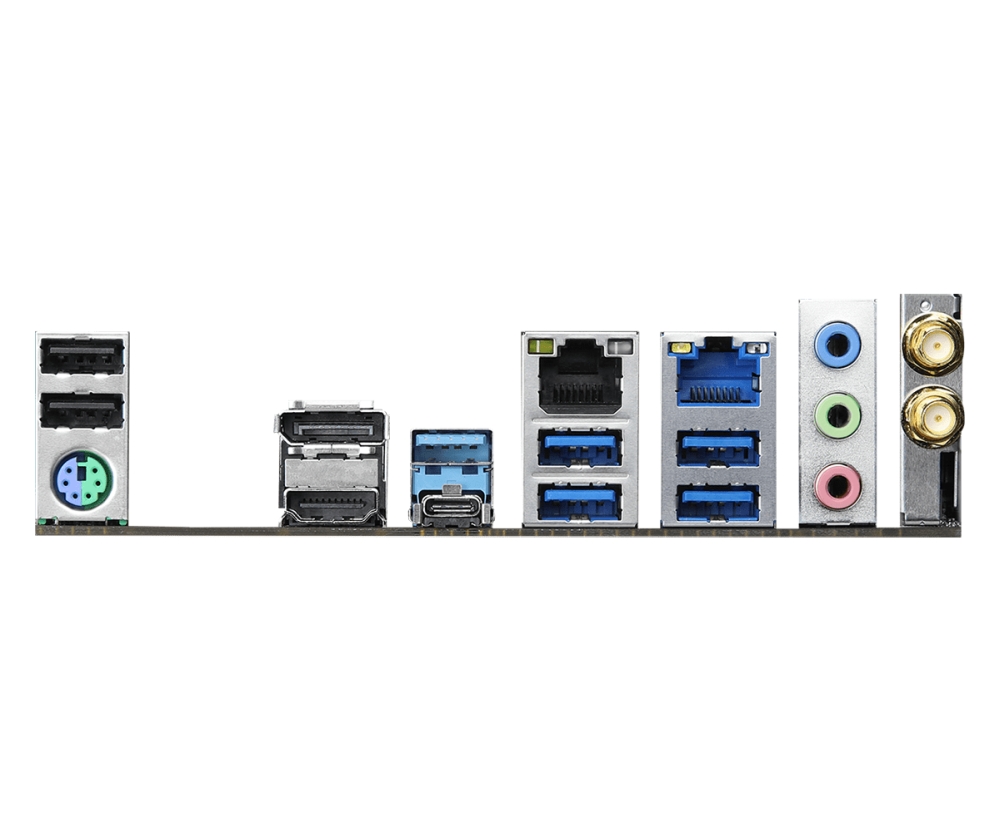

2xAntenna Ports, 1xPS/2 Mouse/Keyboard Port, 1xHDMI, 1xDisplayPort 1.4, 2xUSB 2.0, 4xUSB 3.2 Gen2 Type-A Ports(10 Gb/s), 1xUSB 3.2 Gen1 Type-A, 1xUSB 3.2 Gen1 Type-C, 2xRJ-45 LAN Ports with LED, HD AudioJacks: Line in/Front Speaker/Microphone

Слотове:

1x PCI Express 3.0 x16 Slot (PCIE1: x16 mode) 1x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)

Конектори:

1x RGB LED Header, 1x Addressable LED Header, 1x CPU Fan Conn.(4-pin), 1? Chassis Fan Conn.(4-pin), 1x Chassis/Water Pump Fan Conn.(4-pin), 1x 24pin ATX and 1x 8pin 12V Power Conn., 1x Front Panel Audio Conn., 1x USB 2.0 Header, 1x USB 3.2 Gen1 Heade

Мрежа:

1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V), Wake-On-LAN, PXE

Процесор:

Supports 10th Gen Intel Core Processors (Socket 1200) Digi Power design 8 Power Phase design Supports Intel Turbo Boost Max 3.0 Technology, Intel K-Series unlocked CPUs, ASRock BCLK Full-range Overclocking

M.2 слот:

1x Ultra M.2 Socket(M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCIe module up to Gen3 x4(32 Gb/s), 1x Ultra M.2 Socket(M2_2), supports M Key type 2280 M.2 PCIe module up to Gen3 x4 (32 Gb/s)

Аудио:

7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec), Premium Blu-ray Audio support, Supports Surge Protection, PCB Isolate Shielding, Individual PCB Layers for R/L Audio Channel, Nahimic Audio

Операционна система:

Microsoft Windows 10 64-bit

Памет, слотове:

2 x DDR4 DIMM Slots Dual Channel DDR4 Memory Technology Max. capacity of system memory: 64GB

Софтуер:

ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC

Гаранция:

36 месеца
