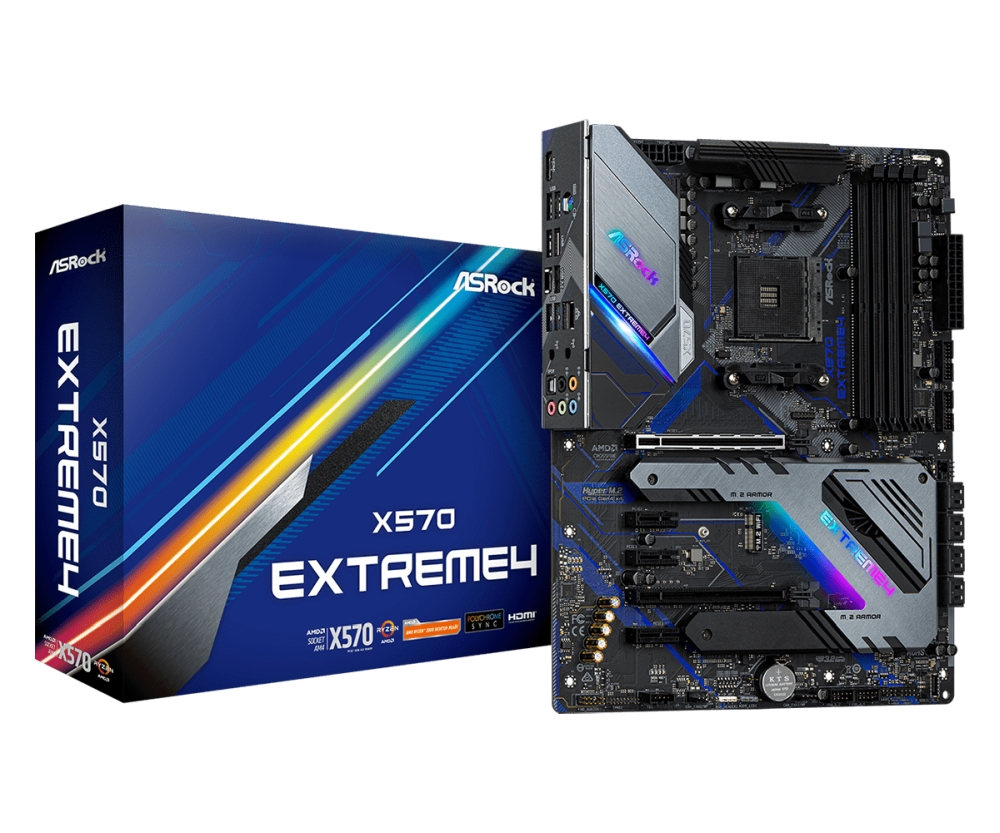

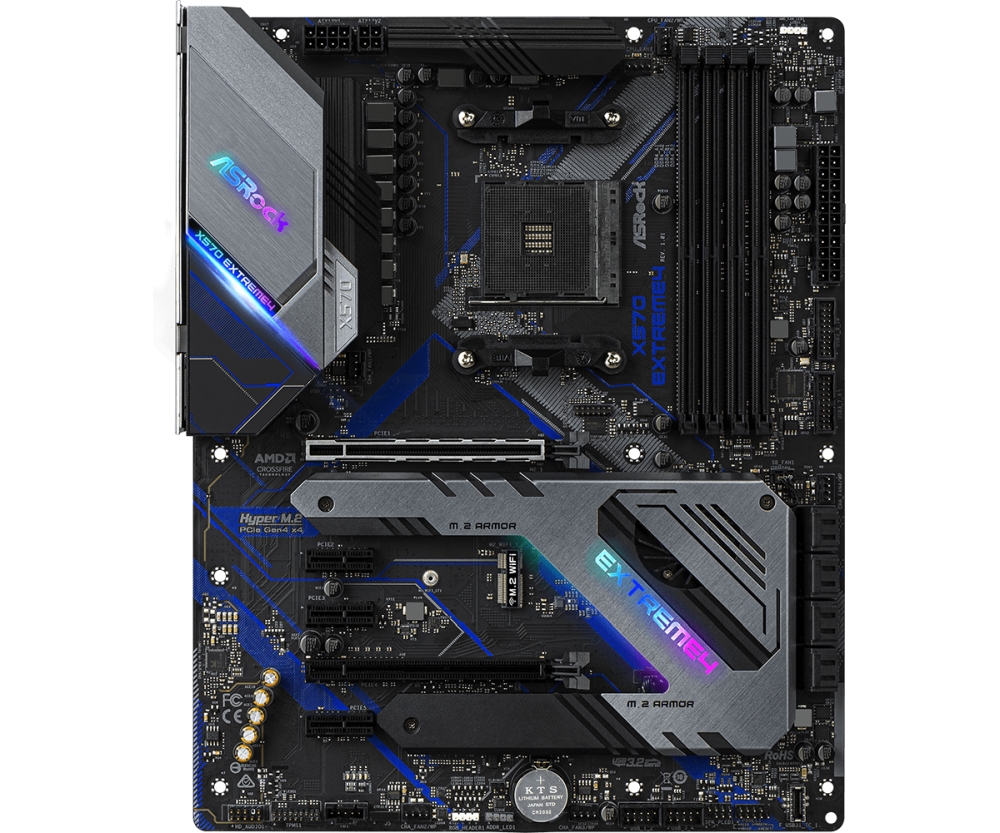

Дънна платка Asrock X570 Extreme 4

Name: Дънна платка Asrock X570 Extreme 4
Brand: ASROCK
SKU: ASROCK-90-MXBAP0-A0UAYZ
Price: 396.77999999999997271516 BGN
Availability: InStock
Rating: 0 (0 reviews)

Каталожен № на продукта: ASROCK-90-MXBAP0-A0UAYZ

danna-platka-asrock-x570-extreme-4-asrock-90-mxbap0-a0uayz

0 ревюта | 0 въпроса

Слотове AMD Ryzen series CPUs (Matisse): 2 x PCI Express 4.0 x16 Slots, AMD Ryzen series CPUs (Pinnacle Ridge): 2 x PCI Express 3.0 x16 Slots, AMD Ryzen series CPUs (Picasso): 2 x PCI Express 3.0 x16 Slots
Безжична мрежа -
Форм-фактор ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, 2oz Copper PCB
Специални функции ASRock USB 3.2 Gen2, ASRock Super Alloy, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2 , ASRock Ultra USB Power, ASRock POST Status Checker, ASRock Full Spike Protection, ASRock Live Update & APP Shop
Серия Extreme

Сравни

476.14 лв.

(-17%)

243.44 €

396.78 лв.

202.87 €

Неналичен. Цената може да бъде различна, когато отново има наличност.

Добави в Любими

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Памет, слотове:

4 x DDR4 DIMM Slots, Max. capacity of system memory: 128GB, Dual Channel DDR4 Memory Technology, AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory

Слотове:

AMD Ryzen series CPUs (Matisse): 2 x PCI Express 4.0 x16 Slots, AMD Ryzen series CPUs (Pinnacle Ridge): 2 x PCI Express 3.0 x16 Slots, AMD Ryzen series CPUs (Picasso): 2 x PCI Express 3.0 x16 Slots

Аудио:

7.1 CH HD Audio with Content Protection, Premium Blu-ray Audio support, Supports Surge Protection, NE5532 Premium Headset Amplifier for Front Panel Audio Connector, Direct Drive Technology, PCB isolate shielding, Pure Power-In

Конектори:

1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x AMD Fan LED Header, 1 x RGB LED Header, 1 x Addressable LED Header, 1 x CPU Fan Connector (4-pin), 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) and more.

BIOS:

256Mb AMI UEFI Legal BIOS with GUI support, ACPI 5.1 compliance wake up events, SMBIOS 2.3 support, CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment

Софтуер:

ASRock Polychrome SYNC, ASRock XFast LAN

Гаранция:

36 месеца

Процесор:

AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors

M.2 слот:

1xHyper M.2 (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express up to Gen4x4 (64 Gb/s) or Gen3x4 (32 Gb/s) 1xHyper M.2 (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s and M.2 PCI Express up to Gen4x4 (64 Gb/s)

Операционна система:

Microsoft Windows 10 64-bit

Чипсет:

AMD X570

Мрежа:

Gigabit LAN 10/100/1000 Mb/s, GigaLAN Intel I211AT, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE

Безжична мрежа:

Форм-фактор:

ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, 2oz Copper PCB

Интерфейс:

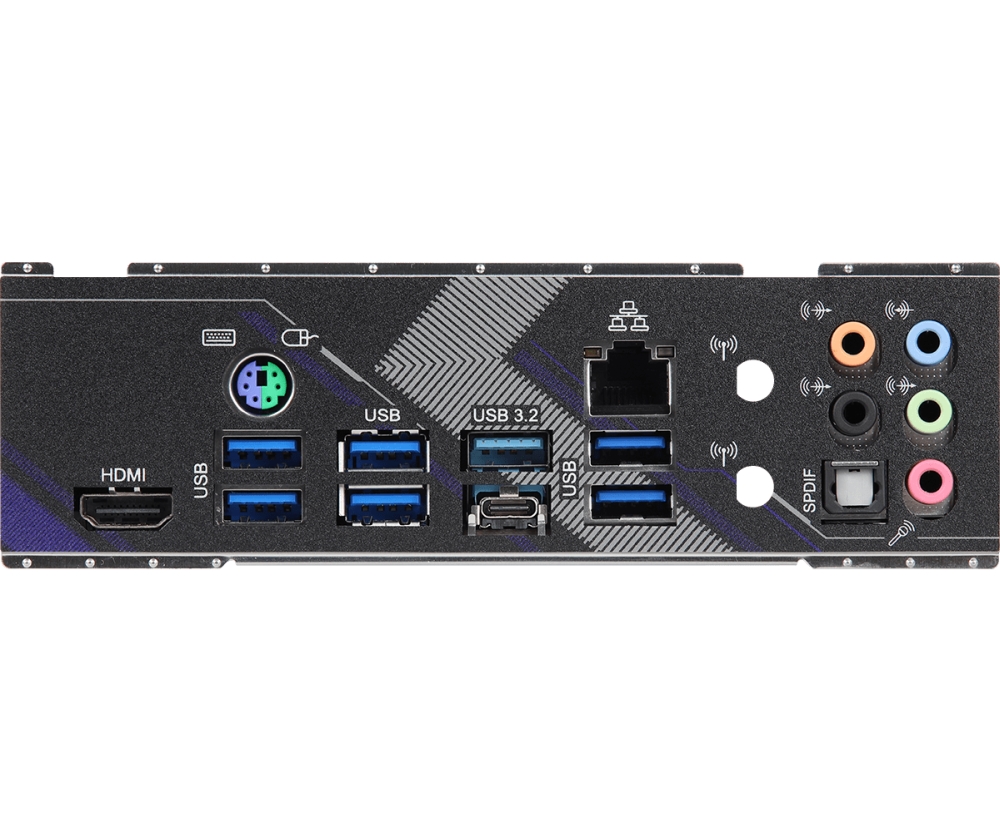

2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 1 x USB 3.2 Gen2 Type-A Port, 1 x USB 3.2 Gen2 Type-C Port, 6 x USB 3.2 Gen1 Ports, 1 x RJ-45 LAN Port

Специални функции:

ASRock USB 3.2 Gen2, ASRock Super Alloy, ASRock Steel Slot Gen4, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2 , ASRock Ultra USB Power, ASRock POST Status Checker, ASRock Full Spike Protection, ASRock Live Update &amp APP Shop

Серия:

Extreme

Описание

Дънна платка Asrock X570 Extreme 4
