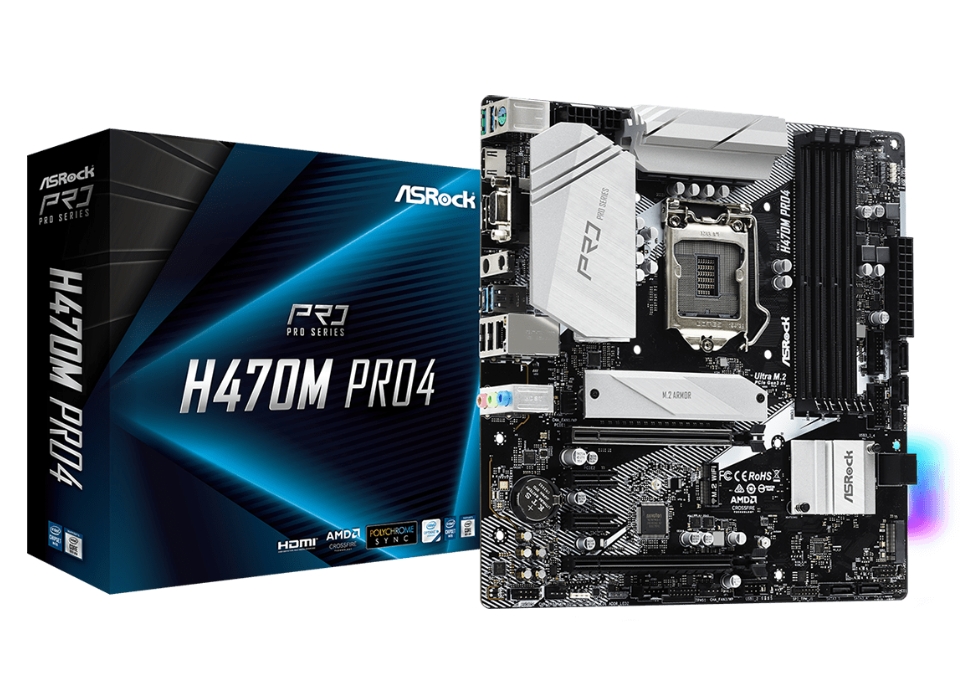

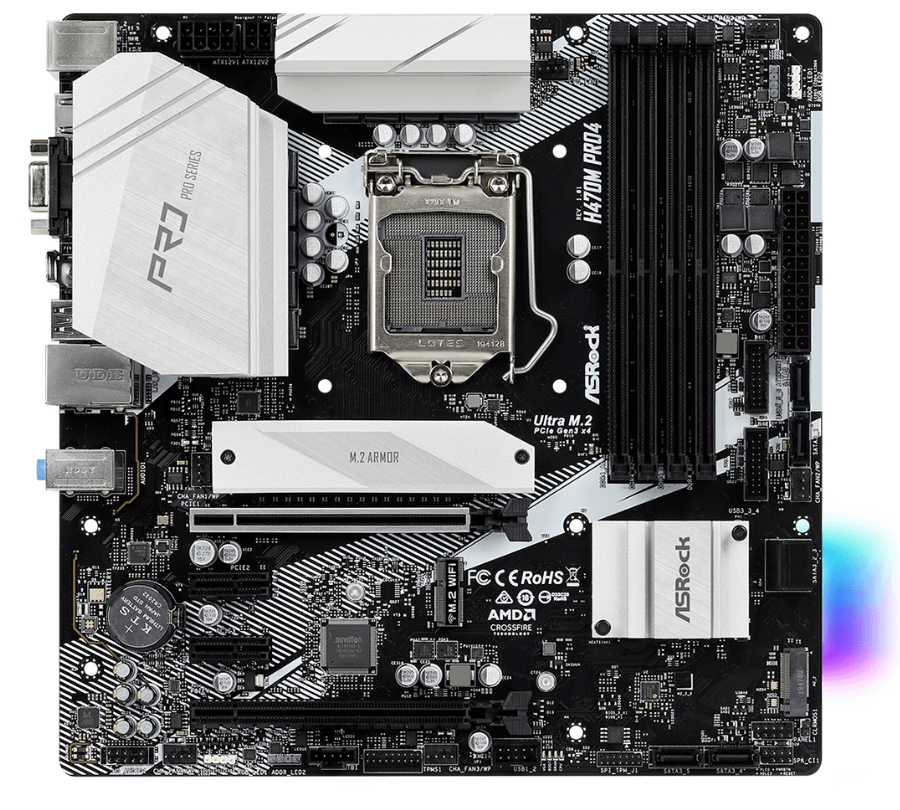

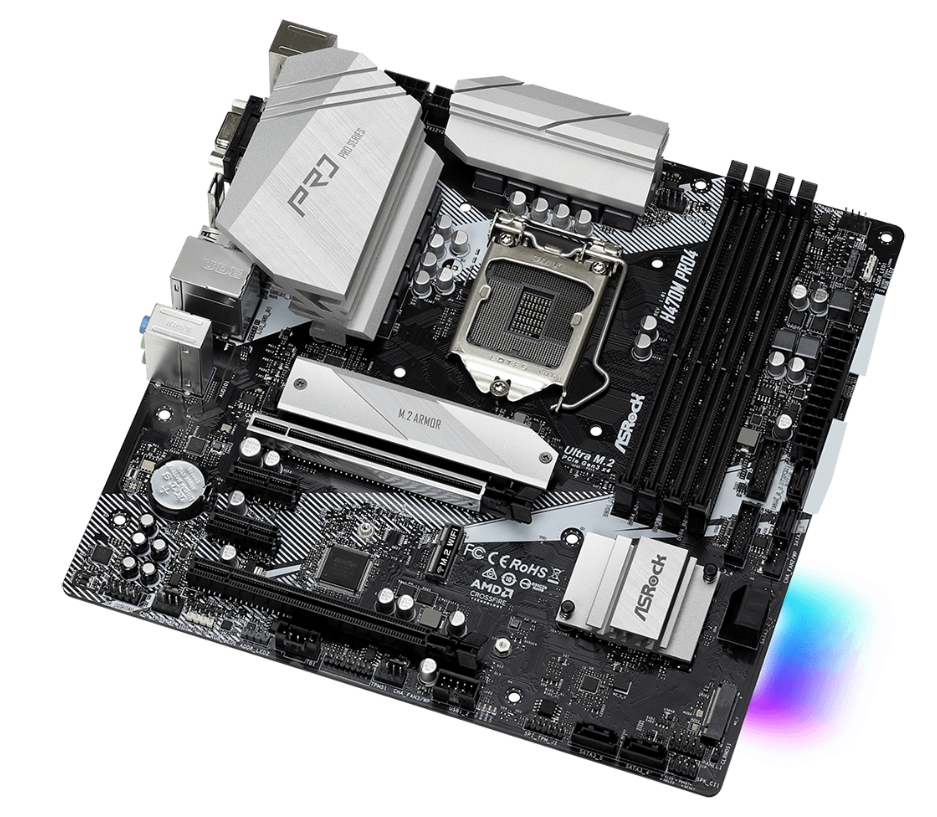

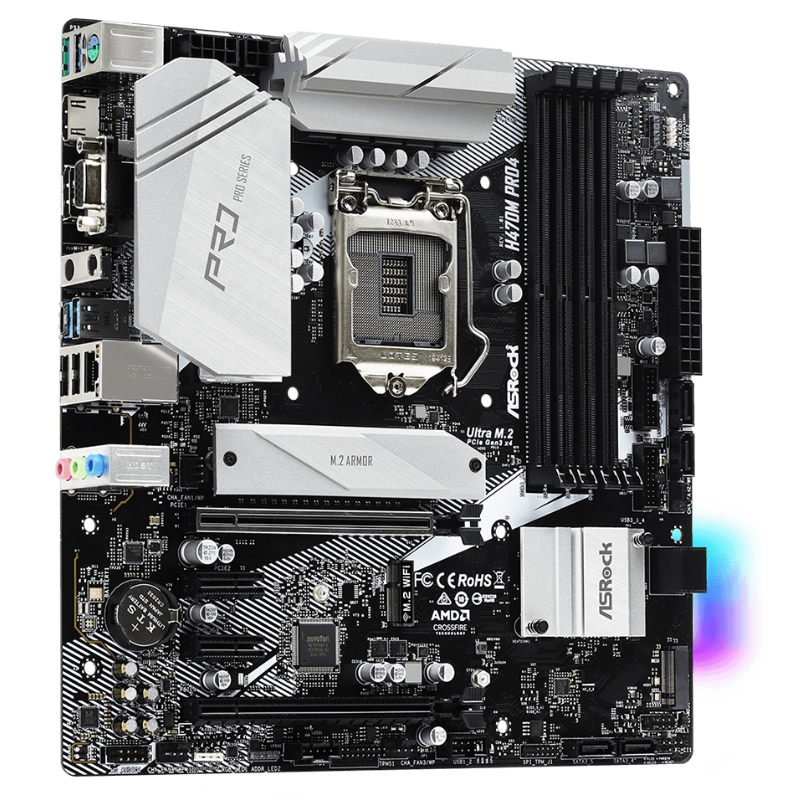

Name: Дънна платка Asrock H470M PRO4
Brand: ASROCK
SKU: ASROCK-90-MXBCF0-A0UAYZ
Price: 206.50000000000000000000 BGN
Availability: InStock
Rating: 0 (0 reviews)

Характеристики Описание Ревюта Въпроси и отговори

Характеристики

Серия:

PRO4

Интерфейс:

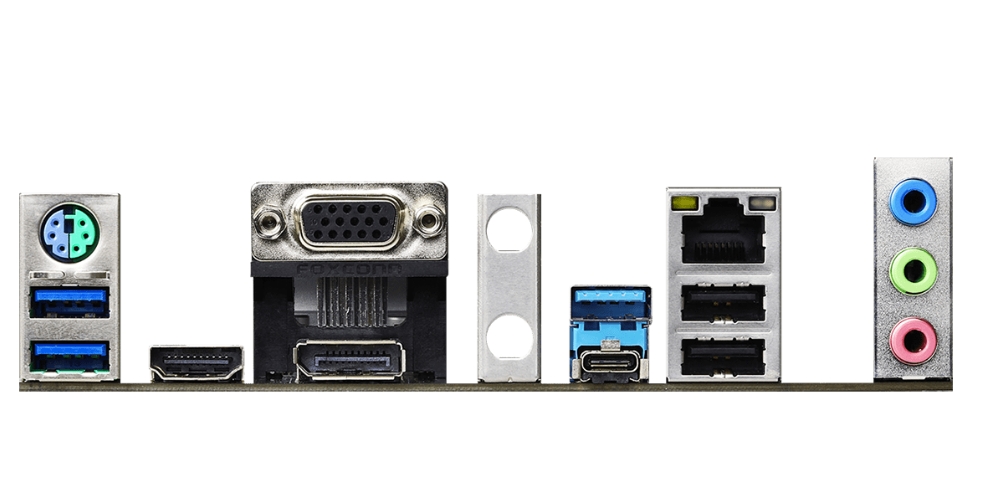

1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 2.0 Ports 1 x USB 3.2 Gen2 Type-A Port 1 x USB 3.2 Gen2 Type-C Port 2 x USB 3.2 Gen1 Ports 1 x RJ-45 LAN Port with LED.

Форм-фактор:

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Процесор:

Intel 1200

Операционна система:

Microsoft Windows 10 64-bit

BIOS:

128Mb AMI UEFI Legal BIOS with multilingual GUI support ACPI 6.0 Compliant wake up events SMBIOS 2.7 Support CPU Core/Cache, GT, DRAM, VPPM, PCH, VCCSA, VCCSFR Voltage Multi-adjustment.

Памет, слотове:

4 x DDR4 DIMM Slots Max. capacity of system memory: 128GB Dual Channel DDR4 Memory Technology Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory Supports ECC UDIMM memory modules (operate in non-ECC mode)

Аудио:

7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec) Premium Blu-ray Audio support Supports Surge Protection PCB Isolate Shielding Individual PCB Layers for R/L Audio Channel Nahimic Audio.

Други:

ASRock Live Update &amp APP Shop

M.2 слот:

1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s).

Чипсет:

Intel H470

Мрежа:

Gigabit LAN 10/100/1000 Mb/s Giga PHY Intel I219V Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE.

Слотове:

2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16 (PCIE1) dual at x16 (PCIE1) / x4 (PCIE4)) 2 x PCI Express 3.0 x1 Slots Supports AMD Quad CrossFireX and CrossFireX 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi.

Софтуер:

ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC ASRock XFast LAN.

Специални функции:

ASRock USB 3.2 Gen2 ASRock Super Alloy ASRock Intel 4-Layer Memory POOL ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN

Описание

Дънна платка Asrock H470M PRO4
